Frigidaire 30-4989-00-01 Parts List

Popular Searches: (Click to search)    bottom  broiler  burner  channel  control  door  drawer  dual  glide  hinge  igniter  module  pan  regulator  safety  screw  switch  utility  valve


Select a Diagram

02 - Backguard

03 - Cooktop Parts

04 - Drawer Parts

05 - Burner, Manifold And Gas Control

06 - Door Parts

07 - Body Parts

Select Diagram ... 02 - Backguard 03 - Cooktop Parts 04 - Drawer Parts 05 - Burner, Manifold And Gas Control 06 - Door Parts 07 - Body Parts

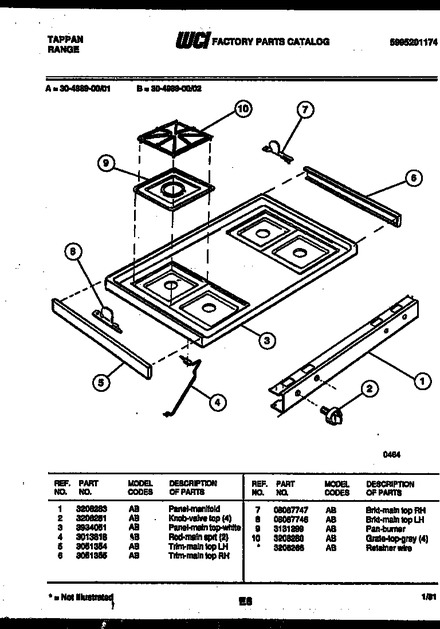

03 - Cooktop Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	3206283	Panel-manifold	$96.30 Special Order
2	316029100	Knob - Valve Top (4)   (Replaces: 3206281)	$34.00 Special Order
3	3934051	Panel - Main Top - White	$128.80 Special Order
4	3013818	Rod - Main Sprt (2)	Call for Availability
5	3051354	Trim, Main Top, Lh	$15.60 Special Order
6	3051355	Trim, Main Top (rh)	Call for Availability
7	08067747	Brkt, Main Top (rh)	$9.00 Special Order
8	08067746	Brkt, Main Top (lh)	$7.00 Special Order
9	316011403	Pan Burner (Replaces: 3131299)	$37.70  In-Stock Retail: $36.71
10	3206280	Grate-top-gray (4)	Call for Availability
*33552	3206266	Retainer Wire	$10.20 Special Order
