Maytag CTL1511GEW Parts List

Popular Searches: (Click to search) assy cap capacitor condenser control defrost drain drier end evaporator fan knob lead motor overload pan relay run seal wheel

Select a Diagram

01 - Compressor (ctl1511gew Rev.10-16)

02 - Compressor (ctl1511gew Rev.17)

03 - Compressor (ctl1511gew Rev.18)

04 - Compressor (ctl1511gew Rev.19)

05 - Compressor (ctl1511gew Rev.20)

06 - Freezer Compartment

07 - Freezer Inner Door

08 - Freezer Outer Door

09 - Fresh Food Compartment (ctl Rev.10-14)

10 - Fresh Food Compartment (ctl Rev.15)

11 - Fresh Food Inner Door

12 - Fresh Food Outer Door

13 - Wiring Information

10 - Fresh Food Compartment (ctl Rev.15) | Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
1	65275-81	Screw (Series: 15)	$5.40 Special Order

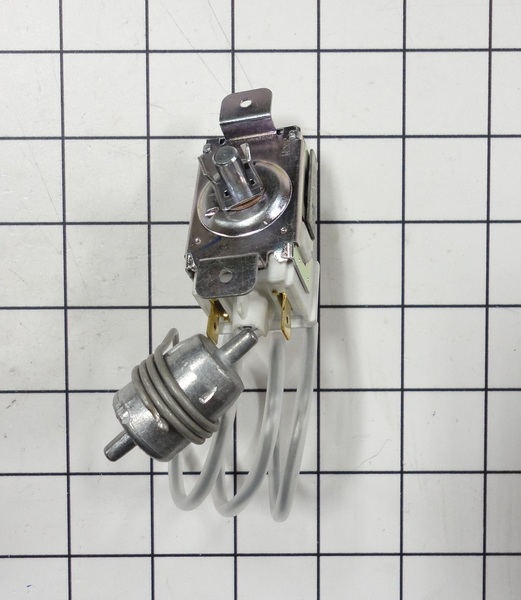

	61004870	Control Assy., Temperature (Series: 15) (Replaces: 61005629 61005789 61005789)	$18.80 Special Order
2	405007-1	Screw (Series: 15)	$0.40 Special Order
	WP68233-2	Timer, Defrost (Series: 15) (Replaces: 68233-2)	$134.50 Special Order
3	61001977	Seal, Drain (Series: 15)	Call for Availability
4	61004946	Housing, Control (Series: 15)	$15.80 Special Order
	4360320	Screw (Series: 15)	$4.40 Special Order
5	61003861	Foil, Heat Shield (Series: 15)	$0.60 Special Order
6	WPW10119935	Receptacle, Bulb (Series: 15) (Replaces: 61005604)	$64.90 Special Order
7	W11679940	Bulb, Light (Series: 15)	$7.20 In-Stock Retail: $6.99
8	61006075	Switch, Light (Series: 21)	$27.50 Special Order
	W11384469	Switch, Light (Series: 15) (Replaces: WP1118894 61003026)	$22.90 In-Stock Retail: $22.28
9	61002117	Clip, Receptacle (Series: 15)	$4.40 Special Order
10	WP61006074	Knob, Control (f.f.) (Series: 15) (Replaces: 61006072 61001947)	$35.30 In-Stock Retail: $34.41
11	12001838	Damper/insulation Kit (Series: 15)	$37.50 Special Order
12	61001933	Pan, Crisper (Series: 15)	Call for Availability
13	61001950	Shelf (Series: 15)	Call for Availability
14	61004887	Rail, Crisper Pan (rt) (Series: 15)	$19.00 Special Order
	61004886	Rail, Crisper Pan (lt) (Series: 15)	$11.30 Special Order
	WP489478	Screw (Series: 15) (Replaces: 400017-1)	$4.80 In-Stock Retail: $4.59
15	12001442	Kit, Crisper Shelf (w/rail) (Series: 15)	Call for Availability
16	61001961	Trim, Glass (Series: 15)	Call for Availability
NI	61002212	Wire Harness, Controls (Series: 15)	$21.40 Special Order
