Frigidaire FGDS3075KBA Parts List

Popular Searches: (Click to search)    block  door  hex  kit  oven  screw  terminal  top  wash  0  14k  assy  black  burner  ignitor  mtg  orifice  probe  sealed  temp


Select a Diagram

03 - Backguard

05 - Burner

07 - Body

09 - Top/drawer

11 - Door

01 - Cover

Select Diagram ... 03 - Backguard 05 - Burner 07 - Body 09 - Top/drawer 11 - Door 01 - Cover

03 - Backguard   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
F19	318922140	Panel Assembly,control ,black ,w/overlay	$250.10 Special Order

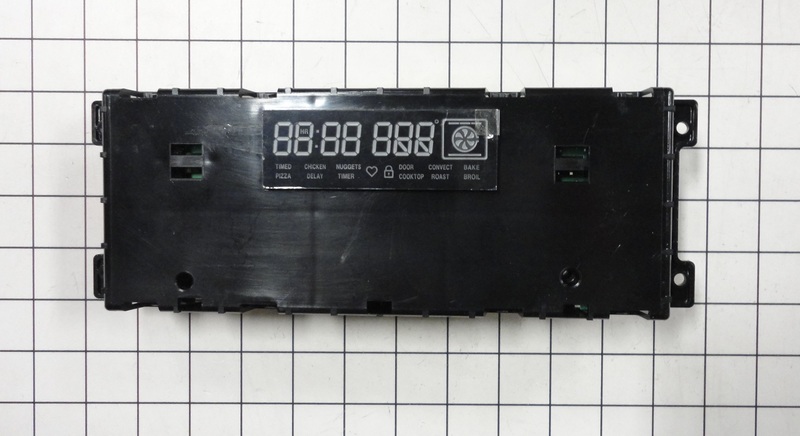

F20	316462864	Controller,electronic ,es530	$281.40 Special Order
23	318921300	Bracket,control Mtg ,(2)	Call for Availability
24	318913101	Trim,vent ,black ,upper	Call for Availability
30	318928500	Bracket,control Panel ,rear ,(2)	$11.00 Special Order
31	316564411	Knob,control ,stainless	$66.10 Special Order
40	318912905	Panel,service ,black	$187.10 Special Order
FNI	318224861	Harness,wiring ,timer	Call for Availability
NI	08016432	Screw,truss Head,8-18 X 0.375	$1.60 Special Order
	5304454881	Screw,no.8-18 X 3/8	$1.60 Special Order
	5304453707	Screw,8-18 X 1/2	$10.80  In-Stock Retail: $10.49
	5304436875	Screw,8-18 X 1/2,black	$9.80  In-Stock Retail: $9.49
