Frigidaire 30-4952-00-05 Parts List

Popular Searches: (Click to search) bracket brkt broiler burner drawer dual front glide ignitor illustrated mtg nick oven rack rear regulator safety screw top valve

Select a Diagram

02 - Backguard

03 - Burner

04 - Body

05 - Top/drawer

06 - Door

01 - Cover

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
1	316011501	Drawer-utility	$84.50 Special Order
2	3131975	Shield-panel	Call for Availability
4	316056205	Panel-drawer-white	Call for Availability
	08067785	Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)	Call for Availability
5	3131387	Fastener-spacer, Push-in Nut, Nylon	$3.70 Special Order
7	3051163	Glide,drawer ,rear	$5.12 In-Stock Retail: $12.79
16	5303271892	Gusset-top Mtg, Lh (not Illustrated)	$11.10 Special Order
	5303301546	Main Top, White	$200.70 Special Order
	5303271891	Gusset-top Mtg, Rh (not Illustrated)	$3.60 Special Order
18	5303273063	Hinge-main Top (lh)	Call for Availability
	5303273062	Hinge-main Top (rh)	$19.90 Special Order
19	A316011400	Pan-burner, (4) (Replaces: 316011400)	$21.60 Special Order
20	316050400	Grate, (4)	$55.60 Special Order
21	316035103	Trim Ring, Burner, Dark Grey	$30.90 Special Order

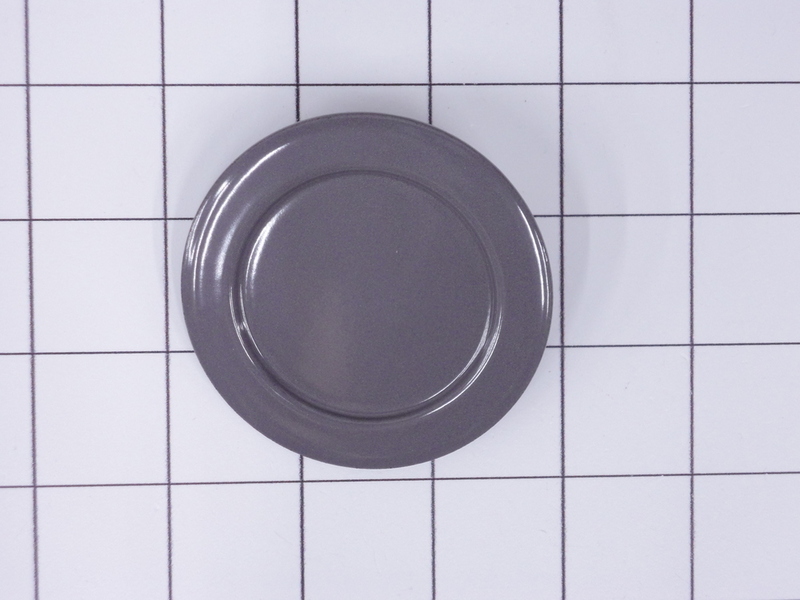

22	316010903	Cap-burner, Grey, (4)	$83.60 Special Order
39	316019506	Handle-drawer, White	$20.50 Special Order
44	3131903	Bumper	$37.50 Special Order
60	5303281651	Screw-drawer Handle, 8 Truss Head, 10-16 X 1/2	$4.20 Special Order
*68366	3203618	Rivet-pop, Waring-plate	$4.70 Special Order
*68367	5303281584	Screw, Truss Head, 8-18 X 1/2	$6.70 Special Order
*68368	5303288567	Screw, 8-18 X 3/8, (4)	$1.60 Special Order
*68369	5303288574	Screw, Truss Head, 8-10 X 3/8	$5.50 Special Order
