Maytag CSD2725ARB Parts List

Popular Searches: (Click to search)    115v  assy  auger  closer  door  drier  evaporator  fountain  hinge  ice  kit  lower  maker  motor  natural  pin  screw  valve  water  yoke


Select a Diagram

01 - Compressor

02 - Controls

03 - Fountain

04 - Freezer Compartment

05 - Freezer Inner Door

06 - Freezer Outer Door

07 - Fresh Food Inner Door

08 - Fresh Food Outer Door

09 - Ice Bin (rev 10)

10 - Ice Bin (rev 11)

11 - Ice Maker

12 - Shelves & Accessories

13 - Wiring Information

Select Diagram ... 01 - Compressor 02 - Controls 03 - Fountain 04 - Freezer Compartment 05 - Freezer Inner Door 06 - Freezer Outer Door 07 - Fresh Food Inner Door 08 - Fresh Food Outer Door 09 - Ice Bin (rev 10) 10 - Ice Bin (rev 11) 11 - Ice Maker 12 - Shelves & Accessories 13 - Wiring Information

03 - Fountain   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	12001762	Kit, Fountain Hsg (blk-27`/cd) (Series: 10)	Call for Availability
	415013-35	Screw (Series: 10)	$8.20  In-Stock Retail: $7.99
	61003307	Screw (Series: 10)	$4.40 Special Order
2	61003286	Tape (1ft.) (Series: 10)	$5.60 Special Order
3	61003300	Grommet, Water Tube (Series: 10)	$4.40 Special Order
4	61003304	Foil, Ftn. Back (Series: 10)	$4.50 Special Order
5	61003125	Heater, Fountain (Series: 10)	$22.10 Special Order
6	415013-35	Screw (Series: 10)	$8.20  In-Stock Retail: $7.99
	Y00000000	See Note (ice Chute Not Available Must Order Fountain Housing Kit 12001760 Wht, 12001761 Alm, Or 12001762 Blk) (Series: 10)	Call for Availability
7	12001991	Kit, Fountain Ice Door (115v)	$149.10 Special Order
8	Y00000000	See Note (strike Not Available Must Order Ice Door Kit 12001991) (Series: 10)	Call for Availability
9	WP9705445	Pin, Roll (Series: 10) (Replaces: 61003303)	$4.80 Special Order
10	61004388	Spring, Ftn. Return (Series: 10)	$4.80  In-Stock Retail: $4.59
11	415041-35	Screw (Series: 10)	$4.40 Special Order
	WP61005520	Switch, Limit (Series: 10) (Replaces: 61003124)	Call for Availability

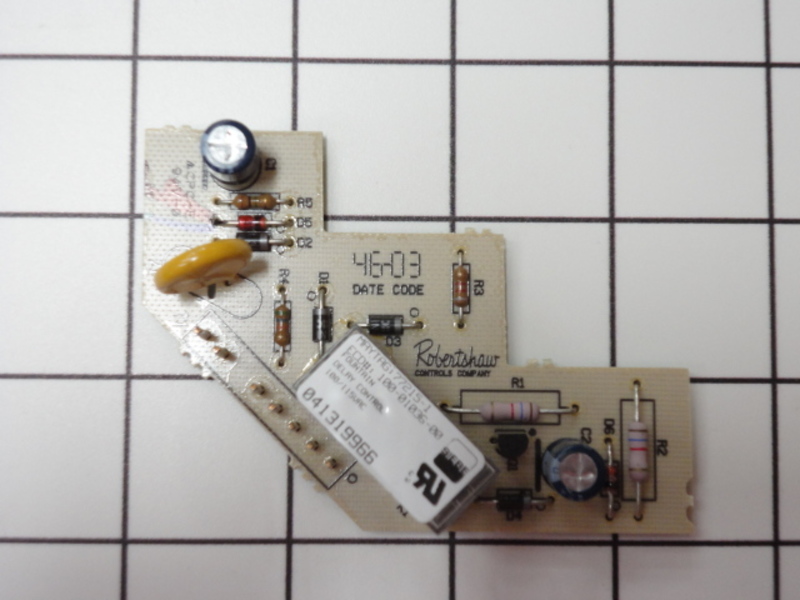

12	61003288	Board, Delay (Series: 10)	$136.20 Special Order
13	WP488234	Screw (Series: 10)	$4.60 Special Order
	Y00000000	See Note (solenoid Not Available Must Order Ice Door Kit 12001991) (Series: 10)	Call for Availability
14	415013-35	Screw (Series: 10)	$8.20  In-Stock Retail: $7.99
	61004326	Bracket, Fountain (blk) (Series: 10)	$62.90 Special Order
15	7403P067-60	Switch, Safety (Series: 10)	$60.50 Special Order
16	61003290	Switch, Light (Series: 10)	$21.40 Special Order
17	55440-3	Switch (Series: 10)	$30.10 Special Order
	415041-35	Screw (Series: 10)	$4.40 Special Order
18	70119-1	Receptacle, Bulb (Series: 10)	$4.40 Special Order
19	W10857122	Bulb, Light (Series: 10) (Replaces: 307100 67001316 63179-1)	$7.60  In-Stock Retail: $7.37
20	61003592	Selector, Slide (blk) (Series: 10)	$1.90 Special Order
	61004052	Screw (Series: 10)	$4.40 Special Order
21	61003593	Pad, Actuator (blk) (Series: 10)	$6.00 Special Order
22	61003594	Grill (blk) (Series: 10)	$29.50 Special Order
23	WP61003689	Tank Assy., Water (Series: 10)	$135.90 Special Order
	WP67006908	Screw (Series: 10)	$4.80 Special Order
24	WP2300868	Union, Reducing (5/16``-5/16``) (Series: 10)	$18.70  In-Stock Retail: $18.17
25	55440-2	Switch, Crusher (Series: 10)	$7.80 Special Order
26	WP61003339	Insulation (Series: 10)	$4.50 Special Order
27	61003340	Insulation (Series: 10)	$19.50 Special Order
28	Y00000000	See Note (ftn. Insulation Not Available Must Order Ftn. Housing Kit 12001760 Wht, 12001761 Alm, Or 12001762 Blk) (Series: 10)	Call for Availability
29	61003342	Insulation (Series: 10)	$4.40 Special Order
30	61003343	Insulation (Series: 10)	$4.40 Special Order
31	61003308	Insulation (Series: 10)	$21.30 Special Order
NI	61003468	Wire Harness, Ftn. Slide (Series: 10)	$32.30 Special Order
	61003455	Wire Harness, Ftn. Switches (Series: 10)	$21.30 Special Order
