Maytag CRG7400AAW Parts List

Popular Searches: (Click to search)    blk  bulb  burner  fitting  handle  module  oven  pressure  regulator  seal  silicone  spacer  spark  switch  thermostat


Select a Diagram

01 - Body

02 - Door/drawer (crg7400aax)

03 - Gas Controls (crg7400aax)

04 - Oven/base

05 - Top Assembly/control Panel (crg7400aax)

Select Diagram ... 01 - Body 02 - Door/drawer (crg7400aax) 03 - Gas Controls (crg7400aax) 04 - Oven/base 05 - Top Assembly/control Panel (crg7400aax)

03 - Gas Controls (crg7400aax)   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10491986	Screw, Valve (Series: 10)	$4.50 Special Order
	7502P174-60	Valve, Top Burner (Series: 10)	Call for Availability
2	3604F177-51	Shield, Thermostat (Series: 10)	$4.10 Special Order
	WP74002665	Thermostat (Series: 10) (Replaces: 7404P096-60)	$190.60 Special Order
	7101P280-60	Screw W/washer (blk) (Series: 10)	$4.10 Special Order
3	74005025	Burner, Oven (Series: 10)   (Replaces: 3403D023-45)	$76.80 Special Order
4	7501P137-60	Valve, Oven (Series: 10)	$149.80 Special Order

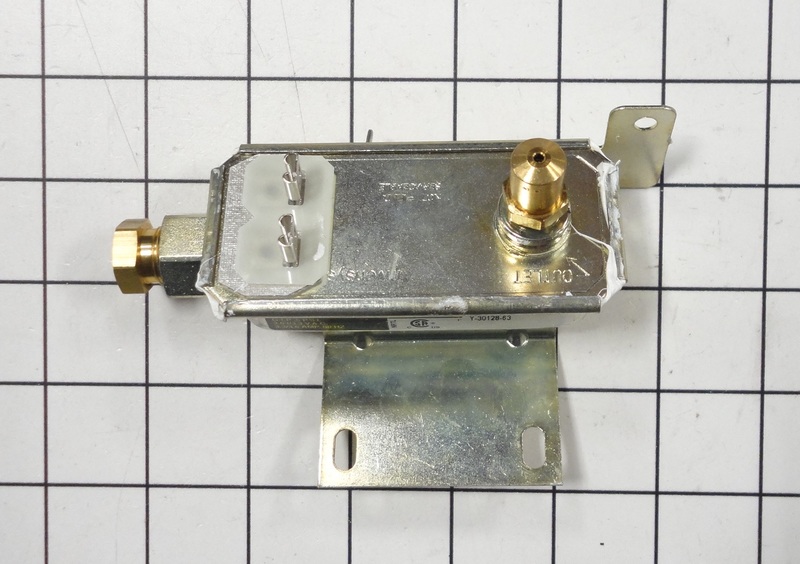

	7501P144-60	Valve, Oven (Series: 10)	$146.50 Special Order
5	7403P284-60	Switch, Burner (Series: 10)	$43.00 Special Order
6	3807F426-45	Support, Top Pilot (Series: 10)	Call for Availability
7	WP4159193	Screw (10-24x5/16-ni) (Series: 10)	$2.40  In-Stock Retail: $2.25
8	7118P015-60	Screw, Housing (Series: 10)	Call for Availability
9	12400035	Igniter, Oven (Series: 10)	$59.95  In-Stock Retail: $53.51
10	7432P029-60	Igniter, Top Burner (rt) (Series: 10)	$31.80 Special Order
	7432P010-60	Igniter (Series: 10)	Call for Availability
11	3414F104-44	Tubing - Regulator & Pipe (Series: 10)	$5.10 Special Order
	3414F114-44	Tubing (Series: 10)	$6.70 Special Order
12	7513P159-60	Pipe, Manifold (Series: 10)	Call for Availability
	7513P105-60	Pipe, Manifold (Series: 10)	Call for Availability
13	7103P130-60	Nut, Loxit (3/8``) (Series: 10)	$5.70 Special Order
14	7510P083-60	Regulator, Pressure (Series: 10) (Replaces: 7510P004-60 74006282 7510P049-60)	Call for Availability
	WP74006429	Regulator, Pressure W/fitting (Series: 10) (Replaces: 7510P063-60 7510P067-60 7510P050-60)	$205.60 Special Order
15	1430322	Module, Spark (Series: 10) (Replaces: 7431P006-60)	Call for Availability
	3807F432-45	Support, Spark Module (Series: 10)	Call for Availability
16	7502P002-60	Valve, Shut Off (Series: 10)	$15.30 Special Order
17	7505P192-60	Burner, Top (front) (Series: 10)	$89.30 Special Order
18	7505P203-60	Burner, Top (rear) (Series: 10)	$48.10 Special Order
NI	12001209	Harness, Loose/burner Box (Series: 10)	$43.60 Special Order
	12001323	Wires, Switch/module (Series: 10)	$105.80 Special Order
