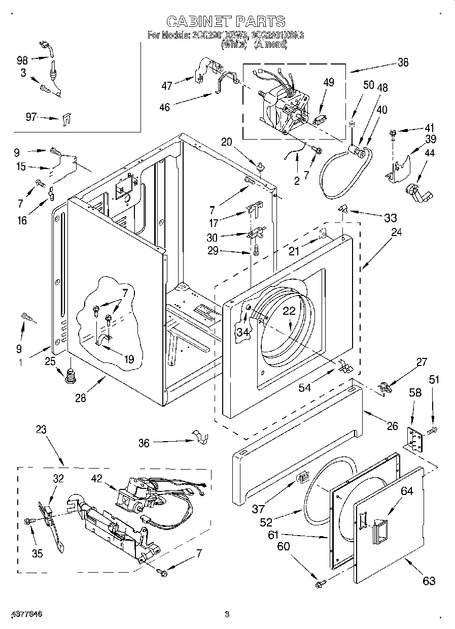

| Item # | Part # | Description | Price / Availability | Add to Cart | |
|---|---|---|---|---|---|
| 1 | Panel, Rear | $197.80 |
|||
| 2 | Wire, Ground (motor) | $32.40 |
|||
| 3 |
 Screw, Ground |
$4.80 Retail: $4.59 |
|||
| 7 | Screw,10-16 X 1/2 | $4.80 |
|||
| 9 | Screw, Hex Washer Head (Replaces: 693995) | $4.80 Retail: $4.59 |
|||
| 15 | Cover, Block (Replaces: 3396794 3396795) | $38.50 |
|||
| 16 |
 Hinge, Top (2) |
$4.80 Retail: $4.59 |
|||
| 17 |
 Lever, Door Switch (Replaces: 691581) |
$4.80 Retail: $4.59 |
|||
| 19 | Clamp, Pipe (rear) | $8.00 |
|||
| 20 |
 Locator, Top (2) |
$8.20 |
|||
| 21 |
 Clip, Ground (2) (Replaces: 98234) |
$7.00 Retail: $6.82 |
|||
| 22 |
 Seal & Bearing Assembly |
$62.30 Retail: $60.70 |
|||
| 23 | Burner Assembly, 50 Hz. (refer To Burner Assembly Parts Page For Further Breakdown) | $144.20 |
|||
| 24 | Front Panel Assembly (almond) | Call for Availability | |||
| Front Panel Assembly (white) | Call for Availability | ||||
| 25 |
 Foot, Plastic (Replaces: 3392100) |
$4.40 Retail: $4.20 |
|||
 Foot - Optional (extended Length Package Of 2 ) (not Included) (Replaces: 279810) |
$11.50 Retail: $11.18 |
||||
| 26 | Panel, Toe (almond) | $57.40 |
|||
| Panel, Toe (white) | $53.20 |
||||
| 27 |
 Clip, Toe Panel (2) (Replaces: 3388229) |
$4.80 Retail: $4.59 |
|||
| 28 | Cabinet Assembly (includes Illus. Nos. 1, 15, 25, & 39) (white) | $179.30 |
|||
| Cabinet Assembly (includes Illus. Nos. 1, 15, 25, & 39) (almond) | $173.20 |
||||
| 29 | Screw, 6-20 X 7/8 (2) | $4.80 |
|||
| 30 |
 Switch, Door |
$31.50 Retail: $31.49 |
|||
| 32 |
 Ignitor (Replaces: 686590) |
$41.20 Retail: $41.18 |
|||
| 33 |
 Lock, Front Top (2) (Replaces: 18776) |
$7.10 Retail: $6.84 |
|||
|
Lock, Front Top |
$7.10 Retail: $6.84 |
||||
| 34 |
 Clip, Felt Pad (2) |
$11.60 |
|||
| 35 | Screw & Washer | $4.80 |
|||
| 36 | Clip, Hinge (2) (Replaces: 297092) | $4.80 Retail: $4.59 |
|||
| 37 | Catch, Door Assembly (Replaces: 3389441) | $4.80 Retail: $4.59 |
|||
| 38 | Motor Assembly 50 Hz. | $208.60 |
|||
| 39 |
 Base, Motor |
$73.90 |
|||
| 40 |
 Belt, Drive |
$15.00 Retail: $14.95 |
|||
| 41 |
 Bolt, 5/16-18 X 3/4 |
$8.70 |
|||
| 42 |
 Valve, Gas (complete) 50 Hz. |
$212.10 |
|||
| 44 |
 Idler & Pulley (Replaces: 691366) |
$15.80 Retail: $15.73 |
|||
| 46 |
 (alt.) |
$4.80 |
|||
|
(alt.) |
$4.80 |
||||
|
Clamp, Motor (Replaces: 660658) |
$4.80 |
||||
| 47 |
 Clamp, Motor (Replaces: 3404162) |
$4.80 |
|||
| 48 | Pulley, 50 Hz. | $208.60 |
|||
| 49 |
 Switch, Motor Start |
$139.60 Retail: $139.53 |
|||
| 50 | Screw, Set | $8.20 |
|||
| 51 |
 Screw, Hinge (6) |
$4.80 Retail: $4.59 |
|||
| 52 | Seal, Door (Replaces: 3390734) | $32.80 Retail: $31.97 |
|||
| 54 |
 Strike, Door (Replaces: 696144) |
$13.50 Retail: $13.45 |
|||
| 58 |
 Hinge & Pin Assembly (2) |
$4.80 |
|||
| 60 |
Screw, Door (8) |
$4.80 Retail: $4.59 |
|||
| 61 | Door, Rear | $113.90 |
|||
| 63 |
 Door, Front (white) |
$88.90 |
|||
| Door, Front (almond) | $83.10 |
||||
| 64 | Handle, Door (almond) | $4.40 |
|||
 Handle, Door (white) (Replaces: 686711) |
$4.80 Retail: $4.59 |
||||
| 97 | Clip, Strain Relief | $4.60 |
|||
| 98 | Cord, Power | $63.80 |
|||
