Frigidaire FFC13G7AW0 Parts List

Popular Searches: (Click to search)    capacitor  cold  control  controller  insulation  key  knob  lamp  light  lock  ramp  run


Select a Diagram

03 - Door

05 - Cabinet

07 - System

01 - Cover

Select Diagram ... 03 - Door 05 - Cabinet 07 - System 01 - Cover

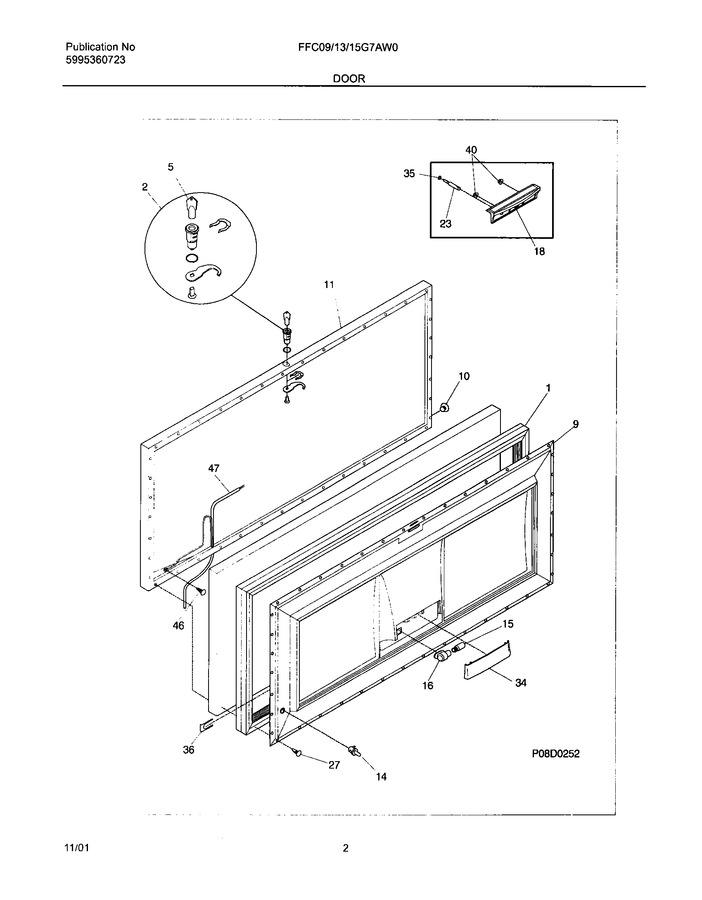

03 - Door   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	216481101	Gasket-door, White	$151.20 Special Order
2	5303925107	Lock Assy	Call for Availability
F5	297147700	Key, Lock (Replaces: 216702900)	$5.20  In-Stock Retail: $4.99
9	216686604	Panel-inner Door,frzr	$178.30 Special Order
10	216141101	Plug Button, White	Call for Availability
11	216129818	Panel-lid	$189.80 Special Order
14	216822900	Light/lamp, Ramp	$50.80  In-Stock Retail: $49.49
F15	216846400	Lamp,light Bulb ,40 W ,120 V (Replaces: 216608600)	$45.10 Special Order
16	216817600	Light/lamp,indicator	Call for Availability
18	216205004	Handle,white	$9.60 Special Order
23	216212700	Light-signal,amber	$15.70 Special Order
27	5303212828	Clip,panel	$11.80  In-Stock Retail: $11.49
34	216160400	Shield-light	$25.90 Special Order
35	5303297015	Washer, Signal Light	Call for Availability
36	5306599968	Plate, Backup, Light Switch	$2.80 Special Order
40	5309948647	Fastener, Handle	$8.80 Special Order
F47	216806500	Harness-lid	$27.00 Special Order
NI	5303917276	Insulation	$240.40  In-Stock Retail: $234.49
	5309948955	Clip-panel	$8.40 Special Order
