09 - Unit Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W11553819	Insulation, Sound Dampening	$8.70  In-Stock Retail: $8.47
2	W11458267	Fan Blade	$13.70  In-Stock Retail: $13.35
3	2324712	Condenser Assembly (also Order 9)	$203.20 Special Order
4	WP489464	Screw   (Replaces: 489464)	$4.80 Special Order
5	2208280	Clip, Wire & Tube	$6.40 Special Order
6	WP8533993	Screw	$6.70 Special Order
7	W11751592	Sleeve	$13.00 Special Order
8	W10132427	Bushing, Compressor	$33.50 Special Order
9	W10683556	Clip, Condenser	$12.00 Special Order
10	2212996	Bale Strap	$7.90 Special Order
11	WP2313162	Start-device, Combination (start Relay And Overload)   (Replaces: 2313162)	$122.00  In-Stock Retail: $119.02
12	2313230	Tube Suction	$88.80 Special Order
13	WPW10662129	Capacitor (service) (Replaces: 2169373 1118576)	$47.60  In-Stock Retail: $46.35
	WP65889-4	Capacitor (production)   (Replaces: 2252799)	$51.40  In-Stock Retail: $50.13
14	WP2188823	Evaporator   (Replaces: 2188823)	$229.50  In-Stock Retail: $223.90
15	WP2161324	Clamp	$6.40 Special Order
16	W10124096	Fan, Motor	$115.30  In-Stock Retail: $112.41
17	WPW10614158	Tray, Evaporator   (Replaces: 1105523)	$98.60  In-Stock Retail: $96.12
18	2217194	Heat Shield	$40.70 Special Order
19	WPW10143759	Drier (production)	$17.10  In-Stock Retail: $16.59
	WPW10143759	Drier (service) (Replaces: W10143759)	$17.10  In-Stock Retail: $16.59

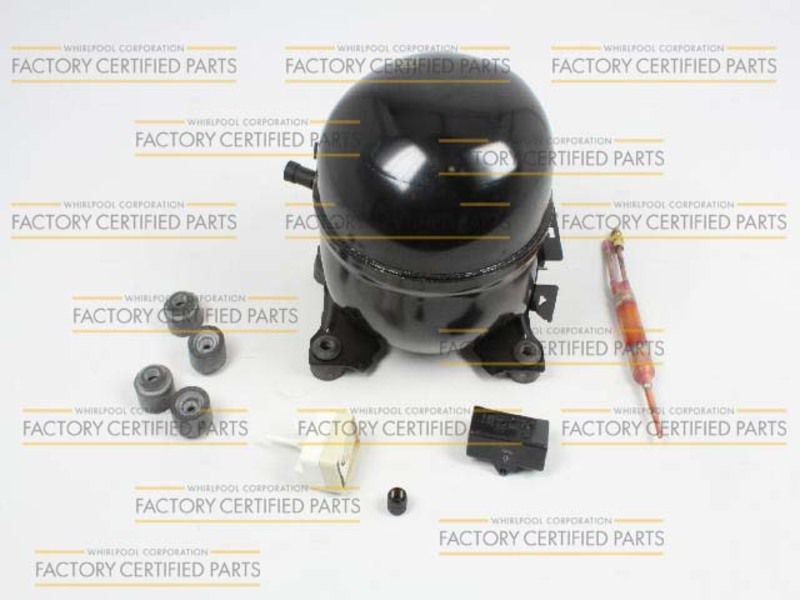

20	W10140971	Compressor (includes Items 11, 13, 19 & 27) (also Order 876765 Tube Kit)	$365.60 Special Order
21	2304904	Unit Mounting Frame	$180.40 Special Order
22	2187510	Unit, Harness	$18.80 Special Order
23	WP2181929	Fan, Motor Bracket   (Replaces: 2181929)	$7.20 Special Order
24	WP2323198	Heater, Defrost   (Replaces: 2323198)	$59.70  In-Stock Retail: $58.21
25	W11623163	Clip	$7.10 Special Order
26	876811	Screw (4)	$4.80 Special Order
27	WP4387558	Grommet (4)	$4.80 Special Order
28	489340	Screw	$6.70 Special Order
29	W10896764	Air Baffle	$62.30 Special Order
30	2155547	Clip, Heat Shield	$4.40 Special Order
31	W10466698	Unit Cover, Bottom	$72.40 Special Order
32	489396	Clip	$7.00 Special Order
33	2305374	Unit Mounting Rail	$53.20 Special Order
34	W11544659	Screw	$8.70 Special Order
35	2260517	Guard, Fan	$57.20 Special Order
36	WP489427	Screw	$4.80  In-Stock Retail: $4.59
37	WPW10141625	Screw	$13.60 Special Order
38	WPW10334458	Connector, Water Tube	$14.20 Special Order
	978026	Valve, Access (5/16``)	$78.60  In-Stock Retail: $76.67
	WP978025	Valve, Access (1/4``) (Replaces: 978025)	$65.70  In-Stock Retail: $64.01
	876764	Valve, Access(3/16``)	$56.70  In-Stock Retail: $55.29
	978030	Valve, Access (3/4``)	$84.20 Special Order
	978029	Valve Access (5/8``)	$65.50 Special Order
	978028	Valve, Access (1/2)	Call for Availability
	978027	Valve, Access (3/8``)	$80.20  In-Stock Retail: $78.20
