06 - Top Assembly   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	7201P143-60	Gasket (Series: 10)	$13.30 Special Order
2	7740P069-60	Bezel, Burner Know (white) (Series: 10)	Call for Availability
3	74001813	Support, Relay (Series: 18)	Call for Availability
	WP59002061	Screw (6abx38-zn) (Series: 18)	$4.80 Special Order
	74001542	Cover, Manifold (rear) (Series: 10)	Call for Availability
	74002588	Cover, Manifold (rear) (Series: 18)	$5.10 Special Order

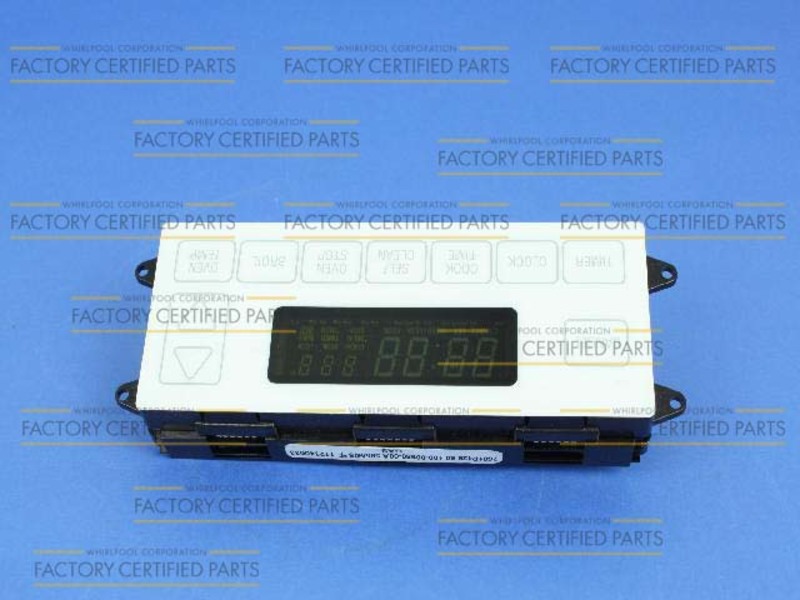

4	12001617	Clock (wht) (Series: 10)	$246.60 Special Order
	74003191	Bracket, Clock (Series: 10)	Call for Availability
	12001617	Clock (wht) (Series: 26)	$246.60 Special Order
	WPY706189	Screw (Series: 10)	$4.80  In-Stock Retail: $4.59
5	4825D001-59	Cover, Vent Trim (Series: 10)	$22.80 Special Order
	3601F221-45	Baffle, Vent Cover (Series: 10)	$25.30 Special Order
6	WP59002061	Screw (6abx38-zn) (Series: 10)	$4.80 Special Order
7	2003X031-26	Grate (gry) (Series: 28)   (Replaces: 74001655)	Call for Availability
	2003X031-26	Grate (gry) (Series: 10)	$39.70 Special Order
	WP7518P465-60	Grate (gry) (Series: 30)   (Replaces: 74001061)	Call for Availability
	WP7518P465-60	Grate (gry) (Series: 23)   (Replaces: 74001061)	Call for Availability
8	3801F318-51	Bracket, Top (Series: 10)	Call for Availability
9	WP74003769	Knob, Valve (wht) (Series: 10)	$11.50  In-Stock Retail: $11.18
10	7403P314-60	Switch, Rocker (wht) (Series: 10)	$31.80 Special Order
11	74001558	Top, Main (wht) (Series: 10)	$82.00 Special Order
12	74001643	Panel, Manifold (wht) (Series: 10)	Call for Availability
	7101P348-60	Screw (wht) (Series: 10)	$4.50 Special Order
NI	5185D274-60	Harness (Series: 10)	Call for Availability
	5170P228-60	Harness, Sensor & Lock (Series: 10)	$25.10 Special Order
	5170P184-60	Harness, Relay (Series: 10)	$46.10 Special Order
	74001181	Manual, Use & Care (Series: 10)	$6.20 Special Order
	74002582	Manual, Use & Care (Series: 26)	Call for Availability
	16000327	Guide, Quick Ref. - Maytag (Series: 10)	Call for Availability
	74001575	Harness, Control/relay (Series: 10)	$49.50 Special Order
