Maytag CG3478XRA Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    door  fitting  gasket  igniter  orifice  oven  pressure  regulator  switch  valve


Select a Diagram


02 - Control Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
1 4001F088-51 Housing, Backguard (Series: 01) Call for Availability
2 3807F423-51 Support, Housing (rt) (Series: 01) Call for Availability
3807F424-51 Support, Housing (lt) (Series: 01) Call for Availability
3 3604F188-09 Shield, Flue (Series: 01) $7.60
Special Order
4 4851S007-59 Panel, Control Assy (Series: 09) $181.40
Special Order
4851S001-59 Panel, Control Assy (Series: 01) $270.00
Special Order
5 WPY706189 WPY706189 Screw (Series: 01) $4.80
 In-Stock
Retail: $4.59
6 3801F310-45 Bracket, Clock (Series: 09) Call for Availability
3801F263-45 Bracket, Clock (Series: 01) Call for Availability
7 7403P067-60 7403P067-60 Switch, Rocker (blk) (Series: 01) $64.80
Special Order

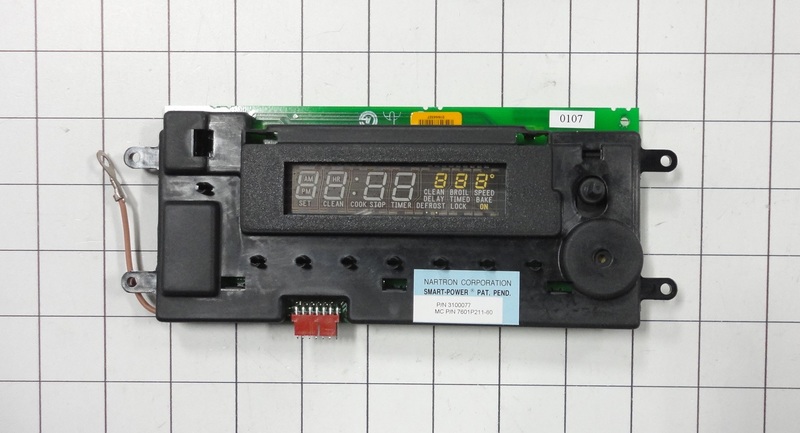

8 7601P211-60 7601P211-60 Clock (Series: 01) $301.40
Special Order
7601P208-60 7601P208-60 Clock (Series: 09) Call for Availability
9 WP7711P492-60 WP7711P492-60 Knob, Clock (blk) (Series: 01) $8.90
 In-Stock
Retail: $8.61
10 7428P012-60 Relay (Series: 01) Call for Availability
11 8004P020-60 Support, Relay Board (Series: 01) $4.40
Special Order
12 W10124350 Not Required Part Or See Note (Series: 01) Call for Availability
13 4001F064-51 Extension, Control Panel (Series: 01) $5.20
Special Order
14 7726P060-60 End Cap (rt-blk) (Series: 01) Call for Availability
15 7118P018-60 Screw (Series: 01) Call for Availability
16 WP3195558 Nut, Speed (Series: 01)   (Replaces: 7103P129-60) $6.40
Special Order
17 7726P059-60 End Cap (lt-blk) (Series: 01) $10.60
Special Order
18 7118P015-60 Screw, Housing (Series: 01) Call for Availability
NI 5170P124-60 Harness Ctrl To Relay (Series: 01) $35.60
Special Order
8113P046-60 Manual, Use & Care (Series: 01) Call for Availability
5180D142-60 Harness, Wire Clock (Series: 01) Call for Availability
12001209 Wires, Loose (Series: 01) $43.60
Special Order
12001209 Wires, Loose (Series: 09) $43.60
Special Order
5170P123-60 Harness Sensor (Series: 01) Call for Availability
5170P160-60 Harness, Sensor & Lock (Series: 09) Call for Availability
5180D152-60 Harness, Control Panel (Series: 09) $11.30
Special Order
