Maytag CER3520AGW Parts List

Popular Searches: (Click to search)    6``  8``  bake  block  bowl  broil  chr  door  drip  element  gasket  hinge  hole  infinite  lrg  pass  screw  sml  switch  terminal


Select a Diagram

01 - Body

02 - Control Panel

03 - Door/drawer

04 - Oven/base

05 - Top Assembly

06 - Wiring Informaiton

Select Diagram ... 01 - Body 02 - Control Panel 03 - Door/drawer 04 - Oven/base 05 - Top Assembly 06 - Wiring Informaiton

02 - Control Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	2601D539-81	Panel, Control (wht) (Series: 10)	$75.60 Special Order
2	12001630	Clock (wht) (Series: 10)	$192.80 Special Order
3	7101P348-60	Screw (wht) (Series: 10)	$4.50 Special Order
	3801F533-51	Bracket, Clock (Series: 10)	$4.40 Special Order
4	WP7403P239-60	Switch, Infinite (lrg Element) (Series: 10) (Replaces: 7403P239-60)	$33.50  In-Stock Retail: $49.21
	WP7101P309-60	Screw (Series: 10)	$4.80 Special Order
	WP7403P238-60	Switch, Infinite (sml Element) (Series: 10) (Replaces: 7403P238-60)	$40.00  In-Stock Retail: $56.27
5	74008717	Switch, Rocker (wht) (Series: 10) (Replaces: 74003364)	$52.70 Special Order
6	WP74004153	Light, Indicator (Series: 10)	$4.80 Special Order
7	WP7730P011-60	Lens, Indicator Light (Series: 10)	$3.50 Special Order
8	74003366	Support, Control Panel (lt) (Series: 10)	Call for Availability
	74003365	Support, Control Panel (rt) (Series: 10)	Call for Availability

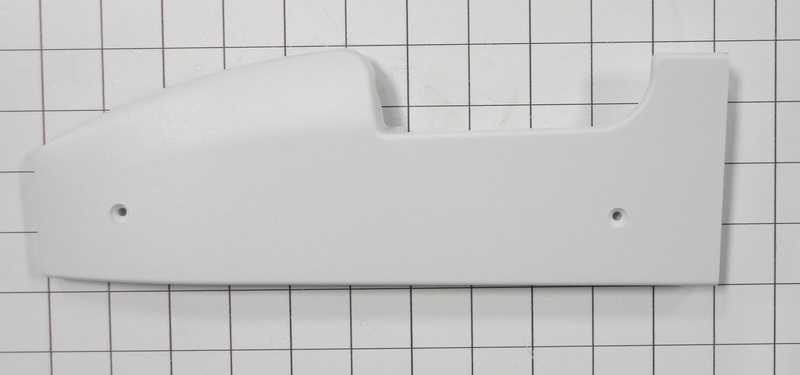

9	74003370	End Cap, Control Pnl (lt-wht) (Series: 10)	$24.70 Special Order
	WP98008544	Screw (1/2``-wht) (Series: 10) (Replaces: 74009540 7101P373-60)	$9.00 Special Order
	74002451	Screw (1 3/16``-wht) (Series: 10)	Call for Availability

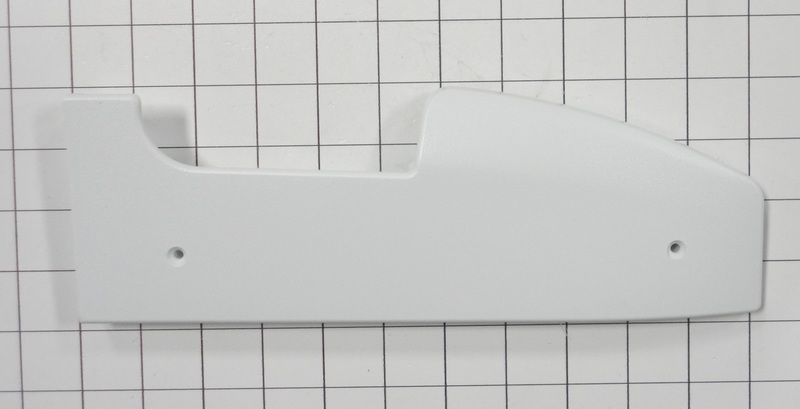

	WP74003369	End Cap, Control Pnl (rt-wht) (Series: 10) (Replaces: 74003369)	$41.40 Special Order
10	W11233072	Screw (no.8ab) (Series: 10)	$8.70  In-Stock Retail: $8.47
	74003371	Hinge, Main Top (rod) (Series: 10)	$4.40 Special Order
11	W11233072	Screw (no.8ab) (Series: 10)	$8.70  In-Stock Retail: $8.47
	74003372	Housing, Control Panel (Series: 10)	Call for Availability

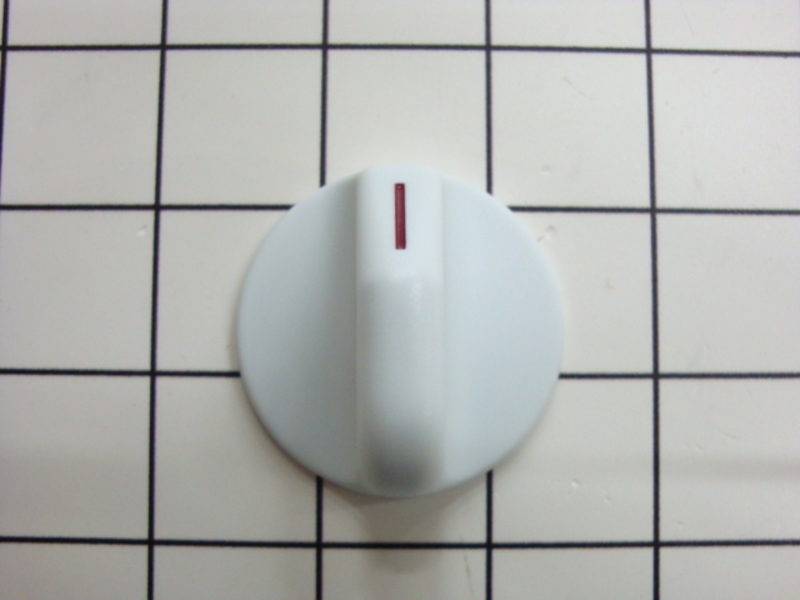

12	WP74003373	Knob, Switch (wht) (Series: 10) (Replaces: 74003373)	$11.80  In-Stock Retail: $11.49
13	74003374	Shield, Sight (Series: 10)	$2.10 Special Order
	W11233072	Screw (no.8ab) (Series: 10)	$8.70  In-Stock Retail: $8.47
NI	12001323	Wire/terminal Kit (Series: 10)	$105.80 Special Order
	74003468	Harness, Sensor/lock (Series: 10)	$25.10 Special Order
	74006792	Harness, Door Latch (Series: 10)	$6.20 Special Order
	74003752	Manual, Use & Care (Series: 10)	Call for Availability
	74003995	Manual, Insert (clock) (Series: 10)	Call for Availability
	16010161	Manual, Srvc Elec/gas Range (Series: 10)	$6.20 Special Order
