Maytag CDU810V Parts List

Popular Searches: (Click to search)    assembly  dispenser  door  grommet  hinge  hose  housing  link  long  motor  pin  pump  rinse  seal  spring  upr  valve  water  wax  wheel


Select a Diagram

01 - Control Panel

02 - Door

03 - Pump & Motor

04 - Rinse Aid & Soap Dispenser

05 - Track & Rack Assembly

06 - Tub

07 - Wiring Information

Select Diagram ... 01 - Control Panel 02 - Door 03 - Pump & Motor 04 - Rinse Aid & Soap Dispenser 05 - Track & Rack Assembly 06 - Tub 07 - Wiring Information

01 - Control Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WP33002917	Screw, No.8x1/2 Hex Washer Head (Series: 10)	$4.80 Special Order
	99002477	Control Panel Asy (wht) (Series: 10)	$68.70 Special Order
	99002559	Felt, Control Panel (side) (Series: 10)	$0.70 Special Order
2	Y913177	Seal, Vent Outlet (Series: 10)	$4.40 Special Order
	Y913116	Liner, Vent (Series: 10)	$2.10 Special Order
3	99002829	Control, Microprocessor (Series: 10) (Replaces: 99002467)	$176.30 Special Order
4	WP99002085	Handle, Latch (wht) (Series: 10) (Replaces: 99002085)	$80.40  In-Stock Retail: $78.41
	99002382	Cover, Latch (Series: 10)	$30.10 Special Order

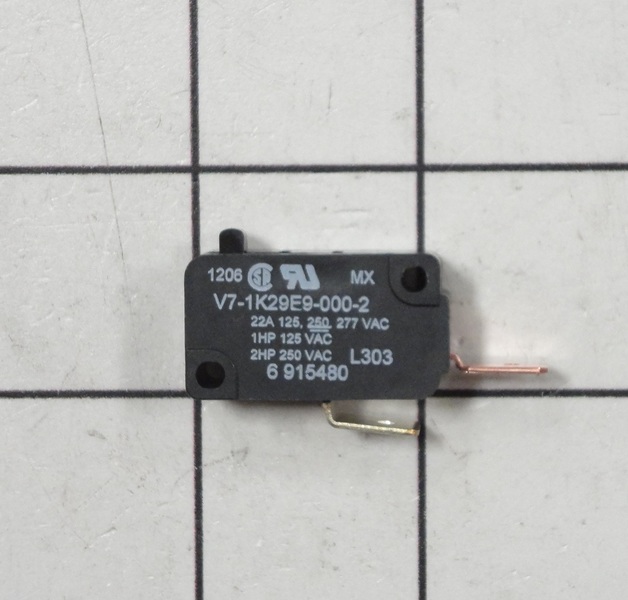

5	WP99002207	Switch, Door (Series: 10) (Replaces: 99002207)	$20.40 Special Order
6	WP33002917	Screw, No.8x1/2 Hex Washer Head (Series: 10)	$4.80 Special Order
	WP99002240	Holder, Switch (Series: 10)   (Replaces: 99002240)	$44.50 Special Order
7	99002432	Barrier, Control Panel (Series: 10)	$20.90 Special Order
NI	99002426	Harness, Wire (Series: 10)	$45.40 Special Order
	99002494	Harness, Wire (Series: 27)	$45.70 Special Order
	99002393	Manual, Use & Care (tri) (Series: 10)	Call for Availability
	16010623	Manual, Service Crosley (Series: 10)	Call for Availability
