Whirlpool ED26SSXMWR1 Parts List

Popular Searches: (Click to search) 16`` access almond bar black can dispenser drive drum grease ice paint pressurized screw silicone spray touch valve washer white

Select a Diagram

02 - Cabinet

03 - Breaker And Partition

04 - Air Flow , Lit/optional

05 - Dispenser Front

06 - Refrigerator Door

07 - Freezer Door

08 - Unit

09 - Freezer Interior

10 - Refrigerator Interior

11 - Ice Maker

12 - Air Flow And Control

13 - Serva-door

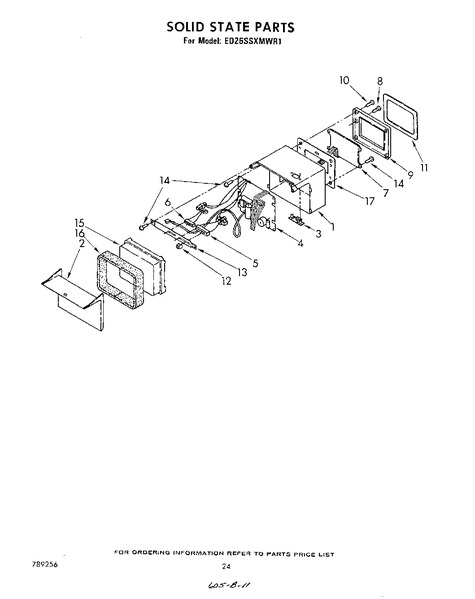

14 - Solid State

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
1	943526	Housing	Call for Availability
2	1103607	Cover Housing (for Platinum Model Only)	Call for Availability
	943541	Cover Housing	Call for Availability
3	946477	Service Switch	$25.50 Special Order
4	943527	Control Board Assembly	Call for Availability
5	1100453	Freezer, Slide Switch	Call for Availability
6	1100452	Refrigerator, Slide Switch	Call for Availability
7	943539	Touch & Filter Switch	Call for Availability
8	4159456	Screw, 8 X 3/8 (ground)	$4.40 Special Order
9	943543	Escutcheon	Call for Availability
10	W11693756	Screw, 8 X 5/8	$8.70 Special Order
11	1103608	Insert, Escutcheon (toast)	Call for Availability
	943544	Insert Escutcheon (white & Coffee)	Call for Availability
	944876	Insert Escutcheon (golden Harvest)	Call for Availability
	946352	Insert, Escutcheon (almond)	Call for Availability
	1103609	Insert, Escutcheon (platinum)	Call for Availability
12	1100451	Knob, Control	Call for Availability
13	943533	Bracket, Switch	Call for Availability
14	WP488729	Screw, 8 X 1/2 (Replaces: 486194)	$4.80 In-Stock Retail: $4.59
15	943529	Insulation, Control Box	Call for Availability
16	939993	Gasket, Control Box	Call for Availability
17	943535	Seal, Filter	Call for Availability
