Whirlpool 2496^1 Parts List

Select a Diagram

02 - Cook Top

03 - Oven

04 - Blower Unit

05 - Door Lock , Optional Backsplash

06 - Oven Door

07 - Electric Grill Module , Electric

08 - Griddle , Griddle/grill Cover

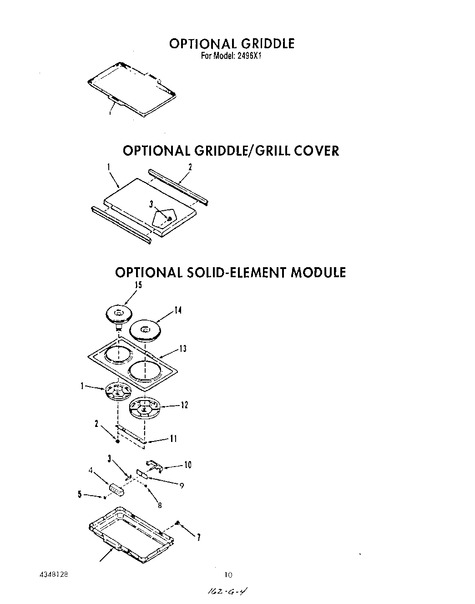

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
1	4336453	Griddle	Call for Availability
A1	4336005	Cover	Call for Availability
B1	4335942	Clamp	Call for Availability
A2	4336006	Handle, (left/right)	Call for Availability
B2	4336026	Nut, Mount. (2)	Call for Availability
A3	4336235	Screw, No. 6 X 1/4	Call for Availability
B3	4330875	Pin, Terminal (4)	$4.40 Special Order
B4	4335910	Terminal Block	$26.40 Special Order
B5	4323399	Nut, Speed	Call for Availability
B6	4336604	Pan-module	Call for Availability
B7	4324647	Screw, No.8-32 X 3/8	Call for Availability
B8	4323479	Screw No.8-32 X 3/16	Call for Availability
B9	4330873	Insulator	Call for Availability
B10	4335944	Bracket	Call for Availability
B11	4335993	Strap, Element	Call for Availability
B12	4335941	Clamp, Elmnt.	Call for Availability
B13	4335938	Cooktop (chrome)	Call for Availability
	4336457	Cooktop (almond)	Call for Availability
B14	WP3147132	Elmnt. - Large	$184.50 Special Order
B15	WP3147131	Elmnt. - Small	$165.10 Special Order
