Maytag CAH4205AWW Parts List

Popular Searches: (Click to search)    assembly  assy  asy  belt  boot  control  dispenser  door  drain  drive  hose  kit  lip  motor  pump  seal  spinner  support  tub  valve


Select a Diagram

01 - Base With Motor

02 - Cabinet

03 - Control Panel & Top

04 - Front Panel, Door & Shroud

05 - Outer Tub

06 - Spinner Assy & Outer Tub Cover

07 - Supplemental Information

08 - Wiring Information

09 - Wiring Information

Select Diagram ... 01 - Base With Motor 02 - Cabinet 03 - Control Panel & Top 04 - Front Panel, Door & Shroud 05 - Outer Tub 06 - Spinner Assy & Outer Tub Cover 07 - Supplemental Information 08 - Wiring Information 09 - Wiring Information

02 - Cabinet   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WP89503	Hose, 4` Inlet (Series: 10)	$7.80  In-Stock Retail: $11.98
2	Y013783	Gasket, Inlet Hose (Series: 10)	$4.50 Special Order
3	WP22002960	Strainer (Series: 10)	$4.80 Special Order
4	W11629055	Hose, Inlet (Series: 10)	$15.80  In-Stock Retail: $15.37
5	WP489128	Screw (Series: 10)	$6.70  In-Stock Retail: $6.50
6	22002092	Panel, Access (Series: 10)	$18.80 Special Order
7	22002932	Clip, Drain Hose (Series: 10)	$4.40 Special Order
8	WP1163839	Screw (no.10-3/8``) (Series: 10)	$4.50 Special Order
9	33002212	Bracket, Water Valve (Series: 10)	Call for Availability
10	22002704	Cover, Drain Hose (Series: 10)	Call for Availability
11	WP1163839	Screw (no.10-3/8``) (Series: 10)	$4.50 Special Order

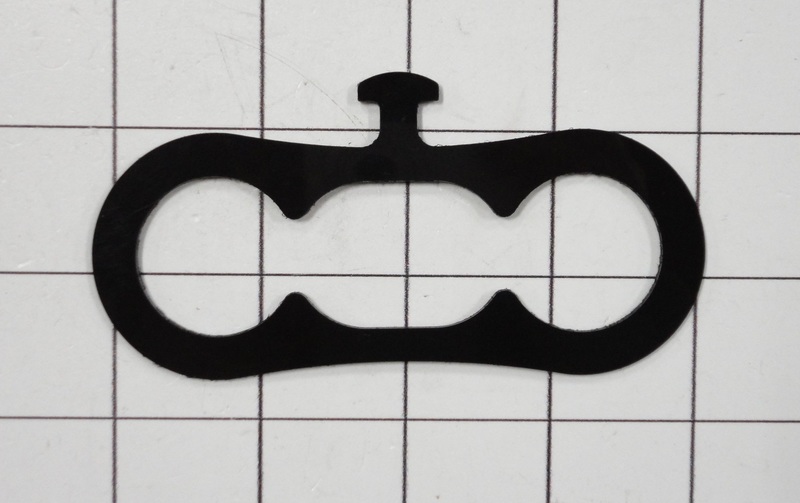

12	WP22002892	Retainer, Drain Hose (Series: 10)	$51.80 Special Order
13	12001807	Kit Nc, Drain Hose Replacement (Series: 10)	$31.30 Special Order
14	WP285655	Clamp, Drain Hose (Series: 10)	$4.80  In-Stock Retail: $4.59
15	W11573574	Screw (Series: 10) (Replaces: 22001995)	$8.70  In-Stock Retail: $8.47
16	WP22004095	Hinge, Plastic (Series: 10) (Replaces: WP22004095 22004095)	$28.10  In-Stock Retail: $27.35
17	22003639	Cabinet Assy. (wht As Pk) (Series: 10)	$102.50 Special Order
18	22003298	Retainer, Wire (Series: 10)	$6.40 Special Order
19	WP22003254	Spring, Cabinet (Series: 10)	$4.80 Special Order
20	WP22002297	Support, Spring (Series: 10)	$4.80  In-Stock Retail: $4.59
21	22001997	Spacer, Top Cover (Series: 10)	$4.40 Special Order
22	WP22002049	Clip (Series: 10)	$7.10 Special Order
23	22002013	Stop, Shipping (Series: 10)	Call for Availability
24	22003637	Brace Assembly, Top Cross (Series: 10)	$12.70 Special Order
25	33002040	Clip, Wire Harness (Series: 10)	$0.20 Special Order
26	22002013	Stop, Shipping (Series: 10)	Call for Availability
27	22003652	Shroud Support Assembly (Series: 10)	$21.10 Special Order
28	WP1163839	Screw (no.10-3/8``) (Series: 10)	$4.50 Special Order
29	22002239	Clip, Lower Front Panel (Series: 10)	$4.40 Special Order
30	W11573574	Screw (Series: 10) (Replaces: 22001995)	$8.70  In-Stock Retail: $8.47
31	213007	Screw, Cabinet (Series: 10)	$7.80 Special Order
