Maytag BZ22RW (BOM: P1161603W W) Parts List

Popular Searches: (Click to search)    assembly  control  crisper  defrost  evap  fan  heater  low  metal  motor  non  post  shim  side  support  temp  timer  wht


Select a Diagram

01 - Cabinet Back

02 - Compressor Compartment

03 - Crisper Compartment

04 - Evap Area

05 - Fz Door

06 - Ref Inner Door

07 - Ref Outer Door

08 - Ref/fz Control Switches & Lights

09 - Ref/fz Shelving

10 - Rollers/drain Tube

Select Diagram ... 01 - Cabinet Back 02 - Compressor Compartment 03 - Crisper Compartment 04 - Evap Area 05 - Fz Door 06 - Ref Inner Door 07 - Ref Outer Door 08 - Ref/fz Control Switches & Lights 09 - Ref/fz Shelving 10 - Rollers/drain Tube

09 - Ref/fz Shelving   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WP10474802	Grille, Toe (white)   (Replaces: 10474802)	$36.10 Special Order
	10474806	Grille- L Toe V (Replaces: 10474804)	$14.40 Special Order
	10474801	Grille, Toe (black)	Call for Availability
2	M0288214	Nut, Speed	$4.40 Special Order
3	215667501	Tray, Ice   (Replaces: 59281-2 D7725401)	Call for Availability
4	10370036	Glass, Shelf	$17.10 Special Order
5	10423121	Bin, Ice	$16.90 Special Order
6	D7620104	Rack, Ice	Call for Availability
7	B5720302	Clip	$4.40 Special Order
8	10448903V	Rack, Wine	$44.40 Special Order
9	M0270519	Washer	$4.40 Special Order
10	10508506	Handle, Basket	$21.10 Special Order
11	67006425	Screw-sm No.8-1/2lg	$4.80  In-Stock Retail: $4.59
12	10505612	Extrsn, Shelf	Call for Availability
13	10513401	Basket, Freezer	Call for Availability
14	10436807	Ext, Gl Shelf Front	Call for Availability
15	10436901	Extr, Gl Shelf Rear	$3.80 Special Order
16	10370033	Glass, Shelf	$15.40 Special Order
17	10562501	Ext, Gl Shelf Side	Call for Availability
18	67006692	Screw, Shoulder	$6.70 Special Order
19	10486401	Tunnel, Air Mt Kp	$3.60 Special Order
20	10501901	Grommet, Mt. Kpr.	$7.20 Special Order
21	10450307	Extr., Meat Kpr. Front	Call for Availability
22	10370049	Glass, Shelf (mk Top)	Call for Availability
23	10417012	Pan,meatkeeper	$54.90 Special Order
24	10437305	Sleeve, Mk	$22.80 Special Order
25	10681401	Rail, Painted	$4.00 Special Order
26	10588201	Slide, Mtkp Cont.	$1.40 Special Order

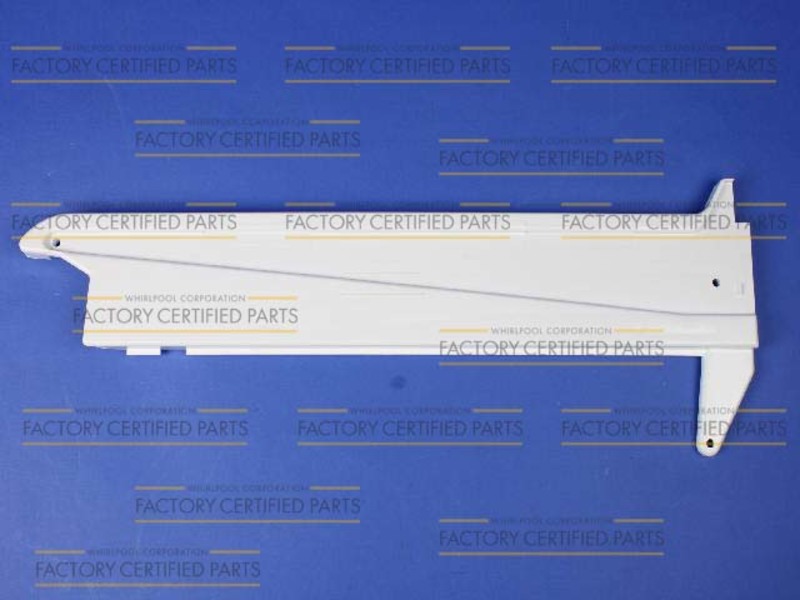

27	10485501	Glide, R. Mk	$58.20 Special Order

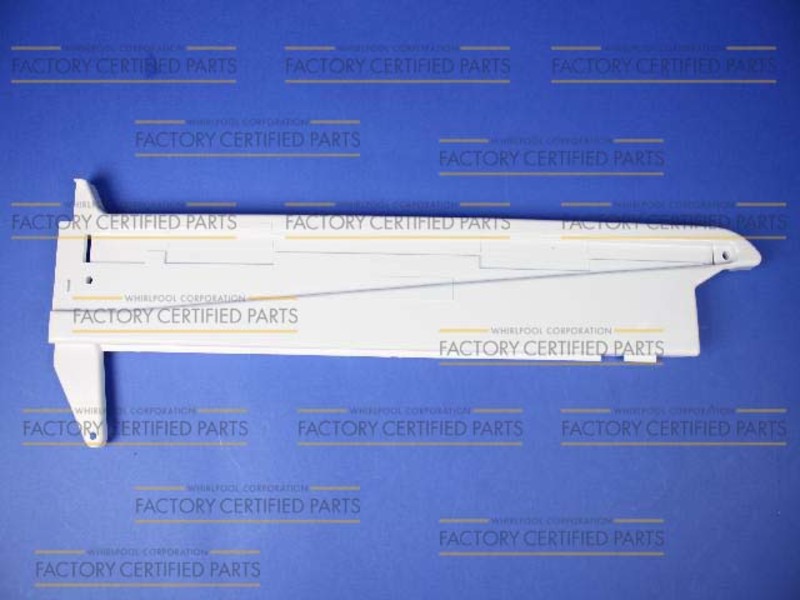

28	10485601	Glide, L. Mk	$57.20 Special Order
29	10562501	Ext, Gl Shelf Side	Call for Availability
30	10481001	Roller, Pan	$4.40 Special Order
31	A3189356	Gasket, Foam	Call for Availability
32	10502201	Extrsn, Meatkeeper	Call for Availability
33	D7599105	Ladder, Side	Call for Availability
34	M0238833	Screw	$4.40 Special Order
35	WP90767	Screw, Sm	$4.80  In-Stock Retail: $4.59
36	M0231426	Screw	$4.40 Special Order
37	10509001	Divider, Frz. Shelf	Call for Availability
38	10502501	Ext, Mt Kpr Band	Call for Availability
39	WPW10348409	Screw, Mounting	$4.80  In-Stock Retail: $4.59
40	10436601	Cover, Shelf Rail L.h.	$2.10 Special Order
41	10436602	Cover, Shelf Rail	$23.10 Special Order
42	10681401	Rail, Painted	$4.00 Special Order
43	10513502	Band, Mk Control	Call for Availability
44	WP10551502	Clip-toe Grille   (Replaces: 10551501)	$4.80  In-Stock Retail: $4.59
45	10505801	Frame, Glass Shelf	$19.30 Special Order
46	D7599002	Ladder, Center	Call for Availability
NI	10480703	Ass`y, Split Shelf	Call for Availability
