Maytag BZ20QG (BOM: P1125507W G) Parts List

Popular Searches: (Click to search)    btm  defrost  evap  fan  hinge  kit  motor  ptc  relay  screw  shim  thermostat  timer


Select a Diagram

01 - Cabinet Back

02 - Cabinet Bottom And Back

03 - Cabinet Interior

04 - Compressor Compartment

05 - Controls And Lamps

06 - Divider And Evap

07 - Fz Door

08 - Ref Door

09 - Ref Door And Trim Parts

Select Diagram ... 01 - Cabinet Back 02 - Cabinet Bottom And Back 03 - Cabinet Interior 04 - Compressor Compartment 05 - Controls And Lamps 06 - Divider And Evap 07 - Fz Door 08 - Ref Door 09 - Ref Door And Trim Parts

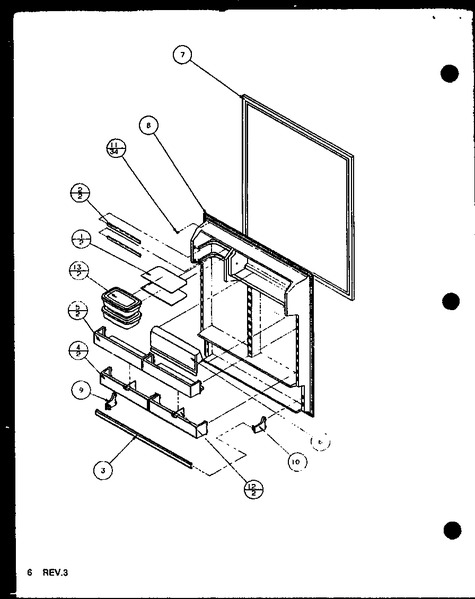

08 - Ref Door   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	10391101	Shelf Sec. Service	Call for Availability
2	10304101	Extrusion Shelf	Call for Availability
3	C8907236	Retainer Pkg	Call for Availability
4	D7574517	Retainer Cantilever Pkg	Call for Availability
5	D7565417	Shelf Door	$35.90 Special Order
6	D7805713	Door Dairy	Call for Availability
7	D7605116Q	Gasket, Door (Replaces: D7605116)	$115.40 Special Order
		Gasket, Door	Call for Availability
8	10289501	Liner Ref Door	Call for Availability
9	D7681803	Cap, Pkg Retainer End	Call for Availability
10	D7681804	Cap, Pkg Retainer End	Call for Availability
11	M0219730	Screw	$6.30 Special Order
12	D7806104	Snugger Door Shelf	Call for Availability
13	D7806405	Container Sec. Ser.	Call for Availability
