Whirlpool ED22MMXRWR4 Parts List

Popular Searches: (Click to search)    16``  access  almond  black  dispenser  door  drier  drum  grease  ice  kit  paint  pressurized  screw  silicone  spray  touch  tube  valve  white


Select a Diagram

02 - Cabinet

03 - Breaker And Partition

04 - Refrigerator Door

05 - Freezer Door

06 - Freezer Liner

07 - Dispenser Front

08 - Airflow

09 - Refrigerator Interior , Lit/optional

10 - Unit

11 - Ice Maker

12 - Airflow And Control

Select Diagram ... 02 - Cabinet 03 - Breaker And Partition 04 - Refrigerator Door 05 - Freezer Door 06 - Freezer Liner 07 - Dispenser Front 08 - Airflow 09 - Refrigerator Interior , Lit/optional 10 - Unit 11 - Ice Maker 12 - Airflow And Control

04 - Refrigerator Door   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	1100384	Refrigerator, Door Panel (platinum)	Call for Availability
	943197	Refrigerator, Door Panel (white)	Call for Availability
	943199	Refrigerator, Door Panel (golden Harvest)	Call for Availability
	943201	Refrigerator, Door Panel (almond)	Call for Availability
	1100383	Refrigerator, Door Panel (toast)	Call for Availability
2	992245	Tap Plate	$4.40 Special Order
3	4318165	Door, Cam Upper	$15.60  In-Stock Retail: $15.18
4	WP489069	Screw, 8 X 1/2	$4.80 Special Order
5	2195950	Bracket, Door Stop   (Replaces: 2155332 988420)	$4.40 Special Order
6	988421	Shim	$4.40 Special Order
7	798639	Screw, 8 X 5/8	$12.80 Special Order
8	509929	Cap, Hinge	$4.40 Special Order
9	534927	Hole Plug	Call for Availability
10	836120	Retainer, Side	Call for Availability
11	836121	Retainer, Top & Bottom	$5.30 Special Order
12	2188404A	Door, Gasket Magnetic (Replaces: 939565)	$175.70  In-Stock Retail: $171.38
13	WP681414	Screw ((repair))	$4.80 Special Order
	WP489069	Screw, No.7 X 1/2	$4.80 Special Order
14	1119757	Handle, Center (for Platinum Model Only)	$63.20 Special Order
	1108792	Handle, Center	Call for Availability
15	1109189	Center End Cap (2)   (Replaces: 935103)	$61.30 Special Order
16	935075	Shim, Handle Center (2)	Call for Availability
17	941242	Screw Anchor (2)	$4.40 Special Order
18	WP488729	Screw, 8 X 1/2   (Replaces: 489084)	$4.80  In-Stock Retail: $4.59
19	1108796	Insert, Handle (top) (toast)	$17.30 Special Order
	1108793	Insert, Handle (top) (white)	$16.80 Special Order
	1108794	Insert, Handle (top) (golden Harvest)	$17.30 Special Order
	1116179	Insert, Handle (top) (almond)   (Replaces: 1108795)	$51.70 Special Order
	1108797	Insert, Handle (top) (platinum)	$18.10 Special Order
20	1108802	Insert, Handle (bottom) (platinum)	Call for Availability
	1108798	Insert, Handle (bottom) (white)	Call for Availability
	1108799	Insert, Handle (bottom) (golden Harvest)	Call for Availability
	1108800	Insert, Handle (bottom) (almond)	Call for Availability
	1108801	Insert, Handle (bottom) (toast)	Call for Availability
21	2194770	Retainer Insert	$40.90 Special Order
22	942081	Retainer, Insert	$15.30 Special Order
23	2156220	End Cap   (Replaces: 941259)	$14.10 Special Order
24	935106	End Cap Insert	$8.10 Special Order
25	489284	Screw, 6-32 X 1/2	$4.40 Special Order
26	489090	Screw, 10-32 X 3/8	Call for Availability
27	988671	Interior Door, Panel	Call for Availability
28	1108786	Trim, Door Shelf	Call for Availability

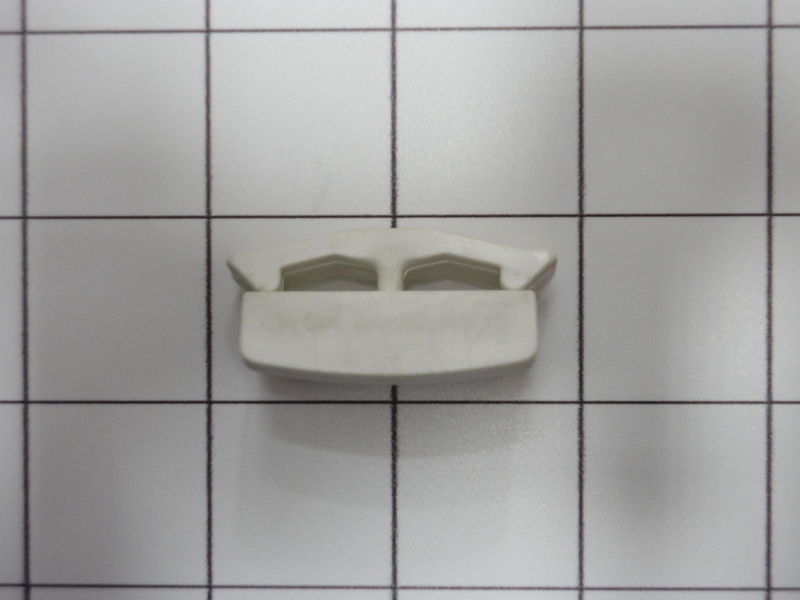

29	WP839904	Retainer, Door Trim	$4.80 Special Order
30	1108787	Trim Door Shelf	Call for Availability
31	988709	Retainer Door Trim	Call for Availability
32	1108788	Compartment Door	Call for Availability
33	983804	Shelf Ladder	$16.10 Special Order
34	537095	Clip, Expansion	Call for Availability
35	WP488729	Screw, 8 X 1/2	$4.80  In-Stock Retail: $4.59
37	945116	Insert, Nameplate	Call for Availability
38	978601	Tape Strip	$8.80 Special Order
39	1108789	Shelf, Door Cantilever	$124.50 Special Order
41	WP2151651	Tray, Butter	$6.00 Special Order
42	WP1104787	Shim, Door Closer Cam	$4.80 Special Order
