Whirlpool ED22MMXRWR2 Parts List

Popular Searches: (Click to search)    16``  access  almond  black  dispenser  door  drier  drum  grease  ice  kit  paint  pressurized  screw  silicone  spray  touch  tube  valve  white


Select a Diagram

02 - Cabinet

03 - Breaker And Partition

04 - Refrigerator Door

05 - Freezer Door

06 - Freezer Liner

07 - Dispenser Front

08 - Airflow

09 - Refrigerator Interior , Lit/optional

10 - Unit

11 - Ice Maker

12 - Airflow And Control

Select Diagram ... 02 - Cabinet 03 - Breaker And Partition 04 - Refrigerator Door 05 - Freezer Door 06 - Freezer Liner 07 - Dispenser Front 08 - Airflow 09 - Refrigerator Interior , Lit/optional 10 - Unit 11 - Ice Maker 12 - Airflow And Control

05 - Freezer Door   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	1101382	Door, Freezer (platinum)	Call for Availability
	945025	Door, Freezer (white)	Call for Availability
	945027	Door, Freezer (golden Harvest)	Call for Availability
	945029	Door, Freezer (almond)	Call for Availability
	1101381	Door, Freezer (toast)	Call for Availability
2	534927	Plug, Hole	Call for Availability
3	992245	Tap Plate	$4.40 Special Order
4	WP939101	Screw, Anchor	$4.80 Special Order
6	991415	Tube, Door Wiring	Call for Availability
9	851373	Plug, Crossover (includes Illus. 10)	Call for Availability
10	851649	Connector, Plug	Call for Availability
11	4318165	Door, Closer	$15.60  In-Stock Retail: $15.18
12	WP489069	Screw, 8 X 1/2	$4.80 Special Order
13	988421	Shim	$4.40 Special Order
14	2195950	Bracket, Door Stop   (Replaces: 2155332 988420)	$4.40 Special Order
15	798639	Screw, 8 X 5/8	$12.80 Special Order
	488930	Screw (repair)	$4.40 Special Order
16	938649	Insulation, Dispenser	$33.60 Special Order
17	836120	Retainer, Side (2)	Call for Availability
18	836122	Retainer, Top & Bottom (2)	Call for Availability
19	2188405A	Gasket, Door	$203.80 Special Order
20	WP681414	Screw, 10-12 X 3/8	$4.80 Special Order
	WP489069	Screw, 7 X 1/2	$4.80 Special Order
21	935105	End, Cap Handle	$29.30 Special Order
22	1109189	Center, End Cap   (Replaces: 935103)	$61.30 Special Order
23	1108814	Handle, Center	Call for Availability
	1119757	Handle, Center (for Platinum Model Only)	$63.20 Special Order
24	935076	Shim, Handle End	$4.40 Special Order
25	935075	Shim, End Center	Call for Availability
26	941242	Screw Anchor	$4.40 Special Order
27	WP488729	Screw, 8 X 1/2 (3)   (Replaces: 489084)	$4.80  In-Stock Retail: $4.59
29	1108794	Insert, Handle (top) (golden Harvest)	$17.30 Special Order
	1108796	Insert, Handle (top) (toast)	$17.30 Special Order
	1108797	Insert, Handle (top) (platinum)	$18.10 Special Order
	1116179	Insert, Handle (top) (almond)   (Replaces: 1108795)	$51.70 Special Order
	1108793	Insert, Handle (top) (white)	$16.80 Special Order
30	1108817	Insert, Handle (extension) (almond)	Call for Availability
	1108819	Insert, Handle (extension) (platinum)	Call for Availability
	1108818	Insert, Handle (extension) (toast)	Call for Availability
	1108815	Insert, Handle (extension) (white)	Call for Availability
	1108816	Insert, Handle (extension) (golden Harvest)	Call for Availability
31	942081	Retainer, Insert	$15.30 Special Order
32	2156220	End Cap   (Replaces: 941259)	$14.10 Special Order
33	489090	Screw, 10-32 X 5/8	Call for Availability
34	987873	Cover, End Cap	$4.40 Special Order
36	935106	End Cap, Insert Retainer	$8.10 Special Order
37	489284	Screw, 6-32 X 1/2	$4.40 Special Order
38	227991	Connector, Screw	Call for Availability
39	987188	Ice Chute	$34.60 Special Order
40	1101396	Interior Door Panel	$108.50 Special Order
41	988847	Door, Shelf Trim	$27.00 Special Order
42	1108804	Shelf, Trim (4)	Call for Availability

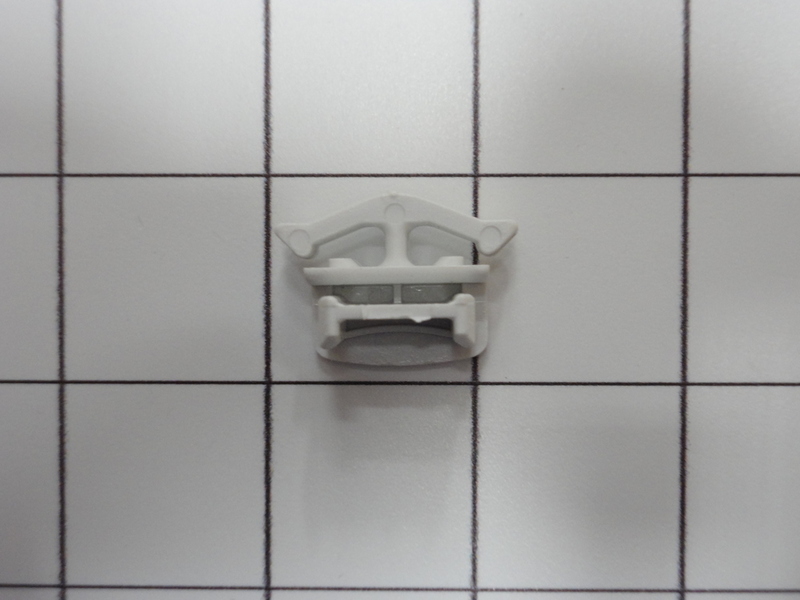

43	WP839975	Door, Retainer (2) (Replaces: 839975)	$4.80  In-Stock Retail: $4.59
44	WP839904	Door, Retainer (8)	$4.80 Special Order
45	2194770	Retainer Insert	$40.90 Special Order
46	WP1104787	Shim, Door Closer Cam	$4.80 Special Order
