Maytag BCI21V1W (BOM: P1325029W W) Parts List

Popular Searches: (Click to search)    capacitor  clip  control  defrost  evap  evaporator  fan  heater  ice  maker  overload  relay  screw  speed  temp  thermostat  timer  tubing  valve  water


Select a Diagram

01 - Cabinet Back

02 - Controls & Light Covers

03 - Door Assy

04 - Door Handles & Accessories

05 - Evaporator & Freezer Control Assy

06 - Ice Maker Assy & Parts

07 - Insulation & Rollers

08 - Light Switches & Drain Funnel

09 - Machine Compartment

10 - Shelving Assy

Select Diagram ... 01 - Cabinet Back 02 - Controls & Light Covers 03 - Door Assy 04 - Door Handles & Accessories 05 - Evaporator & Freezer Control Assy 06 - Ice Maker Assy & Parts 07 - Insulation & Rollers 08 - Light Switches & Drain Funnel 09 - Machine Compartment 10 - Shelving Assy

07 - Insulation & Rollers   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
21	M0227217	Screw, Sm	Call for Availability
31	10513302	Tube, Drain	$16.50 Special Order
41	M0102303	Clamp	$4.40 Special Order
51	10585508	Hinge,(w)btm-e Ct	Call for Availability
61	10447905	Shim, Hinge (btm)	Call for Availability
71	10447906	Shim Hinge	$19.00 Special Order
111	A3076901	Plug-button	$5.70 Special Order
121	10584802	Cover, Lower Hinge (white)	Call for Availability
131	10450701	Roller, Rear	$18.50 Special Order
141	10450901	Axle, Roller	Call for Availability
151	WP67006715	Screw, Sm	$4.80 Special Order
161	M0204336	Screw, Adj Roller	Call for Availability

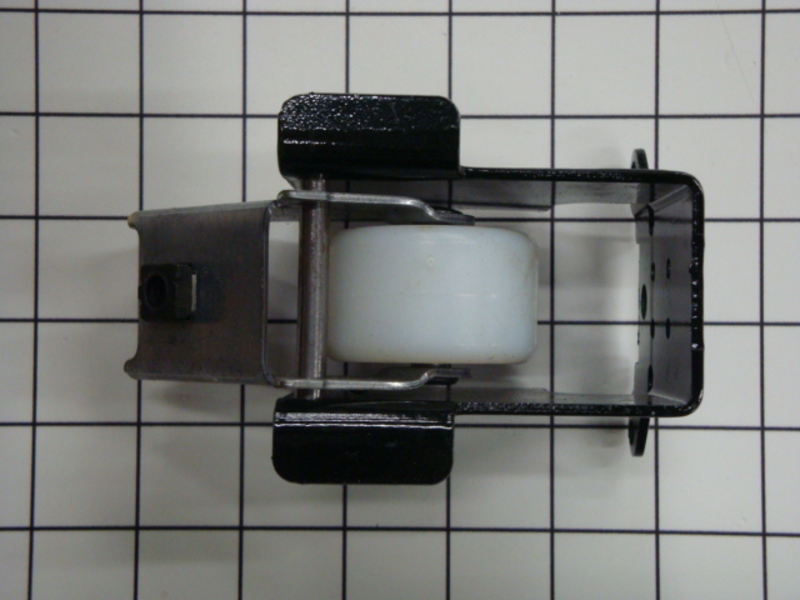

171	12452601Q	Assy, Roller Bracket	Call for Availability
181	M0260242	Screw, Tf	$4.40 Special Order
191	W11573574	Screw, Sm	$8.70  In-Stock Retail: $8.47
201	10663001	Insul., R. Foot	$4.40 Special Order
251	10427112	Brace	$8.00 Special Order
351	W11177593	Brake, Foot	$7.60  In-Stock Retail: $7.41
531	M0310342	Plug, Button (wht)	Call for Availability
