02 - Top And Cabinet Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W11646252	Owner's Manual	Call for Availability
1A	W11678279	Quick Start Guide	Call for Availability
1B	W11685930	Energy Guide	Call for Availability
2	W11739824	Assembly, Console (black)	$487.50 Special Order
3	W11667935	Handle, Drawer (black)	Call for Availability
4	W11670388	Jumper, Harness Hmi (board To Board)	Call for Availability
5	WPW10612925	Badge   (Replaces: W10612925)	$25.40  In-Stock Retail: $24.78
6	W11316770	Edge Guard	$13.70 Special Order
7	W11568617	Screw	$8.70 Special Order
8	W11314678	Bracket, Console	$90.20 Special Order
9	W11458348	Channel, Water	$18.00 Special Order
10	W11633291	Panel, Front (black)	$135.10 Special Order
11	W11573574	Screw	$8.70  In-Stock Retail: $8.47
12	WPW10208415	Hinge, Base (Replaces: W10208415)	$113.70  In-Stock Retail: $110.90
13	W10299097	Bracket, Hinge	$12.90 Special Order
14	W11661566	Screw	$8.70 Special Order
15	W11733849	Lock, Door	$40.20 Special Order
16	WP8540282	Screw (Replaces: 8540282)	$7.60  In-Stock Retail: $7.38
17	W11353000	Cabinet (black)	$273.80 Special Order
18	W11675697	Leveling Leg Assembly	$8.20 Special Order
19	W10208380	Screw And Bushing Assembly	$43.30 Special Order
20	W11316246	Pressure Switch	$109.10  In-Stock Retail: $106.43

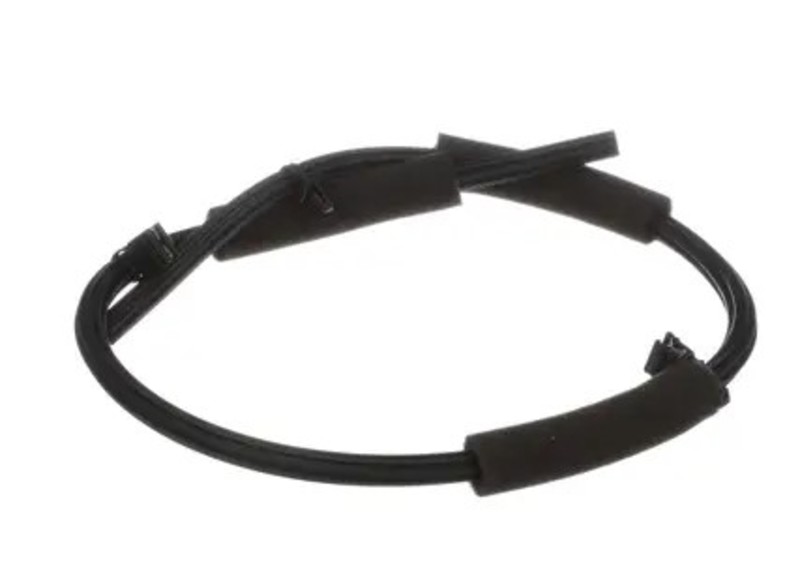

21	W11456953	Hose, Pressure Switch	$19.40  In-Stock Retail: $18.90
22	W11689659	Rfi Filter	$12.50 Special Order
23	W11316769	Bracket, Drain Hose	$12.90 Special Order
24	W11719534	Appliance Control Unit (acu)	Call for Availability
25	W11318750	Screw	$8.20 Special Order
26	W10306501	Screw	$5.80 Special Order
27	W11739822	Harness, Main Lower	$128.10 Special Order
28	W10467484	Brace, Top	$26.00 Special Order
29	W10245452	Retainer, Spring	$25.90 Special Order
30	W11314674	Foam Pad	$12.20 Special Order
31	W11353016	Bracket, Rear	$13.90 Special Order
32	W11328714	Top (black)	$182.90 Special Order
33	W11315708	Panel, Rear	$214.50 Special Order
34	W11316254	Cord, Power	$74.90 Special Order
35	W10846509	Screw	$4.80 Special Order
36	W11551765	Hose, Drain (external)	$19.40  In-Stock Retail: $18.90
37	WPW10280024	U-bend, Drain Hose (Replaces: W10280024)	$47.90  In-Stock Retail: $46.69
38	WP356138	Clamp, Hose (Replaces: 356138)	$4.80 Special Order
39	WPW10339879	Cable Tie	$4.80 Special Order
40	W11316629	Bolt, Transport (short)	$24.40 Special Order
