Whirlpool WFES5030RZ0 Parts List

Popular Searches: (Click to search) 2oz accessory and black broiler cleaner cooktop door foot grid leveling paint pan parts pressurized screw sensor spray touch white

Select a Diagram

02 - Cooktop Parts

03 - Control Panel Parts

04 - Chassis Parts

05 - Door Parts

06 - Drawer Parts

07 - Optional Parts (not Included)

01 - Cover Sheet

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
1	W11726508	Handle And Vent Assembly (black Stainless)	$134.00 Special Order
1A	W11730234	Handle And Vent Assembly (stainless)	$134.00 Special Order
2	W10896982	Screw (Replaces: W10465158)	$4.80 Special Order
3	WPW10316950	Frame, Glass	$51.40 Special Order
4	WP9761344	Liner, Door	$212.80 Special Order
5	WPW10031790	Screw (Replaces: W10031790)	$4.80 In-Stock Retail: $4.59
6	WP8053948	Glass, Inner	$124.40 In-Stock Retail: $121.33
7	W11539580	Retainer, Insulation	$135.30 Special Order
8	WPW10388635	Hinge, Door (active) (Replaces: W10388635)	$58.20 In-Stock Retail: $56.70
9	WPW10278991	Insulation, Door Strip	$62.00 Special Order
10	W10761018	Trim, Side (black (left))	$51.20 In-Stock Retail: $49.87
10A	W10761014	Trim, Side (black (right))	$51.20 In-Stock Retail: $49.87
11	WP355214	Screw	$4.80 In-Stock Retail: $4.59
12	W11178521	Badge (Replaces: W10884775)	$36.90 In-Stock Retail: $35.98
13	W10777162	Screw (Replaces: W10031780)	$4.80 In-Stock Retail: $4.59
14	W11502236	Strap, Door	$15.00 In-Stock Retail: $14.63
15	WPW10200660	Screw (Replaces: W10200660)	$4.80 In-Stock Retail: $4.59
16	W11741357	Glass Assembly, Outer Door (black)	$104.10 Special Order
17	W11569689	Trim, Lower (black)	$33.70 In-Stock Retail: $32.87

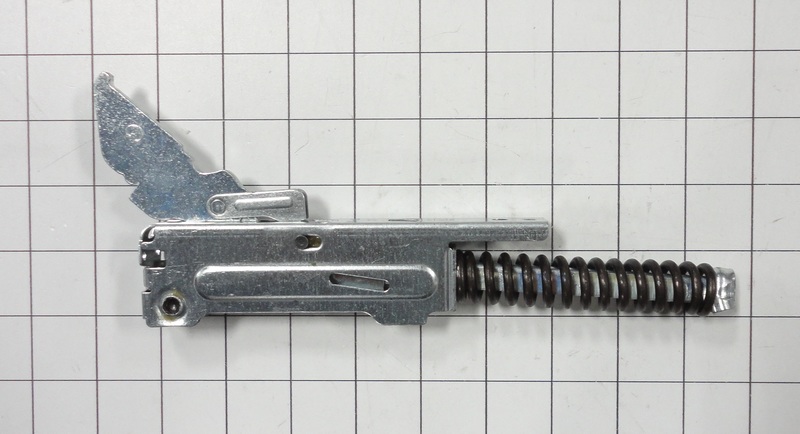

18	WPW10440013	Hinge, Door (active) (Replaces: W10440013)	$54.00 In-Stock Retail: $52.68
