Whirlpool YWFES3530RS0 Parts List

Popular Searches: (Click to search)    accessory  and  broiler  cleaner  cleaners  cooktop  door  foot  grid  paint  pan  parts  polishes  screw  sensor  spray  stainless  steel  touch  white


Select a Diagram

02 - Cooktop Parts

03 - Control Panel Parts

04 - Chassis Parts

05 - Door Parts

06 - Drawer Parts

07 - Optional Parts (not Included)

01 - Cover Sheet

Select Diagram ... 02 - Cooktop Parts 03 - Control Panel Parts 04 - Chassis Parts 05 - Door Parts 06 - Drawer Parts 07 - Optional Parts (not Included) 01 - Cover Sheet

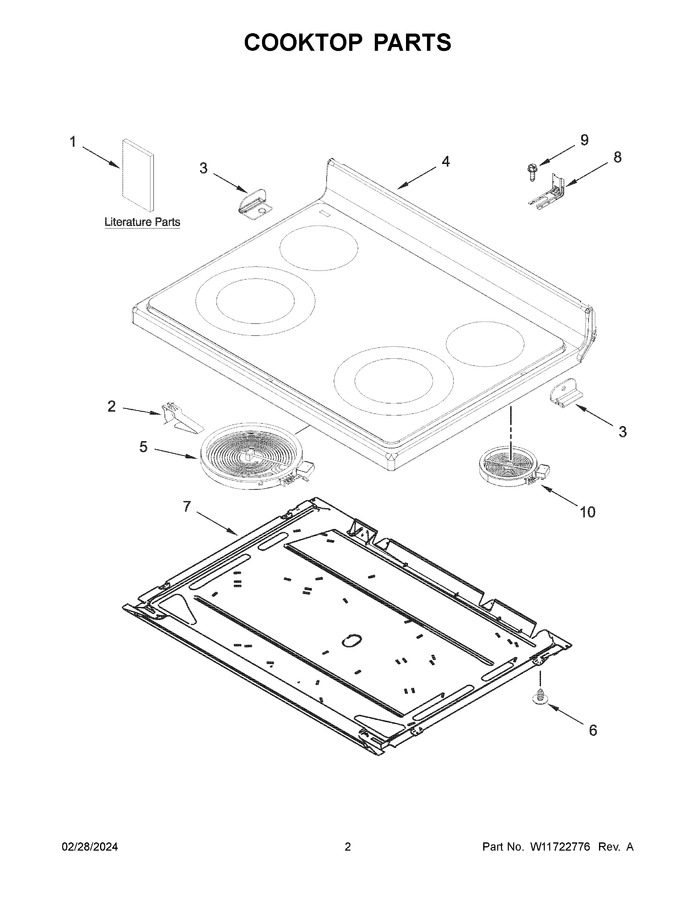

02 - Cooktop Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W11618614	Quick Start Guide	Call for Availability
1A	W11617173	Owners Manual	Call for Availability
1B	W11626731	Tech, Sheet	Call for Availability
2	W11663556	Spring, Element	$8.70 Special Order
3	W10607641	Bracket, Cooktop (left)	$20.10 Special Order
3A	W10607642	Bracket, Cooktop (right)	$20.10 Special Order
4	W11719704	Cooktop (black)   (Replaces: W11629153)	$251.90 Special Order
5	W11517959	Element (3000 And 1400w) (left Front And Right Front)	$115.00  In-Stock Retail: $112.12
6	WP3196557	Screw (Replaces: 3196169)	$4.80  In-Stock Retail: $4.59
7	W11244088	Pan, Radiant Element	$129.20 Special Order
8	W11447673	Bracket, Anti-tip	$18.00  In-Stock Retail: $17.49
9	7101P48560	Screw, Anti-tip Kit	Call for Availability
10	W11171119	Element (1200w) (right Rear)	$182.10  In-Stock Retail: $177.65
NI	W11134845	Harness, Cooktop (right)	$114.20 Special Order
	W11675846	Harness, Cooktop (left)	$21.90 Special Order
	ARI7C4B781E09F4C135E8A56A812FBF5A4D	Following Parts Not Illustrated	Call for Availability
	W11707257	Main, Harness	$158.20 Special Order
