Whirlpool EC5150WV2 Parts List

Popular Searches: (Click to search)    16``  2oz  36`  36``  4``  access  adhesive  almond  clamp  enamel  hose  insulation  paint  permagum  sealer  spray  strips  tube  valve  vinyl


Select a Diagram

01 - Cabinet Liner And Door, Literature

02 - Evaporator, Ice Cutter Grid And Water

03 - Unit

04 - Escutcheon And Control Components

05 - Pump

06 - Drain Pump

07 - Optional

Select Diagram ... 01 - Cabinet Liner And Door, Literature 02 - Evaporator, Ice Cutter Grid And Water 03 - Unit 04 - Escutcheon And Control Components 05 - Pump 06 - Drain Pump 07 - Optional

06 - Drain Pump   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	758913	Pump, Condensate Drain	Call for Availability

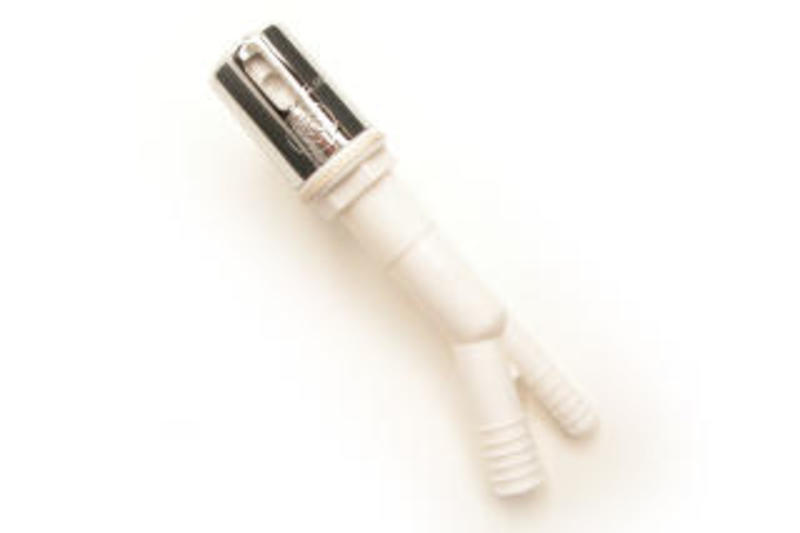

2	WP300096	Air Gap	$36.90 Special Order
3	770966	Hose, 7/8 I.d. X 20.0`` (air Gap To Discharge)	Call for Availability
4	758915	Hose, 3/8 I.d. X 14 3/8`` (pump To Air Gap)	Call for Availability
5	596807	Grommet, Mtg (2)	Call for Availability
6	W10759522	Screw, S.m. No.8-15 X 3/4`` (2)	$4.80 Special Order
7	681245	Washer (2)	$4.40 Special Order
8	596572	Clamp, Hose (2)	$4.40 Special Order
9	758918	Connector, Hose	Call for Availability
10	WP285655	Clamp, Hose (2) (Replaces: 65349)	$4.80  In-Stock Retail: $4.59
11	758919	Bushing, Cord	Call for Availability
12	758840	Pump, Condensate Drain (complete Kit)	Call for Availability
13	593577	Hose, 5/8 X 4`` (connector To Air Gap)	Call for Availability
14	596023	Clamp, Hose (2)	$4.40 Special Order
15	593369	Hose, 1/2 I.d. X 12`` (bin To Pump)	Call for Availability
