Frigidaire 80462172F Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    16"  anti  assy  black  block  bottom  door  frame  kit  light  oven  probe  receptacle  screw  sims  switch  temp  template  terminal  tip


Select a Diagram

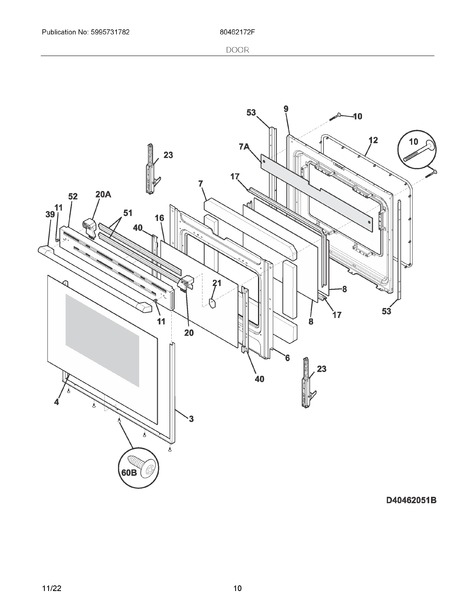

05 - Door   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
3 5303935377 Trim Kit-door, 3 Sided, Black, W/tape $42.10
Special Order
4 316355602 Glass, Door, Black, W/foil $143.50
Special Order
6 316406328 Shield, Wool $57.50
Special Order
7 316405600 Insulation, Oven Door $55.40
Special Order
7A 5304518033 Insulation, Door Liner, Top $30.00
Special Order
8 5304503232 Glass, Oven Door, Heat Barrier, Inner, Hrc2   (Replaces: 316117502) $84.60
 In-Stock
Retail: $82.49
9 316423721 Liner, Oven Door $111.00
Special Order
10 316439505 Screw, Handle Mtg., #10-24 X 2, (2) $5.20
 In-Stock
Retail: $4.99
11 5304494420 Nut, Hour Glass, Handle Mtg. Call for Availability
12 5304498835 Seal, Oven Door   (Replaces: 316403101) $72.80
 In-Stock
Retail: $70.99
16 316552801 Glass, Door, Airwash $25.00
Special Order
17 5304504811 Spacer, Glass $17.00
Special Order
20 316353004 Spacer, Door, Rh $18.00
Special Order
20A 316353005 Spacer, Door, Lh $18.00
Special Order
21 316533801 Plate, Distribution, Load $4.10
Special Order
23 5304524991 Hinge, Oven Door, Blue, Dual Spring $51.50
Special Order
39 5304525007 Handle, Stainless $212.50
Special Order
40 316552401 Bracket, Airwash Glass, (2) $19.00
Special Order
51 316355300 Insulation, Door, Top Cap $5.00
Special Order
52 5304516890 Trim, Door Cap, Stainless, Upper $83.50
Special Order
60B 316021109 316021109 Screw, 8-18 X 0.5, Chrome $10.30
Special Order
NI 316483102 Label, Anti-tip $2.60
Special Order
5303285179 Screw, Wafer Head, 8-32t X 0.500, Black, 44* $9.80
 In-Stock
Retail: $9.49
316021109 316021109 Screw, Hex Head Cup Pt, 8-18 X 0.375, Black
(Replaces: 316021105) 		$10.30
Special Order
NIA 5303288572 Screw-handle Mtg $10.00
Special Order
318165800 Spacer, Glass, Foam $12.90
Special Order
316355100 Insulation, Flue/side/door $21.00
Special Order
316418900 Screw, Sims Lp, #8-32 X 5/16", Black $10.30
 In-Stock
Retail: $9.99
