Whirlpool EB19MKXSF01 Parts List

Popular Searches: (Click to search)    16``  access  almond  black  can  drier  feet  grease  gum  kit  paint  pressurized  screw  silicone  spray  touch  tube  valve  white  xenamel


Select a Diagram

02 - Door

03 - Cabinet

04 - Liner , Lit/optional

05 - Interior

06 - Breaker And Control

07 - Unit

Select Diagram ... 02 - Door 03 - Cabinet 04 - Liner , Lit/optional 05 - Interior 06 - Breaker And Control 07 - Unit

02 - Door   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	1110304	Door, Refrigerator (also Order Item 31) (white)	$210.60 Special Order
	1110306	Door, Refrigerator (also Order Item 31) (almond)	Call for Availability
	1110305	Door, Refrigerator (also Order Item 31) (golden Harvest)	$112.80 Special Order
	1110308	Door, Refrigerator (also Order Item 31) (platinum)	$112.80 Special Order
	1110307	Door, Refrigerator (also Order Item 31) (toast)	$206.70 Special Order
2	2188454A	Gasket, Refrigerator Door   (Replaces: 4387584 986009)	Call for Availability
3	836118	Retainer, Gasket Top & Bottom	$18.10 Special Order
4	482559	Panel, Interior Door	Call for Availability
5	WP2151651	Tray, Butter	$6.00 Special Order
6	1108977	Door, Butter	Call for Availability
7	1108975	Trim, Door Shelf (3)	Call for Availability

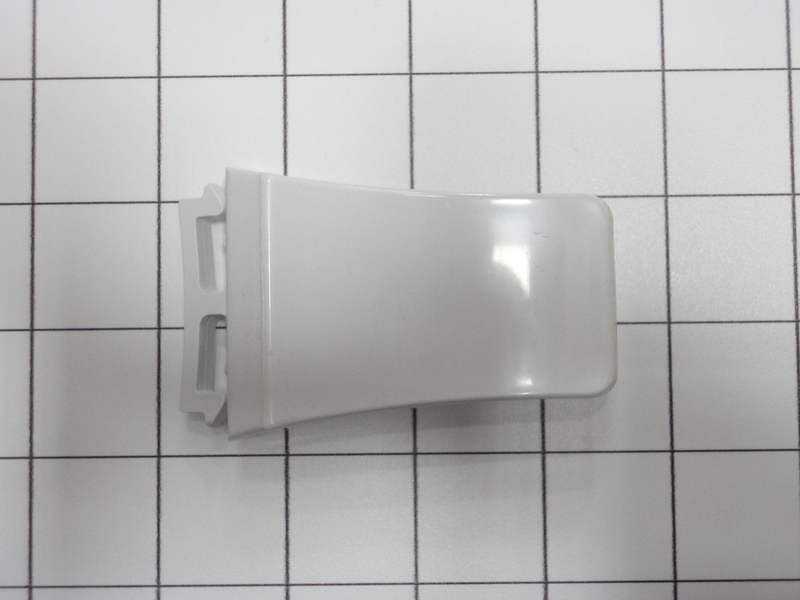

8	WP849996	Retainer, Door Shelf Trim (6)	$4.80 Special Order
9	WP489069	Screw, 7 X 1/2	$4.80 Special Order
	WP681414	Screw ((repair))	$4.80 Special Order
10	935075	Shim, Center End Cap	Call for Availability
11	1110314	Door, Freezer (also Order Item 31) (almond)	$202.10 Special Order
	1110312	Door, Freezer (also Order Item 31) (white)	$202.10 Special Order
	1110313	Door, Freezer (also Order Item 31) (golden Harvest)	Call for Availability
	1110316	Door, Freezer (also Order Item 31) (platinum)	Call for Availability
	1110315	Door, Freezer (also Order Item 31) (toast)	Call for Availability
12	2188458A	Gasket, Freezer Door (Replaces: 4387577 986016)	Call for Availability
13	1108978	Door, Utility	Call for Availability
14	4388060	Panel, Interior Door	$104.70 Special Order
15	1109059	Trim, Door Shelf (2)	$22.90 Special Order
16	WP839904	Retainer, Door Shelf Trim (4)	$4.80 Special Order
17	WP2212648	Plug, Hole (white)	$4.80 Special Order
	1100188	Hole Plug (toast)	Call for Availability
	1100189	Hole Plug (platinum)	Call for Availability
	WP2212648	Plug, Hole (golden Harvest)	$4.80 Special Order
	989196	Plug, Hole (almond)	$4.40 Special Order
18	986008	Retainer Gasket, Side (2)	$19.20 Special Order
19	1100197	Hole Plug (2) (platinum)	Call for Availability
	534927	Plug, Hole (2) (white)	Call for Availability
	1100196	Hole Plug (2) (toast)	Call for Availability
	534927	Plug, Hole (2) (golden Harvest)	$4.40 Special Order
	534927	Plug, Hole (2) (almond)	$4.40 Special Order
20	WP8281206	Screw, 8-15 X 1/2 (Replaces: 489028)	$4.80 Special Order
21	WP488729	Screw, 8 X 1/2   (Replaces: 489084)	$4.80  In-Stock Retail: $4.59
22	944157	Cap, Handle	Call for Availability
23	1119757	Handle (center) (for Platinum Model Only)	$63.20 Special Order
	1109048	Handle, Center	Call for Availability
24	978601	Tape Strip	$8.80 Special Order
25	943188	Spacer, Handle	$6.10 Special Order
26	945116	Nameplate	Call for Availability
27	1109189	Cap, Handle (bottom)	$61.30 Special Order
29	488934	Screw (repair)	Call for Availability
	488933	Screw, 10-32 X 5/8 (2)	Call for Availability
30	657077	Door Handle	Call for Availability
31	876029	Kit, Insulation (required When Replacing Exterior Door Panel)	$226.70 Special Order
32	986015	Retainer, Gasket (side) (2)	$7.60 Special Order
33	W10833053	Plate, Tap (2)   (Replaces: 943185)	$9.90 Special Order
34	WP488920	Screw, 8 X 5/8 (2) (Replaces: 488920)	$4.80  In-Stock Retail: $4.59
	488923	Screw (repair)	$4.40 Special Order
35	WP488921	Screw, 8 X 1/2 (2)	$4.80 Special Order
	488930	Screw (repair)	$4.40 Special Order
36	509929	Cap, Hinge Sleeve	$4.40 Special Order
40	1111705	Medallion	$4.40 Special Order
41	WP488729	Screw, 8 X 1/2	$4.80  In-Stock Retail: $4.59
42	1107329	Clip, Medallion	Call for Availability
43	W11745278	Bracket, Door Stop   (Replaces: 944036)	$8.40  In-Stock Retail: $8.16
44	989711	Shim, Handle	Call for Availability
45	488935	Screw, 10-32 X 1/2	$4.40 Special Order
48	W11745278	Bracket, Door Stop   (Replaces: 944035)	$8.40  In-Stock Retail: $8.16
49	WP939101	Screw, Anchor	$4.80 Special Order
50	4387279	Screw, 6-20 X 3/8 (2)   (Replaces: 489022)	$34.50 Special Order
51	1111940	Insert, Handle	Call for Availability
	1111943	Insert, Handle (black) (for Platinum Model Only)	Call for Availability
52	935873	Retainer, Insert	$60.70 Special Order
54	1124684	Endcap, Insert Retainer   (Replaces: 1105804)	Call for Availability
