Frigidaire ELFE763CAT0 Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    "h"  0  16ab  18b  adhesive  belt  exhaust  flush  head  heater  limiter  mount  pan  poly  rib  safety  screw  thermal  thermostat  valve


Select a Diagram


03 - Front Panel/lint Filter   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
2 131168200 131168200 Screw, Pan Head, 8-18b X 0.31 $10.30
 In-Stock
Retail: $9.99
6 5304521401 Duct Assembly, Air, W/foam Top Seal $105.60
 In-Stock
Retail: $102.99
7 137285100 Screw, Pan Head, #8-18x.750 $12.30
Special Order
8 5304529759 Grill Assembly, Lint, W/moisture Sens $97.00
Special Order
9 5304505259 Screw, Quad Ph Type A, M5 X 0.8 X 14.5, (4) $9.80
Special Order
16 137087000 Screw, Comb Pnhd B, #10-16x.75, (9) $8.20
Special Order
18 131168200 131168200 Screw, 10-16ab X 0.375
(Replaces: 131477000)
$10.30
 In-Stock
Retail: $9.99
19 5304505441 Screw, Pph B, 6-20x.375 $4.50
Special Order
20 5304505111 Gasket, Foam, Front Panel $56.40
Special Order
21 131303300 Screw, Pan Head, 10-16ab X 0.500, Locking $9.80
Special Order
22 5304515428 Panel, Dryer Front, Titanium $199.00
Special Order
25 5304513568 Latch Assembly, Door, W/cover $20.00
 In-Stock
Retail: $19.49
26 134813664 Switch, Door, Grey $28.20
Special Order
26A 5304505258 Harness, Wiring, Door Switch $30.80
Special Order
27 5304529766 Filter Assembly, Lint, Clamshell $76.40
 In-Stock
Retail: $74.49
28 137034500 Clip, Mounting, Cabinet Front $31.30
Special Order
29 131205100 Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive $10.30
Special Order
36 5304523154 Spacer, Drum Roller $16.00
Special Order
37 5304529788 Bracket, Hinge $96.00
Special Order
38 5304529714 Shaft, Drum Roller, Shoulder Bolt $14.90
Special Order
39 5304529779 Hinge Assembly, Nest $57.20
Special Order
40 5304523152 5304523152 Roller Wheel, Assembly, W/bearing $18.50
 In-Stock
Retail: $17.99
41 5304523153 Nut, Lock $6.70
Special Order
42 5304521387 Bulkhead, Front, White $128.50
Special Order
43 5304505118 Bracket, Bulkhead, (4) $10.00
Special Order
46 5304505010 Gasket, Door Seal, Inner $67.20
Special Order
47 5304529789 Frame, Inner Door $82.50
Special Order
48 5304529911 Frame Assembly, Door, External, W/full Lens $121.50
Special Order
51 137241000 Screw, Quad Ph, 10-16 X 0.375 $7.70
Special Order
52 134529600 Screw, Ph, 8-18ab X 0.375 $1.60
Special Order
53 5304529614 Inner Door, Ring, Metal $77.00
Special Order
54 5304505012 Clamp, Door Glass, (2) $13.40
Special Order
56 5304504999 Glass, Dryer Door, Black $101.50
Special Order
57 5304529871 Pin, Hinge $21.00
Special Order
58 5304521399 Lamp Assembly, Drum, W/harness $62.60
Special Order
60 5304521476 Bracket, Support, Drum Lamp $13.00
Special Order
68 134742002 Plug, Hinge Hole, Grey $11.00
Special Order

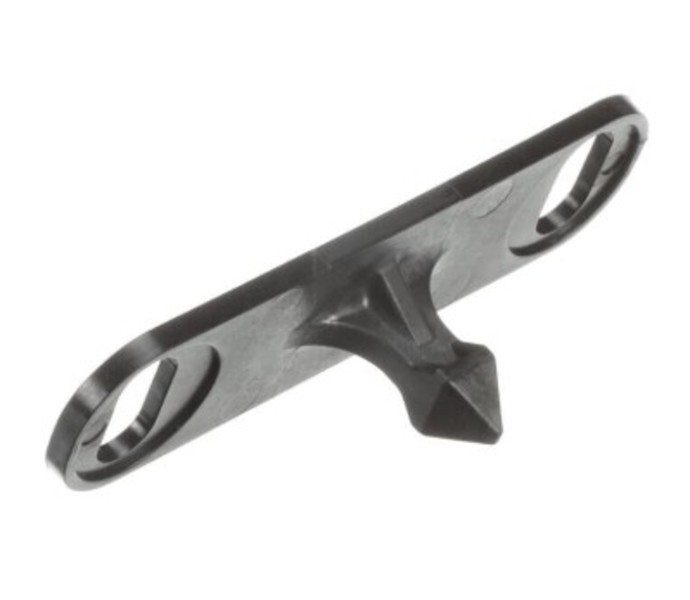

70 5304532444 Striker, Latch, Black   (Replaces: 5304505013) $7.90
 In-Stock
Retail: $7.62
NIA 5308027429 5308027429 Adhesive, High Temp $43.60
Special Order
