Whirlpool DU9700XR6 Parts List

Popular Searches: (Click to search)    almond  also  drain  head  hex  hinge  illus  impeller  kit  lid  order  paint  pin  pressurized  screw  spray  spring  tapping  touch  white


Select a Diagram

01 - Console

02 - Tub , Literature And Optional

03 - Door

04 - Heater, Pump, And Lower Spray Arm

05 - Dishrack

06 - Pump And Motor

07 - Wiring Harness

Select Diagram ... 01 - Console 02 - Tub , Literature And Optional 03 - Door 04 - Heater, Pump, And Lower Spray Arm 05 - Dishrack 06 - Pump And Motor 07 - Wiring Harness

03 - Door   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	3367389	Door, Inner	Call for Availability
2	3367201	Support, Door (r.h.)	Call for Availability
	3367202	Support, Door (l.h.)	Call for Availability
3	675582	Gasket, Door	Call for Availability
4	WP489069	Screw, 8-18 X 1/2 Hex Wash Hd Tapping (2)	Call for Availability
5	4387043	Pin, Lid Hinge (Replaces: 300115)	Call for Availability
6	300239	Button, Retainer (5)	Call for Availability
7	300250	Screw, 8-18 X 3/8 Hi-lo (5)	Call for Availability
8	3368537	Baffle	Call for Availability
9	303978	Baffle	Call for Availability
10	303498	Label, Users Guide	Call for Availability
11	300246	Screen, Vent	Call for Availability
12	3367057	Latch Assembly	Call for Availability
14	302217	Switch, Interlock	Call for Availability
15	300234	Pin, Pivot	Call for Availability
18	304650	Screw, 8-32 X 1-3/4 Truss Head Tapping (2)	Call for Availability
19	304442	Dispenser, Wetting Agent	Call for Availability
20	713080	Washer (2)	Call for Availability
21	718575	Nut, 1-14 Buttress Thread (1)	Call for Availability
22	675454	Cap (Replaces: 303163)	Call for Availability
23	WP304231	Screw, 8 X 1/2 Hi-lo Blunt Point	Call for Availability
26	4387043	Lid, Detergent Dispenser Assembly	Call for Availability
27	WP8066018	Spring, Lid (Replaces: 300106)	Call for Availability
28	301582	Screw, 6-32 X 1 Hex-head Tapping (1)	Call for Availability
32	300119	Lever, Catch	Call for Availability
33	300105	Seal, Lever	Call for Availability
34	WP304231	Screw, 8 X 1/2 Hi-lo Blunt Point (2)	Call for Availability
35	300104	Retainer, Seal	Call for Availability
38	300109	Actuator	Call for Availability
39	WP304231	Screw, 8 X 1/2 Hi-lo Blunt Point (1)	Call for Availability
41	WP302868	Screw, 8-18 X 1/2 Phlps Hex Wash Hd Tapping (2)   (Replaces: 302868)	Call for Availability
42	303906	Barrier, Door	Call for Availability
43	303908	Barrier, Console	Call for Availability
44	W11693756	Screw, 8-18 X 5/8 (2)	Call for Availability
45	304047	Panel, Edging (door)	Call for Availability
46	WP90767	Screw, 8a X 3/8 Ground (1)   (Replaces: 90767)	Call for Availability
48	N/A	Panel, Front	Call for Availability
49	3367207	Trim, Door (l.h.)	Call for Availability
	3367206	Trim, Door R.h.	Call for Availability
50	3367172	Clip, Trim Guard (2)	Call for Availability

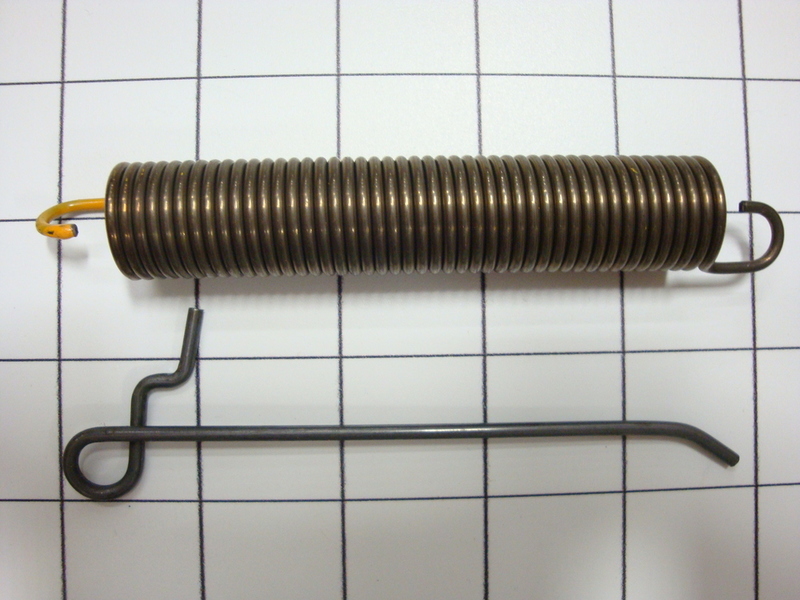

60	674744	Spring, Door	Call for Availability
61	WP716401	Retainer, Spring	Call for Availability
67	718576	Cap, Drip	Call for Availability
68	N/A	Panel, Access	Call for Availability
70	3367671	Plate, Toe	Call for Availability
72	WP302868	Screw, 8-18 X 1/2 Hex-head Tapping (4)   (Replaces: 302868)	Call for Availability
74	WP488627	Screw, 8-18 X 1/2 (4)	Call for Availability
77	300237	Washer	Call for Availability
78	WP90767	Screw, 8a X 3/8 Hex Head Tapping (2)   (Replaces: 90767)	Call for Availability
81	9743825	Shield, Sound (access Panel)   (Replaces: 3382404 3374767 304660)	Call for Availability
82	304661	Shield, Sound (toe Panel)	Call for Availability
84	304444	Screw, 4-20 X 3/8 Torx Pan Hd (2)	Call for Availability
85	304443	Actuator	Call for Availability
86	304391	Rail, Support	Call for Availability
89	3367283	Lever, Release	Call for Availability
90	301957	Spacer, Corrugated	Call for Availability
91	301857	Clip, Wire (2)	Call for Availability
92	3367288	Screw, 8 - 18 (4)	Call for Availability
93	303362	Shield, Harness	Call for Availability
94	3367720	Retainer, Clip	Call for Availability
95	303090	Screw, 8a X 3/8 Hex\ Head\ T\a\pping	Call for Availability
96	303755	Spacer, Corrugated	Call for Availability
97	303753	Trim, Access Panel	Call for Availability
98	303754	Trim, Access Panel Top	Call for Availability
99	302251	Screw, 8 X 1/2 Phlps. Oval Hd Tapping (3)	Call for Availability
