Whirlpool DU900PCDQ3 Parts List

Popular Searches: (Click to search)    agent  also  assembly  black  dispenser  drain  gasket  item  kit  latch  lid  limit  order  paint  spring  switch  thermostat  touch  wet  white


Select a Diagram

01 - Frame And Console

02 - Inner Door

03 - Tub Assembly

04 - Pump And Motor

05 - Dishrack

06 - Miscellaneous, Lit/optional

Select Diagram ... 01 - Frame And Console 02 - Inner Door 03 - Tub Assembly 04 - Pump And Motor 05 - Dishrack 06 - Miscellaneous, Lit/optional

05 - Dishrack   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart

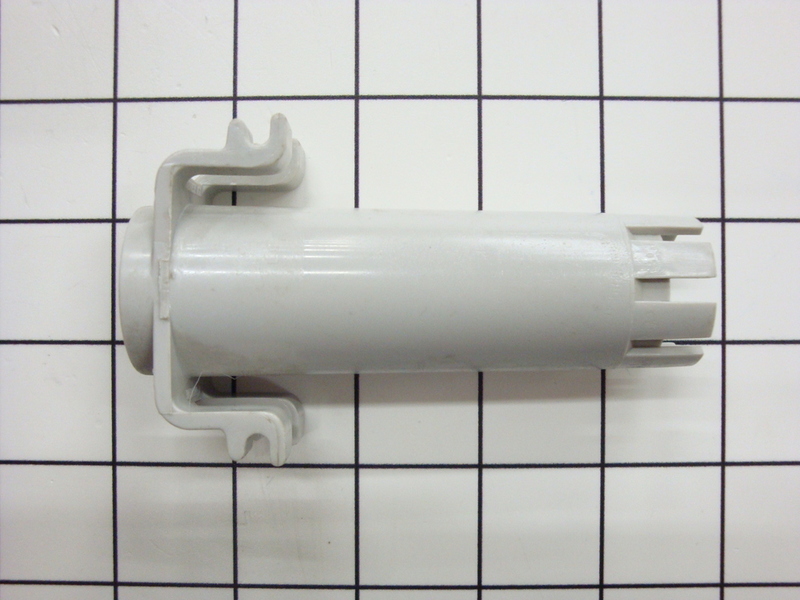

1	W10851031	Support, Arm (also Order Items 2 & 8)	$4.50 Special Order
2	303722	Clip	$4.50 Special Order
3	WP8268829	Spray Arm, Upper (also Order Items 2 & 8)	$36.20 Special Order
4	WP3385142	Bumper (2)	$59.00 Special Order
5	304170	Tower, Pressure (Replaces: 300848)	$55.40 Special Order
6	WP3376961	Wheel & Transport Assembly (4)	$61.80  In-Stock Retail: $60.24
7	W10311986	Dishrack, Lower (includes Items 4 & 6)	$172.90 Special Order

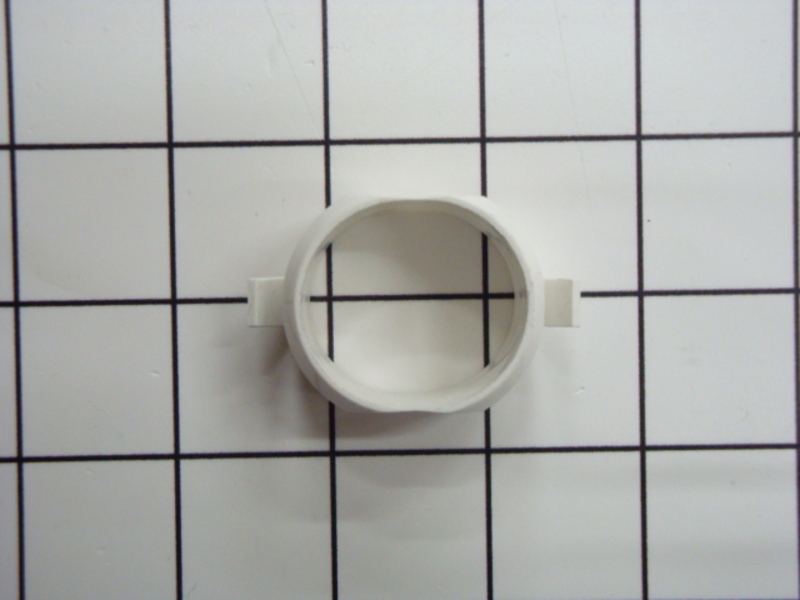

8	3374702	Support, Lock Spray Arm	$4.10 Special Order
9	3380872	Silverware Basket Assembly	$47.30 Special Order
10	3380872	Cover, Basket	$47.30 Special Order
11	300845	End Cap (front Or Rear)	$6.00 Special Order
12	3369071	Track	$51.70 Special Order
13	3374701	Stop, Track (2)	$8.20 Special Order
17	3380863	Wheel & Axle Assembly (4)   (Replaces: 3371581)	Call for Availability
18	W11169039	Dishrack, Upper	$147.60  In-Stock Retail: $143.99
19	717528	Trim, Basket	$9.70 Special Order
20	300086	Handle, Basket	Call for Availability
22	WP3376848	Sprayarm, Lower	$48.50 Special Order
23	WP3367910	Cap, Nozzle (Replaces: 3367910)	$40.00 Special Order
24	WP719576	Bearing, Nozzle	$6.30  In-Stock Retail: $6.07
