Whirlpool DU900PCDQ3 Parts List

Popular Searches: (Click to search)    agent  also  assembly  black  dispenser  drain  gasket  item  kit  latch  lid  limit  order  paint  spring  switch  thermostat  touch  wet  white


Select a Diagram

01 - Frame And Console

02 - Inner Door

03 - Tub Assembly

04 - Pump And Motor

05 - Dishrack

06 - Miscellaneous, Lit/optional

Select Diagram ... 01 - Frame And Console 02 - Inner Door 03 - Tub Assembly 04 - Pump And Motor 05 - Dishrack 06 - Miscellaneous, Lit/optional

03 - Tub Assembly   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	3375130	Tub Assembly	$180.30 Special Order
2	3369078	Tub, Wheel Assembly (8)	$26.80 Special Order
3	3368933	Runner (2)	$14.80 Special Order
4	8193716	Leveler (2)	$52.40  In-Stock Retail: $51.04
5	3370389	Screw, Shoulder	$4.40 Special Order
6	WP302819	Wheel (2) (Replaces: 302819)	$4.80 Special Order
7	WP681414	Screw,	$4.80 Special Order
8	3374719	Plate, Latch	$15.80 Special Order
9	WP3374720	Screw	$42.70 Special Order
10	WPW10509257	Gasket (Replaces: W10082795 3376927)	$59.90  In-Stock Retail: $58.41
11	3372413	Retainer, Access Panel	$31.80 Special Order
12	WP8528862	Deflector (2)	$57.50  In-Stock Retail: $56.02
13	3379738	Heater	$78.00 Special Order
14	WP717273	Washer, Rubber (2)	$4.80  In-Stock Retail: $4.59
15	3369073	Nut (2) (heater Terminal)	$4.40 Special Order
16	3374621	Water Valve	Call for Availability
17	WP489069	Screw	$4.80 Special Order
18	WP661566	Thermostat, Hi-limit (Replaces: 3369777)	$25.20  In-Stock Retail: $24.51
20	WP596669	Clamp	$4.80 Special Order
21	3376149	Shield, Thermostat	$4.40 Special Order
22	3370555	Bracket, Thermostat	Call for Availability
23	WP489128	Screw	$6.70 Special Order

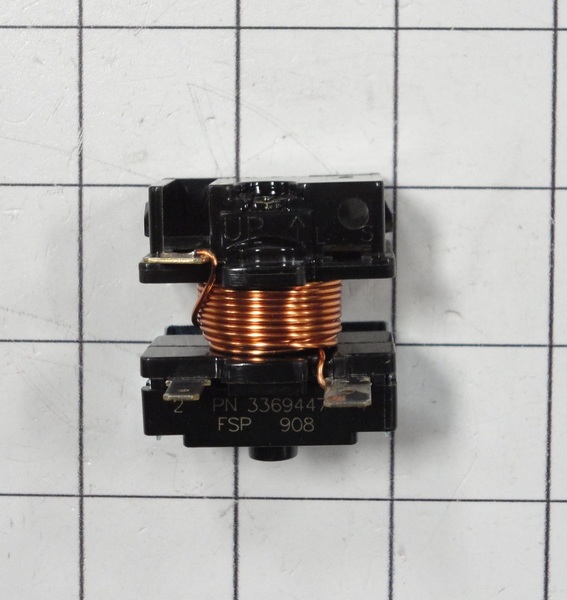

24	3369447	Relay	$40.80 Special Order
25	WP304231	Screw,	$4.80 Special Order

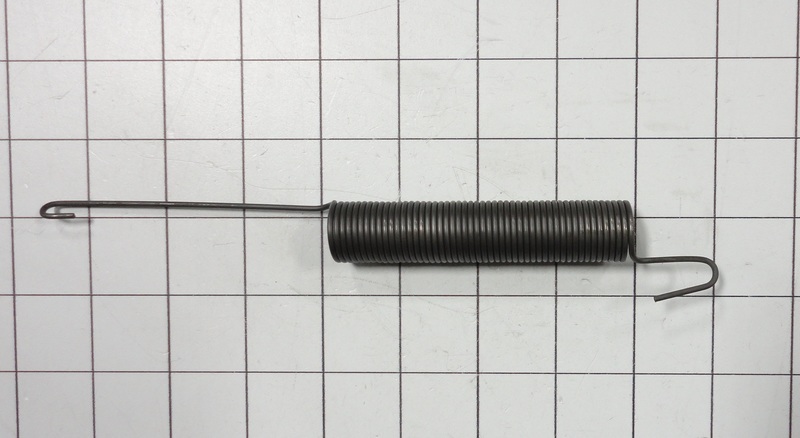

28	WP3374343	Spring, Door (2) (Replaces: 3374343)	$20.60 Special Order
29	3369048	Housing, Float Switch	$32.40 Special Order
30	WPW10102498	Switch, Float (Replaces: 3369067)	$40.90 Special Order
31	3369049	Cover, Switch Housing	$12.10 Special Order
32	WP3376397	Float & Washer Assembly (Replaces: 3376397)	$62.30  In-Stock Retail: $60.75
33	717488	Nut	$8.20 Special Order
34	WP3379921	Toe, Panel	$88.90  In-Stock Retail: $86.71
35	3369614	Panel, Access	$50.00 Special Order
36	WP302868	Screw   (Replaces: 302868)	$4.80  In-Stock Retail: $4.59
37	WP304669	Hose, Inlet	$35.50 Special Order
39	3368987	Support, Heater (3)	Call for Availability
40	W11086533	Sound Shield	$22.90 Special Order
41	3378131	Box, Terminal	$14.70 Special Order
42	300068	Cover Assembly Terminal Box	$19.60 Special Order
43	3370868	Access Panel (white/black)	$22.60 Special Order
44	3369526	Spacer, Corrugated	$19.20 Special Order
45	WP3374728	Extension & Clip Assembly	Call for Availability
48	WP304666	Retainer, Push (2)	$17.50 Special Order
49	3370307	Relief, Strain	$18.80 Special Order
50	WP488130	Nut	$4.60  In-Stock Retail: $4.45
51	WP250830	Screw	$4.80 Special Order
52	3369138	Screw	$4.00 Special Order
53	3374718	Clip, Grounding	$0.40 Special Order
