Frigidaire 30-2759-00-05 Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    broiler  bttm  burner  channel  door  dual  grate  hinge  igniter  module  oven  safety  screw  spark  valve

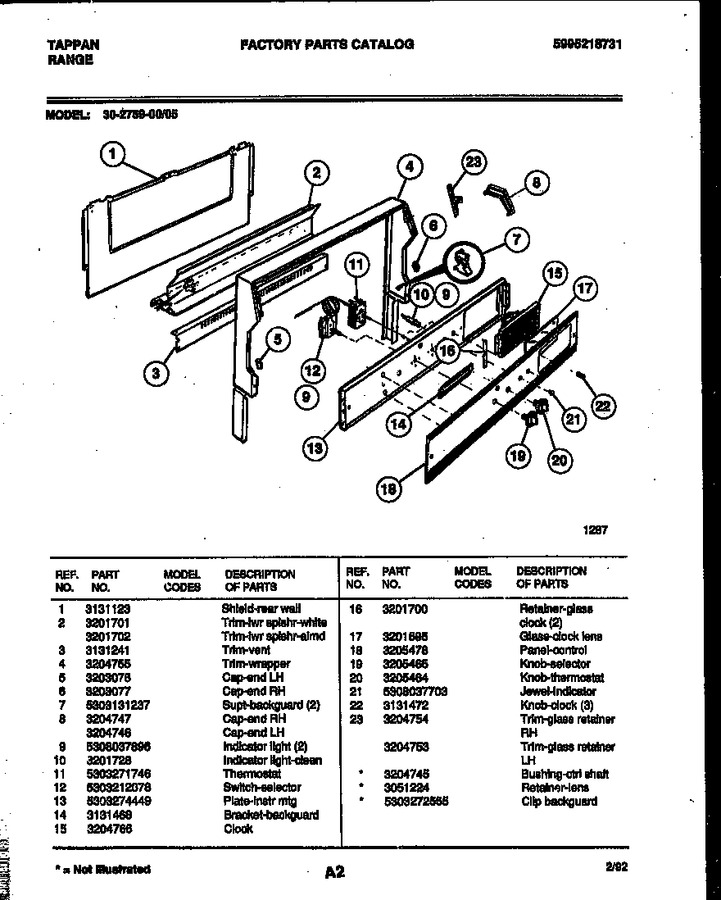

Select a Diagram


02 - Backguard   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
1 3131123 Shield, Rear Wall Call for Availability
2 3201701 Trim-lwr Splshr (white) Call for Availability
3 3131241 Trim-vent $27.90
Special Order
4 3204755 Trim, Wrapper Call for Availability
5 3203076 Cap End-lh $11.90
Special Order
6 3203077 Cap End-rh $11.90
Special Order
7 5303131237 Supt-backguard (2) $10.70
Special Order
8 3204747 Cap-end Rh $40.40
Special Order
8A 3204746 Cap-end Lh $36.20
Special Order
9 5308037896 Indicator Light $28.00
Special Order
10 3201728 Indicator Light-clean $6.30
Special Order
11 5303271746 Thermostat Call for Availability
12 5303212678 Switch Selector Call for Availability
13 5303274449 Plate-instr Mtg $13.80
Special Order
14 3131468 Bracket, Backguard $10.80
Special Order
15 5303210877 Clock   (Replaces: 3204766) $113.80
Special Order
16 3201700 Retainer-glass Clock (2) $2.90
Special Order
17 3201695 Glass-clock Lens Call for Availability
18 3205478 Panel-control $73.00
Special Order
19 3205465 Knob-selector $4.70
Special Order
20 3205464 Knob Thermostat $42.60
Special Order
21 5308037703 Jewel-indicator Call for Availability
22 316029008 316029008 Knob-clock (3)
(Replaces: 3131472)
$27.60
Special Order
23 3204754 Trim-glass Retainer,rh $15.90
Special Order
23A 3204753 Trim-glass Retainer,lh $13.20
Special Order
*65754 3051224 Retainer-lens Call for Availability
5303272555 Clip-backguard $3.60
Special Order
3204745 Bushing-ctrl Shaft $2.40
Special Order
