GE JB256DM2WW Parts List

Popular Searches: (Click to search)    1250w  2500w  asm  block  bowl  burner  clip  control  drawer  inf  insulator  lamp  lens  oven  pilot  rack  receptical  sensor  support  switch


Select a Diagram

Body Parts

Control Panel & Cooktop

Door & Drawer Parts

Select Diagram ... Body Parts Control Panel & Cooktop Door & Drawer Parts

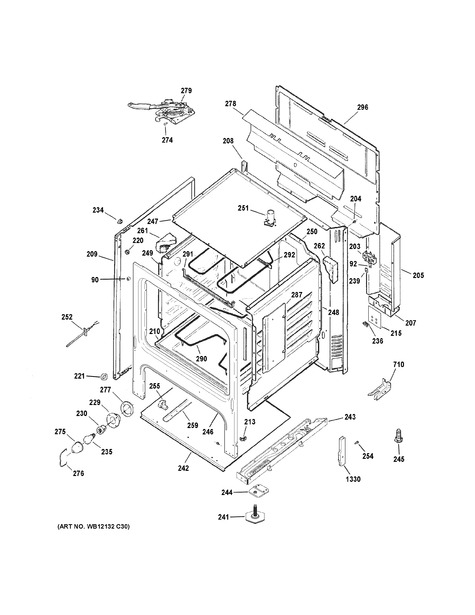

Body Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
90	WB02X28738	Frame Front Bumper	$10.50  In-Stock Retail: $10.22
92	WB1X1261	Screw Ground	$10.50 Special Order
203	WB27X31509	Block Terminal Asm	$38.40  In-Stock Retail: $37.42
204	WB1X536	Screw - Door Asm (4 Per)	$12.00  In-Stock Retail: $11.66
	WZ04X0345	Screw 8-18x5/8 Hxw	Call for Availability
205	WB34X21584	Guard Terminal	$33.70 Special Order
207	WB02K10029	Bracket Mtg Terminal	$12.10 Special Order
208	WB63K10273	Range Back	$105.00 Special Order
209	WB56X29129	Panel Side (white)	$159.00 Special Order
210	WB63K10105	Bottom Oven	$82.50 Special Order
213	WB1K3	Nut Speed	$10.50 Special Order
215	WB63K10048	Fiber Glass	$9.30 Special Order
220	WB2K8	Grommet	$9.30 Special Order
221	WB02K10294	Grommet	$10.50 Special Order
229	NLA ITEM	Housing Receptacle	Call for Availability
230	WB08T10026	Receptacle Push-in	$10.50  In-Stock Retail: $10.22
234	WB2K66	Guide Support Rgtp	$10.50 Special Order
235	40A15	40a15	$7.30  In-Stock Retail: $14.72
236	NLA ITEM	Clip Wire	Call for Availability
239	NLA ITEM	Plate-ground	Call for Availability
241	WB02X29030	Leg Leveling	$10.60 Special Order
242	WB63K10241	Guard Insulation Bottom	$58.10 Special Order
243	WB63K10256	Support Base Right	$28.40 Special Order
	WB63K10255	Support Base Left	$25.20 Special Order
244	WB34X29134	Bracket Base	$10.50 Special Order
245	WB02K10182	Leg Leveler	$10.60  In-Stock Retail: $10.31
246	WB63X21430	Frame Weld Asm	$79.00 Special Order
247	WB63K10021	Oven Top	$61.00  In-Stock Retail: $59.43
248	WB63X23795	Side Oven Rt	$49.40 Special Order
249	WB63X23794	Side Oven Lf	$48.10 Special Order
250	WB53K10007	Oven Back	$107.60 Special Order
251	WB38K10016	Tube Vent Asm	$19.90 Special Order
252	WB23X5340	Sensor-oven	$173.90  In-Stock Retail: $169.61
254	NLA ITEM	Screw Mtg Hinge (torx)	Call for Availability
255	WB02K10158	Drawer Support	$10.50 Special Order
259	WB39K16	Rail Drawer	$31.20 Special Order
261	WB35X27197	Insulation Oven Wrap	$57.60 Special Order
262	WB35X27196	Insulation Oven Wrap	$42.10 Special Order
	WB35K10104	Insulation Oven Back	$43.50 Special Order
274	NLA ITEM	Screw Latch	Call for Availability
275	WB36X192	Glass Oven Lamp (Replaces: WB8K5)	$15.00  In-Stock Retail: $14.60
276	WB2K27	Bail	$53.70 Special Order
277	NLA ITEM	Gasket Oven Light	Call for Availability
278	WB34X21602	Divider Wiring	$50.50 Special Order
279	WB02K10144	Latch Assembly	$56.70 Special Order
287	WB34X27198	Guard Radiation	$15.30 Special Order
290	WB30X46987	Bake Element   (Replaces: WB44K10005)	$93.80  In-Stock
291	WB02K10028	Support Broil	$13.00 Special Order
292	WB30X46986	Broil Element   (Replaces: WB44K10002)	$78.90  In-Stock
296	WB34X21585	Cover Back	$73.50 Special Order
710	WB02X32405	Bracket Asm Anti-tip	$10.70 Special Order
1330	WB10X20220	Receiver Hinge	$10.60 Special Order
