Frigidaire EIDW6105GB1A Parts List

Popular Searches: (Click to search)    assembly  assy  bottom  bracket  capacitor  circulation  control  door  drain  gasket  harness  hose  motor  pump  sensor  stepper  tub  turbidity  valve  wiring


Select a Diagram

03 - Control Panel

05 - Door

07 - Upper Frame/tub

09 - Motor & Pump

11 - Lower Frame

13 - Racks

01 - Cover

Select Diagram ... 03 - Control Panel 05 - Door 07 - Upper Frame/tub 09 - Motor & Pump 11 - Lower Frame 13 - Racks 01 - Cover

13 - Racks   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	154786601	Rack Assembly,lower	Call for Availability
2	154632401	Basket,silverware ,main ,center	$55.20 Special Order
2A	154632601	Basket,silverware ,side ,rear	$38.40 Special Order
2B	154632701	Basket,silverware ,side ,front	$39.30 Special Order
3	154653701	Rack Assembly,upper	$215.80 Special Order
4	154510902	Clip,guide Rail ,rear ,(2)	$12.30 Special Order
5	154510805	Cap,guide Rail ,front ,(2)	$9.80 Special Order
6	154510401	Guide Rail,upper Rack ,(2)	$19.50 Special Order
7	154671301	Roller Assembly,lower Rack ,front ,(2)	$34.40 Special Order
7A	154689501	Roller Assembly,lower Rack ,rear ,(2)	Call for Availability

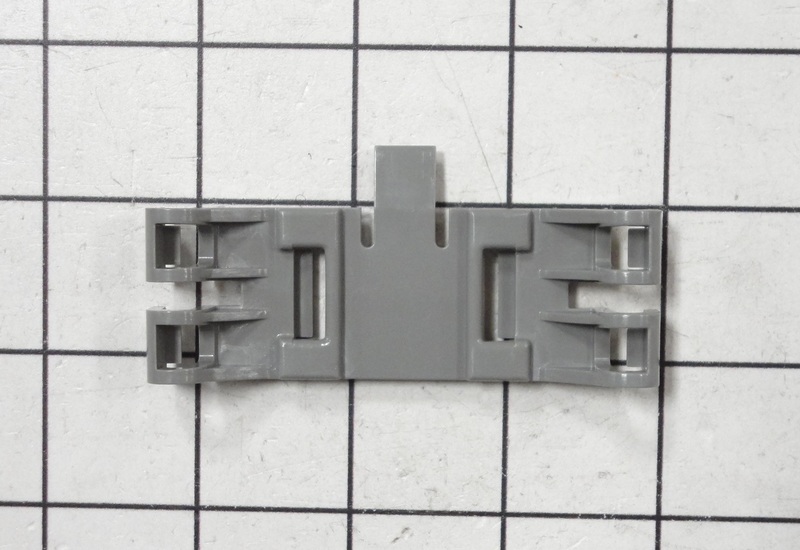

8	154610501	Bracket,spray Arm ,middle ,mounting	$10.90 Special Order
9	154613402	Clip,manifold Mtg ,back	$69.90 Special Order
11	154629002	Shelf,cup ,upper Rack ,(2)	$70.80 Special Order
11A	154629102	Clip,cup Shelf ,upper Rack ,(2)	$11.90 Special Order
12	154629302	Fence,fold Down ,lh Center ,upper Rack	$8.80 Special Order
12A	154654302	Fence,fold Down ,rh Center ,upper Rack	$19.50 Special Order
13	154629402	Clip,fold Down Fence ,upper Rack ,(4)	$7.70 Special Order
14	154720903	Fence,fold Down ,lower Rack ,(2) ,full Length	Call for Availability
15	154428403	Bracket,fence ,lower Rack ,(18)	$3.10 Special Order
16	154631401	Lid,main Basket ,side ,(2)	$48.60 Special Order
17	154629503	Handle,front ,upper Rack ,electrolux	$73.60 Special Order
17A	154629601	Handle,back ,upper Rack	$56.20 Special Order
18	154629701	Screw,upper Rack	$6.80 Special Order
19	154673701	Plate Assembly,adjustment Mech ,rh Outer,upper Rack	$135.30 Special Order
19A	154673601	Plate Assembly,adjustment Mech ,lh Outer,upper Rack	$129.20 Special Order
20	154655101	Actuator Pad,assembly ,upper Rack ,(2) ,mechanical Adj	$59.20 Special Order

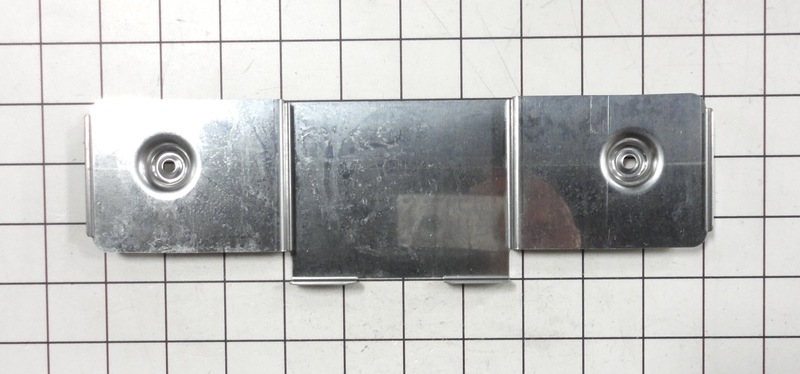

21	154630101	Plate,adjustment Mtg. ,inner ,(2) ,upper Rack	$31.20 Special Order
22	154630301	Housing,adjustment Mech ,upper Rack ,(2)	$10.30 Special Order
24	154655201	Clamp,actuator ,upper Rack ,(2) ,adjustment Mech	$3.40 Special Order
25	154630201	Spring,adjustment Mech ,upper Rack ,(2)	$8.20 Special Order
26	154673501	Screw,6 Lobe Recess ,no.10 Hi Lo	$7.50  In-Stock Retail: $7.26
