GE GDP695SBM5TS Parts List

Search Model by Keyword(s):

Select a Diagram


Escutcheon & Door Assembly   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
1 31-31560 Pm Install Instructions Call for Availability
49-55102 Pm Owners Manual Call for Availability
31-30898 Pm Mini-manual Call for Availability
113 WD02X10067 WD02X10067 Screw 8-16 Hxw 1/2 Ss $10.50
Special Order
200 WD14X23739 Arm Hinge Asm Lh $23.50
Special Order
201 WD14X23738 Arm Hinge Asm Rh $34.20
Special Order
709 WR01X11012 Scr 8-18 Ab Hxw 9/16 S $10.50
Special Order
710 WD01X10585 WD01X10585 Block Foam Door $12.00
Special Order
711 WD27X24848 Outer Door Asm Ts $559.90
Special Order
713 WD09X24503 Pocket Door Handle $52.60
Special Order
718 WD21X31902C Configured Ui Control   (Replaces: WD21X32000 WD21X31902 WD21X23702) $184.50
 In-Stock
Retail: $180.00

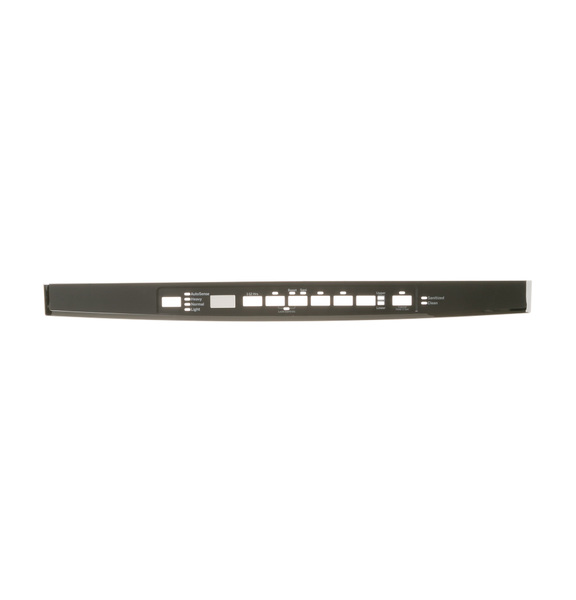

719 WD34X21699 WD34X21699 Console Cvr Graphics Asm $73.00
Special Order
720 WD12X23316 WD12X23316 Silicone Light Pipe $37.80
 In-Stock
Retail: $36.83
722 WD09X20066 WD09X20066 Lens And Adhesive Asm $10.50
Special Order
723 WD12X20184 WD12X20184 Console Top Control $12.30
Special Order
724 WD12X10470 WD12X10470 Housing Bottom $35.60
Special Order

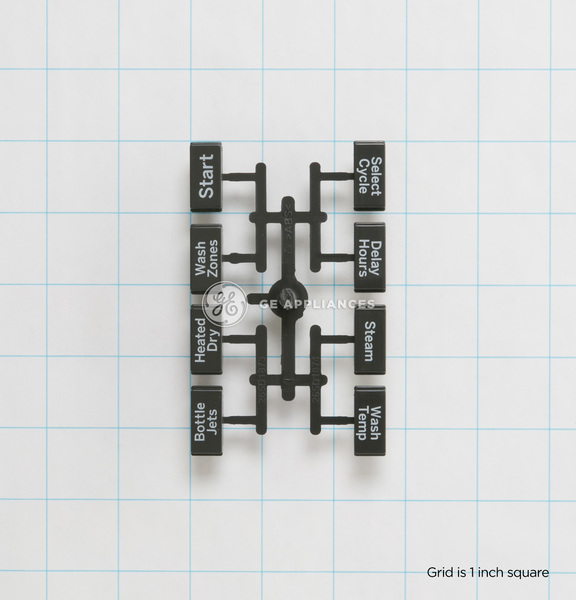

725 WD09X21694 WD09X21694 Button And Graphic Asm $15.70
Special Order
745 WD01X22514 WD01X22514 Scr 10-32 Gx Ihxw 9/16 S $10.50
Special Order
753 WD21X21664 WD21X21664 Harness Asm Door $61.00
Special Order
758 WD27X21334 WD27X21334 Insulation Toe Kick $9.80
Special Order
759 WD27X26119 Toe Kick Painted Asm $24.30
Special Order
780 WD30X25140 Inner Door Insulation $27.00
Special Order
795 WD02X22628 Screw T15 8-16 Plastite 60-1 $10.50
Special Order
796 WD01X22836 WD01X22836 Attach Strip Rh $10.50
Special Order
797 WD01X10634 WD01X10634 Attach Strip $10.50
Special Order
801 WB02T10324 WB02T10324 Scr 6-20 Gxb Ihxw 3/8 Ni $10.50
Special Order
804 WD13X10071 WD13X10071 Striker Latch $10.50
 In-Stock
Retail: $10.22
805 WD13X22837 WD13X22837 Attachment Strip Top $148.60
Special Order
807 WD31X29644 Door Inner Ss $228.90
Special Order
811 WD12X32798 WD12X32798 Detergent Disp No Sensor
(Replaces: WD12X28238 WD12X24058) 		$38.10
 In-Stock
Retail: $38.02
812 WD24X20586 WD24X20586 Cover Vent $10.50
Special Order
813 WD12X10462 WD12X10462 Plate Detergent $10.50
Special Order
815 WD12X20218 WD12X20218 Vent Conduit Asm $86.30
Special Order
816 WD08X10092 WD08X10092 Door Vent Seal $22.90
 In-Stock
Retail: $22.32
818 WD12X23557 Transition Piece Asm $16.00
Special Order
820 WD24X20256 WD24X20256 Vent Fan Asm $52.60
Special Order
833 WD02X20140 WD02X20140 Scr 10-16 Pl Pnt 2.25 S $10.50
Special Order
850 WD01X26418 Trim Door Rh $10.50
Special Order
851 WD01X26419 Trim Door Lh $25.90
Special Order
