GE XPS15BTHMLWW Parts List

Popular Searches: (Click to search)    15amp  40watt  asm  blade  bumper  cond  control  cover  defrost  evap  fan  grommet  kit  rplcmt  socket  terminal  thermostat  wr30x10093


Select a Diagram

Doors

Freezer Section

Fresh Food Section

Fresh Food Shelves

Ice Maker

Machine Compartment

Select Diagram ... Doors Freezer Section Fresh Food Section Fresh Food Shelves Ice Maker Machine Compartment

Doors   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	31-51952	Pm Mini Manual Wiring	Call for Availability
19	WR71X30014	Shelf Fixed Fz (Replaces: WR71X21149)	$19.30  In-Stock Retail: $18.76
23	WR14X29358	Freezer Door Gasket White	$69.50  In-Stock Retail: $67.73
26	WR02X28287	Freezer Door Stop White	$10.50 Special Order
27	WR02X28283	Refrigerator Door Stop White	$10.50 Special Order
104	WR14X29372	Refrigerator Door Gasket White	$81.10  In-Stock Retail: $79.11
106	WR22X30023	Refrigerator Dairy Door   (Replaces: WR22X28070)	$19.90 Special Order
108	WR17X30024	Shelf Fixed Ff (Replaces: WR17X21154)	$18.70  In-Stock Retail: $18.24
712	WR02X30818	Crosley Badge	$12.30 Special Order

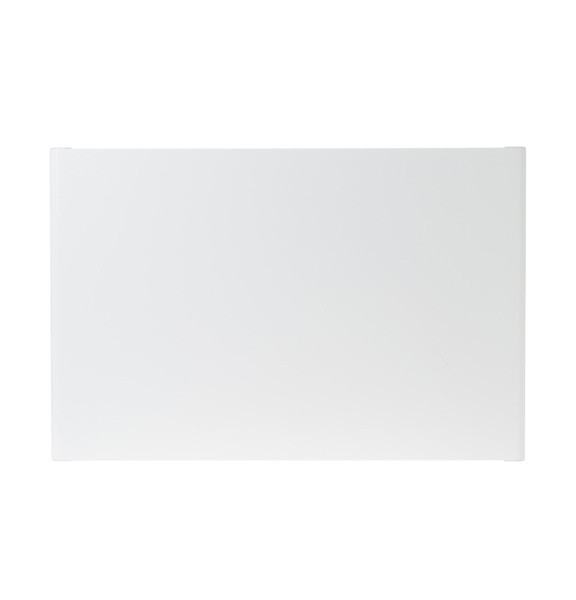

900	WR78X21324	Door Foam Asm Fz	$495.70 Special Order

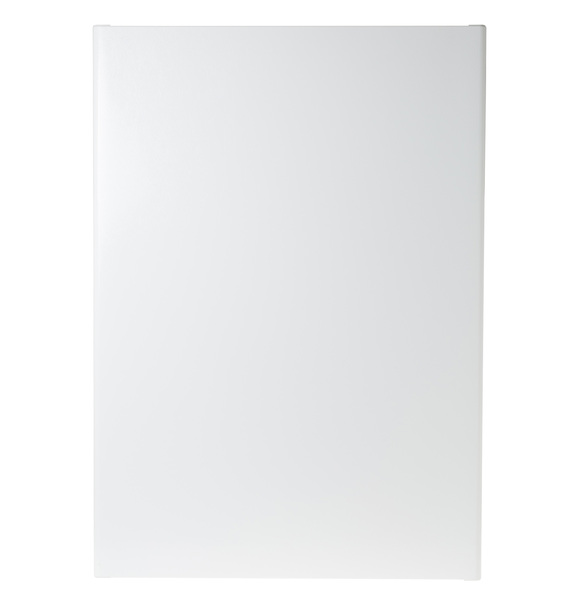

910	WR78X21325	Door Foam Asm Ff	$402.30 Special Order
920	WR2X8233	Plug Btn Wht	$10.50 Special Order
1000	WR01X21151	Scr 10-16 Ab Trp 3/4 Nbs	$10.50  In-Stock Retail: $10.22
