Whirlpool DU7400XS0 Parts List

Popular Searches: (Click to search)    2oz  almond  black  drain  ground  head  hex  hinge  hose  inlet  lid  paint  pin  pressurized  screw  spray  spring  tapping  touch  white


Select a Diagram

01 - Console

02 - Tub , Lit/optional

03 - Door

04 - Dishrack

05 - Pump And Motor

06 - Wiring Harness

Select Diagram ... 01 - Console 02 - Tub , Lit/optional 03 - Door 04 - Dishrack 05 - Pump And Motor 06 - Wiring Harness

01 - Console   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	3367749	Switch, Pushbutton	Call for Availability
2	304456	Button (4)	$9.90 Special Order
3	3368537	Baffle	Call for Availability
4	301074	Motor, Timer	$64.80 Special Order
5	WP304231	Screw, 8-16 X 1/2 Slot Hex Wash Hd (2)	$4.50 Special Order
7	WP304231	Screw, 8-16 X 1/2 Slot Hex Wash Hd (3)	$4.50 Special Order
8	304461	Timer	$167.60 Special Order
9	304232	Screw, 7-18 X 1-3/8 Slot Hex Wash Hd	Call for Availability
10	301536	Relay, Start	$38.70 Special Order
12	3367839	Console	Call for Availability
13	3367808	Insert, Decorative	Call for Availability

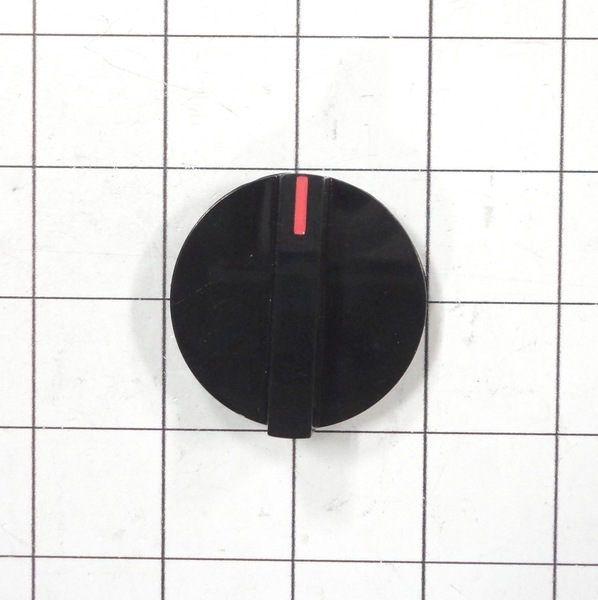

15	3367843	Knob, Timer	$19.90 Special Order
16	WP488729	Screw, 8-18 X 1/2 Phlps Truss Hd Hi-lo (4)	$4.50  In-Stock Retail: $4.33
20	304602	Grill, Vent	Call for Availability
