Maytag ART2527AC (BOM: PART2527AC0) Parts List

Popular Searches: (Click to search)    clip  crisper  evap  evaporator  fan  ice  maker  metal  motor  non  plastic  post  ptc  relay  screw  speed  support  tubing  valve  water


Select a Diagram

01 - Cabinet Back

02 - Door Assy

03 - Door Handles & Door Shelves

04 - Door Hinges, Fz Duct, Mk Cont Assy

05 - Evaporator & Evaporator Fan Motor Assy

06 - Ice Maker Assy & Parts

07 - Interior Cabinets & Drain Block Assy

08 - Ladders, Lower Cabinet

09 - Machine Compartment

10 - Shelving & Crisper Frame Assy

Select Diagram ... 01 - Cabinet Back 02 - Door Assy 03 - Door Handles & Door Shelves 04 - Door Hinges, Fz Duct, Mk Cont Assy 05 - Evaporator & Evaporator Fan Motor Assy 06 - Ice Maker Assy & Parts 07 - Interior Cabinets & Drain Block Assy 08 - Ladders, Lower Cabinet 09 - Machine Compartment 10 - Shelving & Crisper Frame Assy

07 - Interior Cabinets & Drain Block Assy   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
13	12035107	Housing, Control	Call for Availability
22	10476402	Insert, Drain Block	$4.40 Special Order
23	10439601	Rack, Control	Call for Availability
32	10996201	Kit, Drain Blk/ Frz Floor	$23.90 Special Order
33	10442601	Pinion, Control	Call for Availability
42	12035218	Ref Top- E Ct	Call for Availability
43	R0161072	Assy, Damper Control	Call for Availability
52	10573506	Harness, Drain Block	$21.30 Special Order
53	R0168027	Timer-defrost	$99.30  In-Stock Retail: $96.79
62	D7714408	Socket, Light	$47.50 Special Order

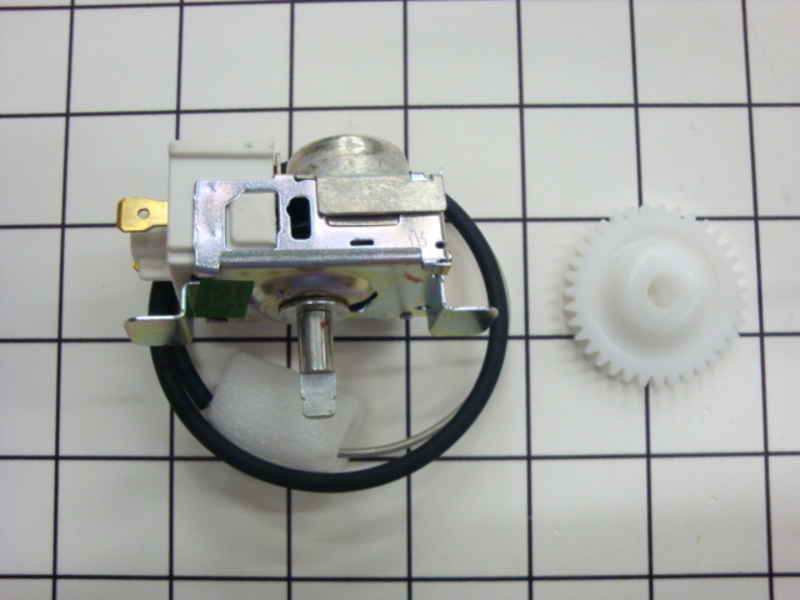

63	R9700005	Assy, Frz Control	$85.80 Special Order
73	10442801	Insert,damper	Call for Availability
81	10926208Q	Assy,hlf Gls Shelf	Call for Availability
83	10442901	Insulation, Damper	Call for Availability
91	10698559Q	Assy,crisper Frame	Call for Availability
93	M0350201	Switch, St	$21.60 Special Order
103	W11384469	Switch, Light (Replaces: 12466102 66987-1 WP1118894 C3680308)	$22.90  In-Stock Retail: $22.28
132	10671702	Drip Tray	Call for Availability
133	10673603	Insulation, Cap	$16.40 Special Order
142	10450847	Membrane,25 Breaker	Call for Availability
143	10565101	Shield, Wire	Call for Availability
151	10543615	Heater, Mullion	$9.00 Special Order
152	10995902	Bottom, Frz	Call for Availability
161	10433363WD	Mullion,center-w Ect	Call for Availability
162	10453001	Cap, Switch	Call for Availability
172	10565401	Knob, Control	$19.80 Special Order
182	67006425	Screw, Sm	$4.80  In-Stock Retail: $4.59
183	A3012543	Tube-plastic	Call for Availability
192	M0224128	Screw	$4.50 Special Order
202	10995201	Insert-mk Air Sply	$43.60 Special Order
212	8009	Bulb, Light (40 Watt) (Replaces: A0282803)	$20.00  In-Stock Retail: $19.99
232	10673706	Frame, 25 Breaker	Call for Availability
302	10508701	Shield, Refrig. Light	Call for Availability
381	R9800670	Screw, Tf   (Replaces: M0238731)	$5.50 Special Order
452	10594901	Gasket, Mk Air Supply	$16.20 Special Order
542	WP90767	Screw	$4.80  In-Stock Retail: $4.59
911	10461901	Post, Crisper Support	$15.70 Special Order
941	10629103	Pan, Crisper	Call for Availability
1391	10433612	Plate, Center Tap	Call for Availability
1401	B0523584	Insulation Per Ft.	$0.40 Special Order
1511	10481001	Roller, Pan	$4.40 Special Order
1641	M0253916	Screw	Call for Availability
3621	M0211520	Screw - Sm	$4.40 Special Order
3701	67006692	Screw, Shoulder	$6.70 Special Order
6021	12224202Q	Assy, Can Rack	Call for Availability
6501	10772301	Insulation	$4.40 Special Order
NI	10573402	Harness, Control	$21.30 Special Order
