Whirlpool DU4000XY1 Parts List

Popular Searches: (Click to search) agent assembly bar cap door draw gasket kit latch lid motor paint pump screw spray spring switch touch wet white

Select a Diagram

01 - Frame And Console

02 - Inner Door

03 - Tub Assembly, Lit/optional

04 - Pump And Spray Arm

05 - Pump And Motor, Miscellaneous

06 - Dishrack

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
1	3368991	Console	$93.20 Special Order
2	3373402	Insert, Console	Call for Availability
3	WP4314961	Switch, Rocker (Replaces: 3369064)	$54.10 Special Order
4	3368997	Follower, Cam	$32.00 Special Order
5	3369310	Timer	Call for Availability
6	3368996	Cam	Call for Availability
7	WP304231	Screw, 8-18 X 1/2 (3)	$4.80 Special Order
8	3374711	Door Frame (includes Item 21)	$96.60 Special Order
9	WP3380854	Bolt, Latch (Replaces: 3370260 3368953)	$60.20 In-Stock Retail: $58.64
10	WP3368954	Lever, Latch	$4.80 Special Order
11	4318273	Switch, (2) (Replaces: WP4318273 3369325)	Call for Availability
12	WP3368955	Pin, Switch (2) (Replaces: 3368955)	Call for Availability
13	3372246	Harness And Protector	Call for Availability
14	3376405	Elbow, Harness	$9.90 Special Order
15	WP488234	Screw, 8-32 X 1/4	$4.60 Special Order
16	3368964	Cover, Timer	$28.40 Special Order
17	3368998	Knob, Timer	Call for Availability
18	3368979	Spacer, Corrugated	$36.20 Special Order
19	3371716	+front Panel (white)	$38.50 Special Order
20	WP3374010	Retainer, Panel (Replaces: 3374010)	$64.30 In-Stock Retail: $62.70

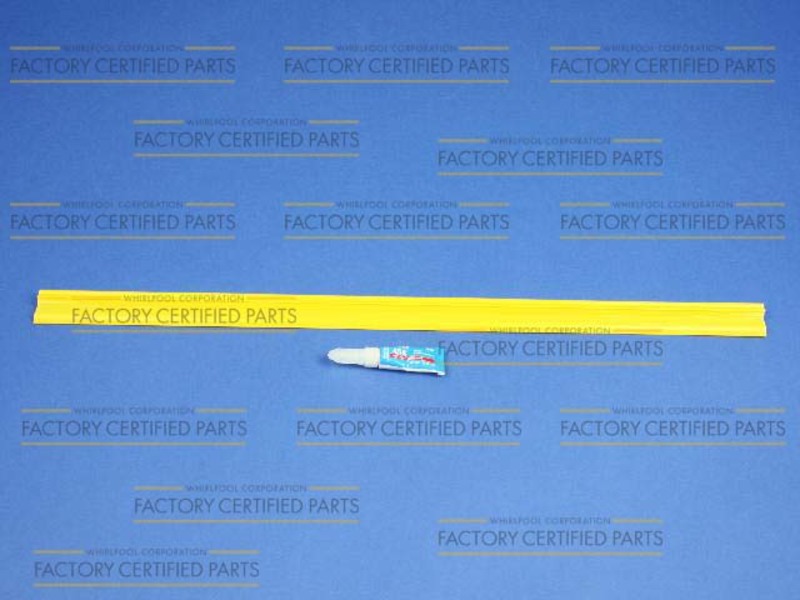

21	4386883	Channel, Retainer (also Order Item No.20) (Replaces: 3374015)	$59.40 Special Order
22	WP3373234	Bearing Spring (2) (Replaces: 3373234)	$6.50 In-Stock Retail: $6.30
