Frigidaire E32AR75FPS3 Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    base  clear  compressor  condenser  control  dairy  defrost  door  drier  electricals  fan  filter  handle  motor  mounting  screw  shoulder  thermistor  thermostat  water


Select a Diagram


05 - Cabinet   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
3 216503100 Screen-drain $44.10
Special Order
5 297259600 297259600 Fan Blade,evaporator $8.40
Special Order
6 297200600 Breaker Kit W/corners,no Lock Slot $40.00
Special Order
9 297200100 Breaker Kit W/corners,32`` ,top And Bottom $42.10
Special Order
F13 297309000 Motor,fan ,115 V   (Replaces: 297250000) $32.97
 In-Stock
Retail: $38.54
14 216822900 216822900 Switch,light/lamp ,ramp
(Replaces: 216998000)
$50.80
 In-Stock
Retail: $49.49
15A 297048600 Light Bulb/lamp,short $28.70
Special Order
16A 216817600 Socket,light/lamp ,25 W Call for Availability
19 216204902 216204902 Gasket-evap Cover $24.60
Special Order
25 297099254 Cover-evaporator Call for Availability
26 297091600 Case-crisper,shallow $153.30
Special Order
26A 297091601 Case-crisper,deep $103.70
Special Order
26B 297091800 Panel,crisper Window $70.70
Special Order
26C 297091703 Panel,crisper Front Call for Availability
26E 297099400 Divider-crisper,shallow $45.70
Special Order
26F 297099401 Divider-crisper,deep $137.00
Special Order
26G 297123700 Case-deli $162.10
Special Order
27A 240362201 240362201 Control-humidity $50.30
 In-Stock
Retail: $48.99
28 297179300 297179300 Hinge,bottom/rh $34.30
Special Order
29 216313500 216313500 Hose-drain
(Replaces: 216313501)
$11.30
Special Order
32 5304511843 5304511843 Drain
(Replaces: 5308005500)
$9.80
Special Order
34A 297053100 Shield-light $23.10
Special Order
34B 297053200 Lens,light $31.80
Special Order
35 216273000 Clip, Drain Hose $15.90
Special Order
37 5303918606 5303918606 Trim-cabinet Corner,white ,(2)
(Replaces: 242128101 241611301)
$5.20
Special Order
38 297164300 Hinge-upper $13.90
Special Order
40 297164402 Cover-hinge,silver $20.00
Special Order
41 240578902 240578902 Screw,hex Head ,1/4-20 X 5/8 $10.30
Special Order
42 297108901 Shelf-sliding $93.70
Special Order
47 297133000 Baffle-plate $35.10
Special Order
47A 297102700 Insert-pan Cover,glass $24.90
Special Order
47B 297102701 Insert-pan Cover,glass ,lower Call for Availability
50 08013207 Bracket Fan Motor $15.40
Special Order
62 297142600 Screw,blunt ,8-32 X 5/8 $9.30
Special Order
63 216396900 216396900 Screw, Leveling Foot, Plastic, Adjustable $17.00
Special Order
71A 297146800 Screw,8-18ab X 0.470 $3.60
Special Order
72 297036900 Grille/kickplate,32`` ,white $26.20
Special Order
93 216858001 216858001 Screw,ph Truss Head ,8-18ab X 0.500
(Replaces: 5304460605)
$7.70
 In-Stock
Retail: $7.49
93A 216629601 Screw,hex Washer Head ,10-16 X 0.500 ,tapping $9.30
Special Order
131 297130200 Channel-shelf Mtg,side ,(2) $40.50
Special Order
148 297092500 Frame-crisper Cover,upper $148.90
Special Order
F148 297092503 Frame-deli Cover $130.60
Special Order
297092502 Frame-crisper Cover,lower $159.50
Special Order
152 216974600 Bearing,hinge Closer $11.90
Special Order
154 297053000 Wire,jumper $41.60
Special Order
155 5303313703 Clip,(2) $2.60
Special Order
169 216912401 Screw,hex Washer Head ,8-32 X 0.500 ,bracket Fan Mtr,(2) $9.30
Special Order
171 297092700 297092700 Bracket,crisper Cover ,rh $37.50
 In-Stock
Retail: $36.49
172 297092701 Bracket,crisper Cover ,lh $38.50
Special Order
173 297107600 Slide,crisper ,rh $54.90
Special Order
174 297107601 Slide,crisper ,lh $55.40
Special Order
175 297099500 297099500 Support-crisper $31.80
 In-Stock
Retail: $30.99

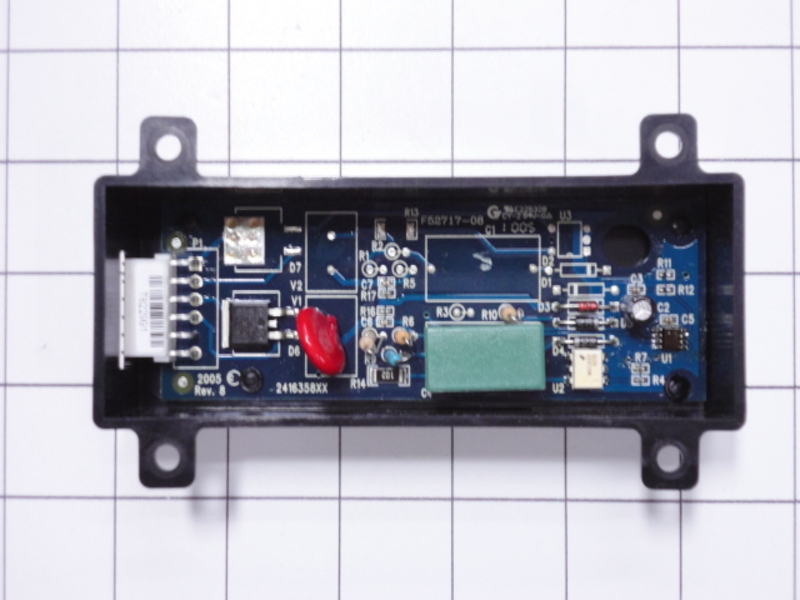

177 297116000 297116000 Electronics,theater Lgt $436.90
Special Order
NI 297001704 Insulation,24`` ,drain Tube $14.40
Special Order
5303305324 Paint, Touch-up, White Call for Availability
297226504 Energy Guide Call for Availability
