Whirlpool DU1148XTPQ9 Parts List

Popular Searches: (Click to search) also assembly bracket door drain element fill heater hose includes item metal paint pressurized pump seal spray touch valve white

Select a Diagram

01 - Door And Panel Parts

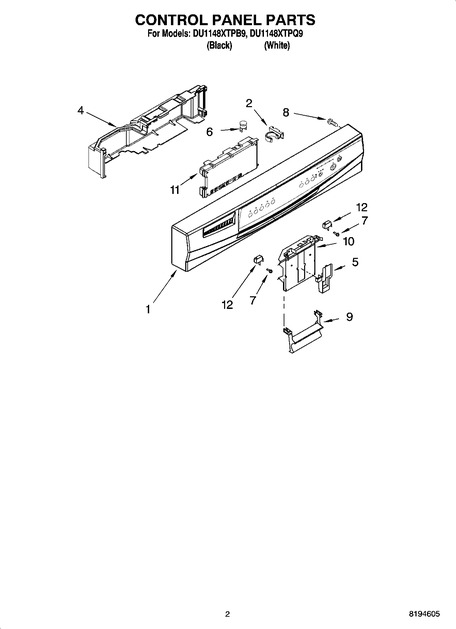

02 - Control Panel Parts

03 - Door And Latch Parts

04 - Lower Washarm Parts

05 - Heater Parts

06 - Fill And Overfill Parts

07 - Tub And Frame Parts

08 - Pump And Motor Parts

09 - Upper Rack And Track Parts

10 - Upper Wash And Rinse Parts

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
1	W10102462	Console Asm. (includes Active Overlay & Insert) (white)	$80.80 Special Order
	W10102461	Console Asm. (includes Active Overlay & Insert) (black)	$151.50 Special Order
2	8546546	Clip, Bi-metal	$6.00 Special Order
4	W10056090	Cover Control Shield Assembly	$21.20 Special Order
5	WP8524471	Actuator, Latch (Replaces: 8524471)	$60.20 In-Stock Retail: $58.71
6	W10258275	Bi-metal (Replaces: 661663)	$26.70 In-Stock Retail: $26.03
7	WP3400412	Screw	$4.80 Special Order
8	WPW10348409	Screw (6) (Replaces: W10348409 3369051)	$4.80 In-Stock Retail: $4.59
9	WP8534985	Handle, Latch (white) (Replaces: 8534985)	$75.00 In-Stock Retail: $73.09
	WP8534984	Handle, Latch (black) (Replaces: 8534984)	$75.00 Special Order
10	8193882	Bolt, Latch	$69.60 In-Stock Retail: $67.81
11	WPW10084141	Control, Electronic	$208.40 In-Stock Retail: $203.22
12	WP8269209	Switch, Door (Replaces: 8269209)	$24.50 In-Stock Retail: $23.81
