Alliance AFN51FSP541RN01 Parts List

Popular Searches: (Click to search)    and  are  assembly  black;  comment:  door  foot  hardware  includes  items  kit  latch  produced  retaining  ring  rubber  seal  switch  units  with


Select a Diagram

Control Cabinet, Top and Controls (Drawing 2 of 2)   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	803144P	Top Kit (Comment: Includes items 2-6, 13 and 4 each of 22649 Screw and 51236 Nut)	Call for Availability
2	685847	Pop Rivet	Call for Availability
3	36020	Nut	$5.20  In-Stock Retail: $5.13
4	D511036	Hinge	$3.20  In-Stock Retail: $3.12
5	29651	Bolt	Call for Availability
6	D504228	Top Mounting Bracket	Call for Availability
7	802299P	Pressure Switch	$54.70  In-Stock Retail: $54.67
8	M402542	Snap Bushing	Call for Availability
9	802523P	Control Assembly	$539.70 Special Order
10	D501524	Screw	$5.20 Special Order
11	801058	Rear Control Cabinet	Call for Availability
12	70240301	Screw	Call for Availability
13	44087201	Nut	Call for Availability
14	70030501	Expansion Clip	Call for Availability
15	D513701DG	Control Cabinet (Comment: Right; Gray)	Call for Availability
	803141	Control Cabinet (Comment: Right; Stainless steel)	Call for Availability
16	23008	Screw	$5.20  In-Stock Retail: $5.13
17	D501086	Screw	Call for Availability
18	801240	Cycle Switch	$42.20  In-Stock Retail: $42.13
19	F430956	Screw	Call for Availability
20	803098P	Timer Knob Assembly	$33.40 Special Order
21	803294	Lens	Call for Availability

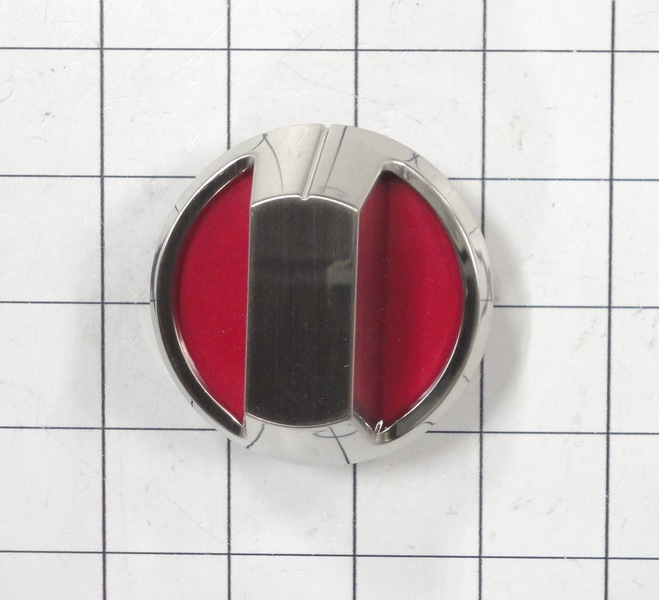

22	803099P	Control Knob Assembly	$37.10 Special Order
23	803067	Panel	Call for Availability
24	803214	Control Panel Assembly	Call for Availability
25	687542	Temperature Switch	$20.90 Special Order
26	803568	Selector Switch	$34.40 Special Order
27	801431	Light	$11.30 Special Order
28	803569	Twist-to-Start Switch	$32.30 Special Order
29	803142	Control Cabinet (Comment: Left; Stainless steel)	Call for Availability
	D513702DG	Control Cabinet (Comment: Left; Gray)	Call for Availability
30	801777	Control Cabinet Bottom	Call for Availability
31	M405188	Screw (Comment: Use with stainless steel cabinet)	$5.20 Special Order
	D503661	Screw (Comment: Use with painted cabinet)	Call for Availability
32	D503688	Screw	$5.20 Special Order
33	210100	Resistor	$17.70  In-Stock Retail: $17.68
34	D503661	Screw	Call for Availability
35	803013	Badge	Call for Availability
36	803527P	Transformer	$138.50 Special Order
37	M413507	Jumper Configuration Assembly	Call for Availability
38	36985	Hose Clip	Call for Availability
39	801371	Control Shield	Call for Availability
