Alliance AWS48NW Parts List

Popular Searches: (Click to search)    200996p  agitate  and  belt  comment:  hub  idler  includes  item  kit  lever  lip  other  seal  sealant  sealant;  spin  than  tool  use


Select a Diagram

Graphic Panel, Control Support Panel and Controls   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	D504009WP	End Panel (Comment: Left)	$16.40  In-Stock Retail: $16.40
2	D501086	Screw	Call for Availability
3	39905W	Top Cover	$36.20 Special Order
4	23962	Screw	$2.60 Special Order
5	35115	Temperature Switch (Comment: 3 position)	$16.40  In-Stock Retail: $16.31
6	201279P	Temperature Control	$271.80  In-Stock Retail: $271.71
7	201927P	Pressure Switch	$63.50 Special Order
8	-	NOT ON YOUR MODEL	Call for Availability

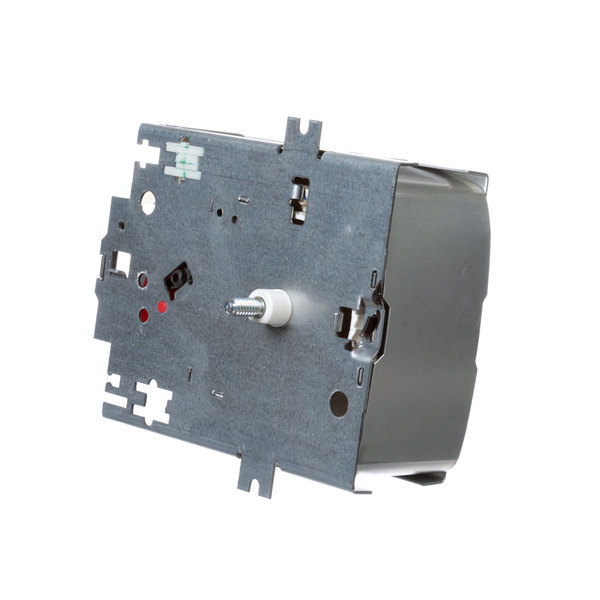

9	37927P	Timer	$184.80  In-Stock Retail: $184.75
10	D504008WP	End Panel (Comment: Right)	$14.30  In-Stock Retail: $14.21
11	35358	Hold-Down Clip	$5.20 Special Order
12	201478W	Graphic Panel	Call for Availability
13	38171	Control Support Panel	Call for Availability
14	00161	Grounding Clip	Call for Availability
15	36700W	Timer Skirt Assembly	$10.90 Special Order
16	201501W	Timer Knob	$12.30  In-Stock Retail: $12.21
17	-	NOT ON YOUR MODEL	Call for Availability
18	36701W	Knob Assembly	$15.10  In-Stock Retail: $15.10
