Maytag ARR633E (BOM: P1157905S E) Parts List

Popular Searches: (Click to search) block element kit term top

Select a Diagram

01 - Automatic Latch Assy

02 - Cabinet Assy

03 - Control Panel

04 - Electrical Components

05 - Main Top And Oven Assy

06 - Oven Door

07 - Storage Drawer

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
1	0305522	Latch, Arm Lock	Call for Availability

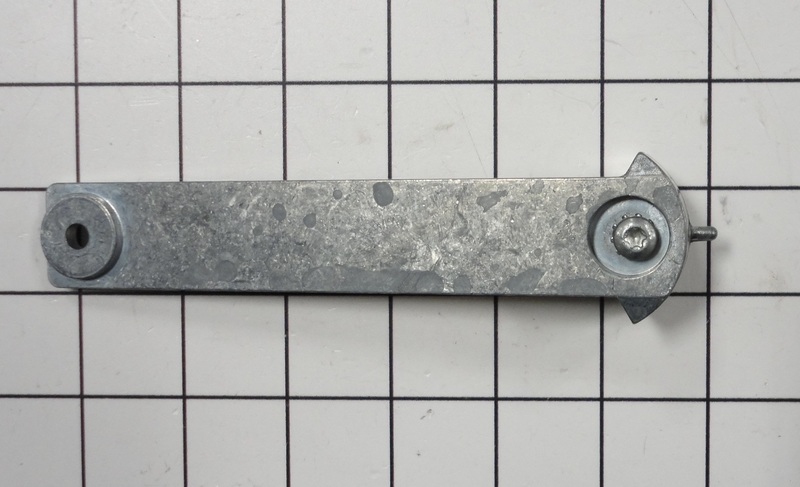

2	0306836	Assy, Door Latch (10442001)	$34.30 Special Order
3	Y71914	Screw, S.m.	Call for Availability
4	0306852	Arm, Actuator	Call for Availability
5	0306850	Cam, Lock Solenoid	Call for Availability
6	Y0306847	Insulator, Switch	Call for Availability
7	M0118901	Clip	$4.40 Special Order
9	0306849	Pad, Bumper	Call for Availability
10	0306848	Pin, Grooved	Call for Availability
11	Y0306857	Rivet, Simi-tubular	Call for Availability
12	Y0307056	Screw, T.c.	Call for Availability
14	306856	Solenoid, Lock	Call for Availability
15	Y0306846	Spring, Solenoid	Call for Availability
16	0306851	Switch, Limit	Call for Availability
17	0306859	Washer, Flat	Call for Availability
18	M0270538	Washer	$4.40 Special Order
19	0306853	Assy, Latch Solenoid	Call for Availability
20	Y0306837	Spring, Door Latch	$4.40 Special Order
21	M0110503	Clip	Call for Availability
22	67064	Screw, T.c.	Call for Availability
23	Y71914	Screw, S.m.	Call for Availability
NI	0306840	Grease	Call for Availability
	0306845	Assy, Latch Solenoid	Call for Availability
