GE GDE21EGKFRWW Parts List

Popular Searches: (Click to search)    asm  blade  canister  conf  cord  def  fan  filter  grille  grommet  motor  power  sensor  temp  thermostat  water


Select a Diagram

Case Parts

Freezer Door

Freezer Section

Freezer Shelves

Fresh Food Door

Fresh Food Section

Fresh Food Shelves

Machine Compartment

Select Diagram ... Case Parts Freezer Door Freezer Section Freezer Shelves Fresh Food Door Fresh Food Section Fresh Food Shelves Machine Compartment

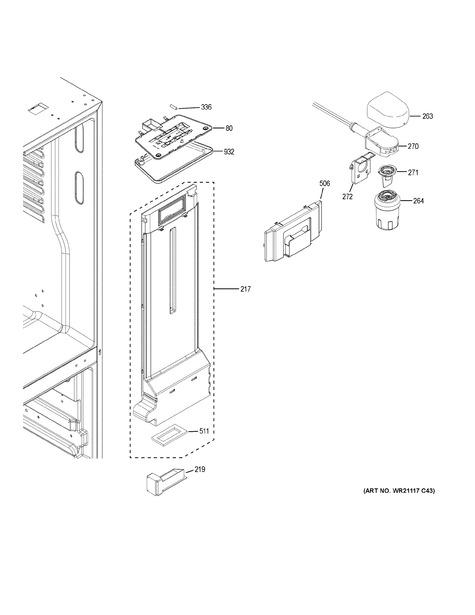

Fresh Food Section   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
80	WR17X24894	Housing Light Asm	Call for Availability
217	WR14X26409	Ff Air Tower 30	$92.90 Special Order
219	WR60X27396	Damper Asm	$132.90 Special Order
263	WR17X28086	Cover Water Filter	$17.90 Special Order
264	MWFP	Water Filter Canister	$47.90  In-Stock Retail: $76.56
270	WR17X26447	Filter & Insulation Asm	$74.50 Special Order
271	WR17X22070	Cap Filter Bypass (Replaces: WR02X11705)	$10.10  In-Stock Retail: $9.83
272	WR02X24816	Spacer Water Filter	$84.60 Special Order
336	WR55X10025	Sensor Temp Ff	$16.00  In-Stock Retail: $22.30
506	WR14X29199	Fresh Food Air Tower Grill	$37.00 Special Order
511	WR14X24747	Gasket Tower Ff	$12.10 Special Order
932	WR13X38305	Cover Led Top	$24.40 Special Order
