GE PWE23KSKFSS Parts List

Popular Searches: (Click to search)    asm  def  defrost  filter  heater  refer  rfid  sensor  temperature  thermostat  water


Select a Diagram

Case Parts

Freezer Door

Freezer Section

Freezer Shelves

Fresh Food Door - Lh

Fresh Food Door - Rh

Fresh Food Section

Fresh Food Shelves

Machine Compartment

Select Diagram ... Case Parts Freezer Door Freezer Section Freezer Shelves Fresh Food Door - Lh Fresh Food Door - Rh Fresh Food Section Fresh Food Shelves Machine Compartment

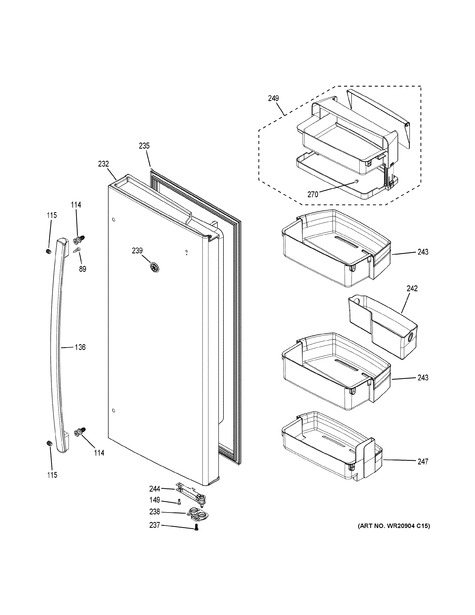

Fresh Food Door - Rh   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
89	WR01X11044	Scr 10-32 B Rns .353 S	$10.50 Special Order
114	WR01X11007	Fastener Door Handle	$10.50  In-Stock Retail: $10.22
115	WR01X11014	Set Screw	$10.50 Special Order
136	WR12X23647	Arc Handle Asm Ff	$94.60 Special Order
149	WR01X10196	Screw 8-18 Hi/lo 5/8	$10.50  In-Stock Retail: $10.22
232	WR78X26427	Door Foam Ff Rh Asm Ss	$451.30 Special Order
235	WR14X29300	Gasket Ff Dgy	$62.70  In-Stock Retail: $61.17
237	WR01X11032	Scr 10-24 Ab Rnt 20 5/8	$10.50 Special Order
238	WR02X13634	Stop Door Rh/lh Asm	$17.80 Special Order
239	WR04X10181	Badge Ge Asm	$13.10 Special Order
242	WR17X13086	Divider Gallon Bin	$55.30 Special Order
243	WR71X11044	Bin Gal Rh Ff Asm	$67.70 Special Order
244	WR11X23035	Closure Door Asm Rh	$67.20 Special Order
247	WR71X11040	Bin Cond Rh Ff Asm	$64.10 Special Order
249	WR71X11063	Bin Dairy Rh Ff Asm	$81.70 Special Order
270	WR2X8247	Plug Button Water Fill	$10.50 Special Order
