Maytag ARGS7650E (BOM: P1130758NE) Parts List

Popular Searches: (Click to search) 67`` door gasket hinge orifice oven

Select a Diagram

01 - Cabinet

02 - Cavity

03 - Control Panel And Gas Supply

04 - Main Top

05 - Miscellaeous Information

06 - Oven Door & Storage Drawer

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
1	31742701B	End Cap, Cont Pnl (lt-blk)	$25.80 Special Order
3	315851B	Overlay, Mylar Erc (blk)	$10.70 Special Order
4	Y0315569	Erc3 (gas)	Call for Availability
6	Y0061537	Shield	Call for Availability
7	316653B	Panel, Control (blk)	Call for Availability
8	31742704B	End Cap, Cont Pnl (rt-blk)	Call for Availability
9	316487B	Access Cover, Man Pnl	Call for Availability
11	Y0063997	Switch, Rocker	$9.60 Special Order
12	Y0315018	Brkt, Broil Orifice	$4.40 Special Order
13	31750116	Nut, Pal 3/4-16 X 1.062	$4.40 Special Order
14	Y0306593	Assy, Orifice & Tubing	Call for Availability
15	WP488130	Nut, Hex Keps No.8-32	$4.60 In-Stock Retail: $4.45
16	0053182	Bracket, Gas Valve	Call for Availability
17	0307065	Shelf, Gas Valve	Call for Availability
19	31716501	Burner, Oven	$30.20 Special Order
20	0303247	Inlet Pipe	Call for Availability
21	Y0303219	Fitting 1/4 Npt X 3/8 Comp	$4.40 Special Order
22	31770001	Tubing, Inlet To Manifold Rt	Call for Availability
23	Y0300684	Tubing, Inlet To Gas Valve	Call for Availability
24	0316900	Tubing, Inlet Manifold Lt	Call for Availability
25	Y0301263	Fitting, 1/8``x 3/8``	Call for Availability
26	Y0301361	Valve, Shut-off	$39.70 Special Order
27	0042303	Regulator	Call for Availability
28	Y0300685	Tubing, Oven Burner	Call for Availability
29	31750116	Nut, Pal 3/4-16 X 1.062	$4.40 Special Order
30	Y0300664	Valve, Gas	$152.40 Special Order
31	31864901	Orifice, No.58 Lp	$18.20 Special Order

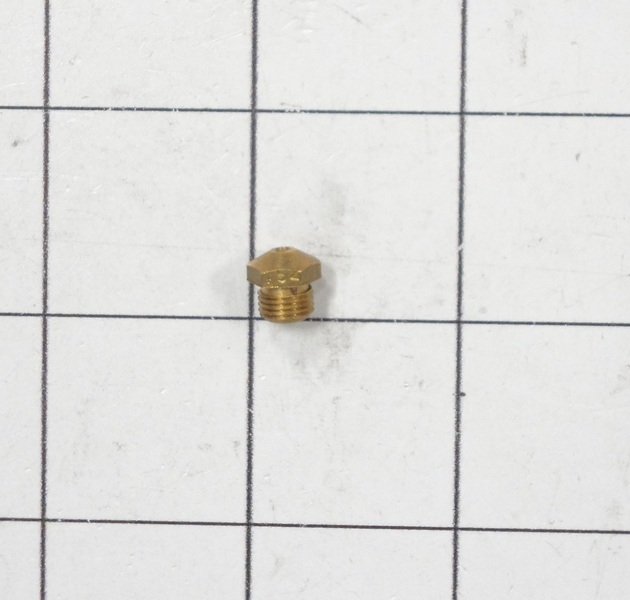

	31864801	Orifice, No.52 Nat	$30.00 Special Order
