Whirlpool CGS365HQ0 Parts List

Popular Searches: (Click to search)    almond  bottom  burner  door  grate  hand  ignitor  left  oven  paint  pressurized  rear  right  screw  sensor  side  spray  touch  trim  white


Select a Diagram

01 - Cooktop, Literature

02 - Control Panel

03 - Manifold

04 - Chassis

05 - Drawer & Broiler

06 - Door, Optional

Select Diagram ... 01 - Cooktop, Literature 02 - Control Panel 03 - Manifold 04 - Chassis 05 - Drawer & Broiler 06 - Door, Optional

01 - Cooktop, Literature   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	LIT8272363	Literature Parts (instructions, Installation)	Call for Availability
	LIT3195945	Literature Parts (installation Instr (template))	Call for Availability
	LIT8272362	Guide, Use & Care	Call for Availability
	LIT8053552	Literature Parts (tech Sheet)	Call for Availability
	LIT3191638	Safer Cooking Tips	Call for Availability
2	8053468	(cap, Burner Small (1)) (gray)	$27.90 Special Order
	8053463	Cap, Burner (large (3) (black))	$35.10 Special Order
	8053465	Cap, Burner Large (3) (gray)	$35.30  In-Stock Retail: $34.41
	8053466	Cap, Burner (small (1) (black))	Call for Availability
3	W11032529	Ignitor, Burner (right Rear) (Replaces: WP8053719 W10896683 8053719)	$40.90  In-Stock Retail: $39.90
	W11032529	Ignitor, Burner (right Front) (Replaces: 8053720)	$40.90  In-Stock Retail: $39.90
	W11032529	Ignitor, Burner (left Rear) (Replaces: W10896683 8053717)	$40.90  In-Stock Retail: $39.90

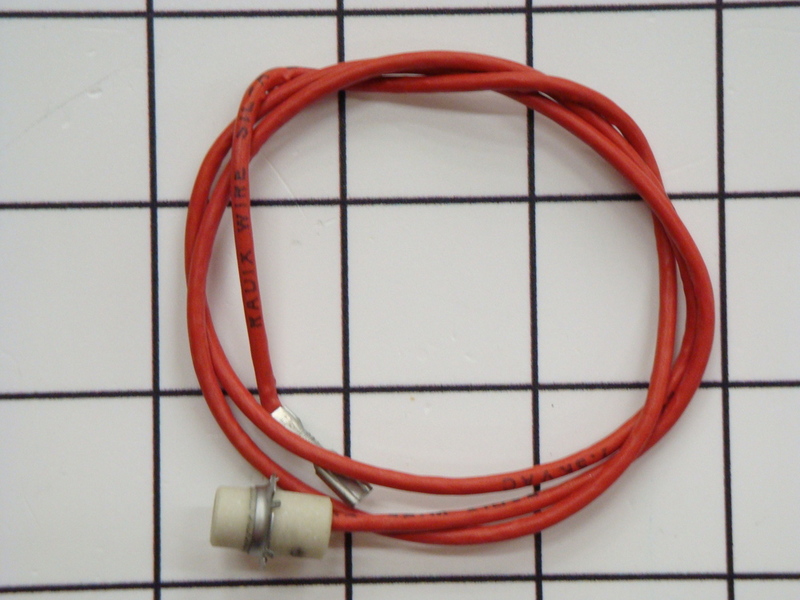

	W11087383	Ignitor, Burner (left Front) (Replaces: 8053718)	$42.50  In-Stock Retail: $41.43
4	W10858772	Burner, 6,500 Btu (rr) (Replaces: 3186478)	Call for Availability
	WP8053360	Burner, 12500 Btu (lf, Lr, Rf) (Replaces: 8053360)	$59.90  In-Stock Retail: $58.43
5	8195542	Cooktop (white)	$102.80 Special Order
	8053363	Cooktop (almond)	Call for Availability
6	8273026	Panel, Manifold (almond Model)	$70.90 Special Order
	WP8523854	Panel, Manifold (white)	$180.20 Special Order
7	WP3186135	Knob, Surface (4) (white)   (Replaces: 3186135)	$16.50  In-Stock Retail: $16.03
	3186136	Knob, Surface (4) (almond)	Call for Availability
10	3195813	Clip, Cooktop (2)	$4.40 Special Order
11	W10837340	Grate, Burner (4) (grey)   (Replaces: 8053391)	$209.20  In-Stock Retail: $204.09
	WPW10268483	Grate, Burner (4) (black) (Replaces: 8053458)	$93.00 Special Order
12	WP3195060	Hinge, Cooktop (2)	$7.70 Special Order
13	W11233072	Screw	$8.70  In-Stock Retail: $8.47
14	WP3400861	Screw (Replaces: 3400856)	$4.80  In-Stock Retail: $4.59
15	WP3196557	Screw (Replaces: 3196557)	$4.80  In-Stock Retail: $4.59
