Whirlpool CEW2790EW0 Parts List

Popular Searches: (Click to search)    assembly  belt  bracket  catch  door  drive  drum  fuse  idler  paint  pressurized  pulley  roller  seal  spray  strike  support  thermal  wheel  white


Select a Diagram

01 - Section

02 - Section

03 - Section

Select Diagram ... 01 - Section 02 - Section 03 - Section

01 - Section   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WP357213	Nut,push-in (Replaces: 357213)	$4.80  In-Stock Retail: $4.59
3	3949607	Bracket, Card Reader	Call for Availability

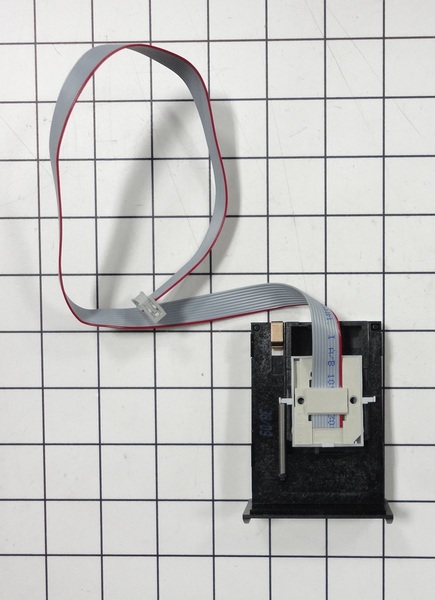

4	3949598	Card Reader	$213.00 Special Order
6	3949737	Cap, End (r.h.)	$34.60 Special Order
7	3395683	Housing, Connector (motor)	$33.80 Special Order
8	WPW10096320	Cap, End (l.h.)	$26.30 Special Order
9	3402736	Panel, Control	Call for Availability
11	3951394	Bracket, Control	$16.90 Special Order
12	WP387402	Hinge, Assembly (Replaces: 387402)	Call for Availability
14	3402826	Panel, Rear	Call for Availability
15	WPW10109200	Screw, 13-16 X 5/8	$4.80  In-Stock Retail: $4.59
16	697209	Top	Call for Availability
17	WP90767	Screw, 8a X 3/8   (Replaces: 90767)	$4.80  In-Stock Retail: $4.59
22	WP681414	Screw,10-16 X 1/2	$4.80 Special Order
23	3950772	Switch, Membrane	$85.80 Special Order
24	WP717253	Receptacle (2-way)	$4.50 Special Order
25	3950773	Backer Plate	$64.60 Special Order
26	3950774	Mounting Stud	$13.40 Special Order
27	3950775	Backer Plate (side)	$47.90 Special Order
28	WP8566493	Relay, Power (115 Volt Ac) (Replaces: 697812)	$56.90  In-Stock Retail: $55.50
30	WP388326	Screw, Console (Replaces: 388326)	$4.80  In-Stock Retail: $4.59
31	3402746	Harness, Wiring	$85.30 Special Order
34	WP689559	Nut, Push-in	$4.80 Special Order
36	690853	Wire, Ground	$32.00 Special Order
39	W10113937	Clip, Ground	$7.00  In-Stock Retail: $6.82
40	3402740	Board, Control	$295.80 Special Order
41	WPW10366705	Screw & Washer	$4.80 Special Order
42	686770	Protector Support	$7.90 Special Order
49	3402742	Harness, Console	$58.80 Special Order
53	3950779	Bezel, Display	$5.50 Special Order
54	3950778	Display, Eletronic (includes Item 61)	$171.80 Special Order
57	WP488729	Screw, Hex Head Washer	$4.80  In-Stock Retail: $4.59
61	3406407	Vfd Cable	$48.30 Special Order
64	WP3394427	Clip, Harness	$4.80 Special Order
65	342529	Plug (4-way)	Call for Availability
66	717252	Receptacle, 2 Way	$4.40 Special Order
