Maytag AGR6603SFW1 Parts List

Popular Searches: (Click to search)    2oz  bake  black  bottom  door  electrode  front  left  paint  pressurized  rear  right  screw  sensor  side  spray  touch  trim  valve  white


Select a Diagram

02 - Cooktop Parts

03 - Control Panel Parts

04 - Manifold Parts

05 - Chassis Parts

06 - Drawer And Broiler Parts

07 - Door Parts

08 - Optional Parts (not Included)

01 - Cover Sheet

Select Diagram ... 02 - Cooktop Parts 03 - Control Panel Parts 04 - Manifold Parts 05 - Chassis Parts 06 - Drawer And Broiler Parts 07 - Door Parts 08 - Optional Parts (not Included) 01 - Cover Sheet

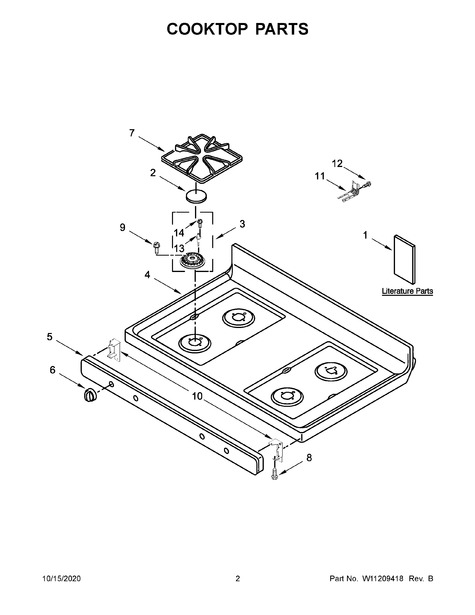

02 - Cooktop Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W11177375	Installation Instructions	Call for Availability
1A	W11122565	Guide, Use & Care	Call for Availability
1B	W10873899	Tech Sheet	Call for Availability
1C	W10873901	Wiring Diagram	Call for Availability
2	WPW10183375	Set, Burner Cap (black) (Replaces: W10183375)	$93.00  In-Stock Retail: $90.64
3	WPW10515455	Assembly, Burner (17.5k) (left Front, Right Front) (Replaces: W10515455)	$86.10  In-Stock Retail: $83.92
3A	WPW10515454	Assembly, Burner (9.5k) (left Rear) (Replaces: W10515454)	$72.10  In-Stock Retail: $70.34
3B	WPW10515453	Assembly, Burner (6k) (right Rear) (Replaces: W10515453)	$64.10  In-Stock Retail: $62.46
4	W11213958	Cooktop (black)	$231.80 Special Order
4A	W11213959	Cooktop (white)	$231.80  In-Stock Retail: $226.09
5	8523855	Panel, Manifold (black)	$100.10 Special Order
5A	WP8523854	Panel, Manifold (white)	$164.30 Special Order
6	W11117407	Knob, Control (black)	$45.40  In-Stock Retail: $44.23
6A	W10844794	Knob, Control (white)	$14.70 Special Order
7	W10915784	Grate Kit (black)	$234.20 Special Order
8	WP3368921	Screw (Replaces: 3400701)	$1.30  In-Stock Retail: $1.24
9	WP3196557	Screw (Replaces: 3196557)	$4.80 Special Order
10	8523249	Bracket, Manifold	$47.10 Special Order
11	W11447673	Bracket, Anti-tip	$18.00  In-Stock Retail: $17.49
12	WP7101P485-60	Screw, Anti-tip Kit	$19.40 Special Order
13	WPW10515459	Electrode (left Front, Right Front, Left Rear)	$27.30  In-Stock Retail: $26.60
13A	WPW10515459	Electrode (right Rear) (Replaces: W10515459)	$27.30  In-Stock Retail: $26.60
14	WP8273062	Screw (Replaces: 8273062)	$4.80  In-Stock Retail: $4.59
NI	W10841090	Clamp, Wire	$4.60 Special Order
	W10809927	Harness, Cooktop	$99.90  In-Stock Retail: $97.42
	W11161843	Harness, Bake/broil   (Replaces: W10753750)	$135.00  In-Stock Retail: $131.61
	W10842520	Harness, Main	$107.20 Special Order
	N/P	Following Parts Not Illustrated	Call for Availability
	3400964	Clip, Wire	$53.00 Special Order
	W10334923	Clip, Gas Wiring	$7.20 Special Order
	16515	Clip, Harness	$12.20 Special Order
	3196896	Clip, Wire	$7.60 Special Order
